Improved Offset Voltage Stability of 4H-SiC CMOS Operational Amplifier by Increasing Gamma Irradiation Resistance

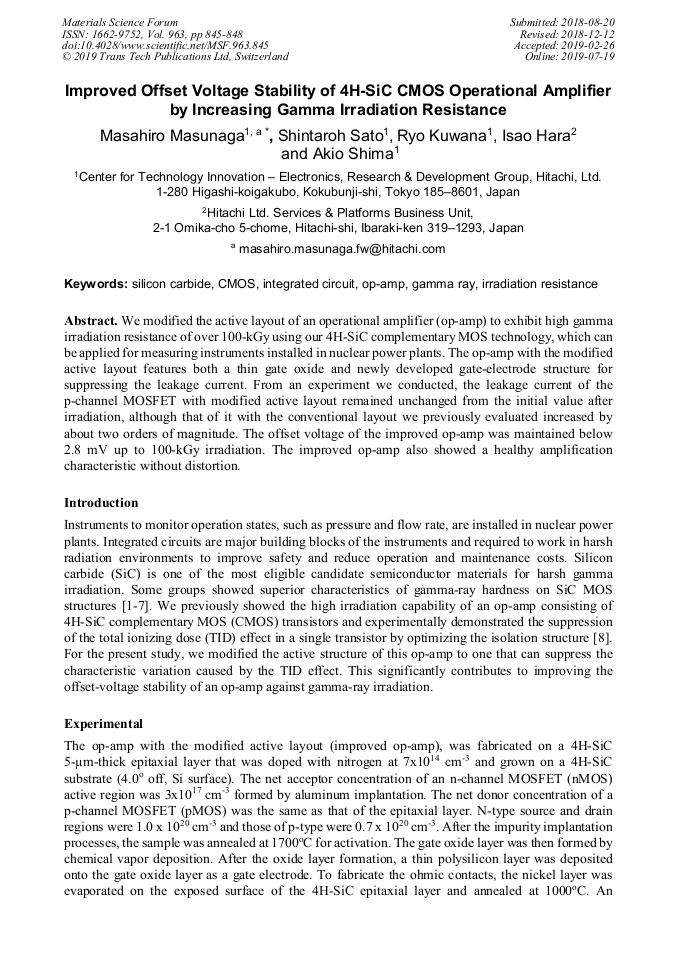

Article Preview

Abstract:

We modified the active layout of an operational amplifier (op-amp) to exhibit high gamma irradiation resistance of over 100-kGy using our 4H-SiC complementary MOS technology, which can be applied for measuring instruments installed in nuclear power plants. The op-amp with the modified active layout features both a thin gate oxide and newly developed gate-electrode structure for suppressing the leakage current. From an experiment we conducted, the leakage current of the p-channel MOSFET with modified active layout remained unchanged from the initial value after irradiation, although that of it with the conventional layout we previously evaluated increased by about two orders of magnitude. The offset voltage of the improved op-amp was maintained below 2.8 mV up to 100-kGy irradiation. The improved op-amp also showed a healthy amplification characteristic without distortion.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

845-848

Citation:

Online since:

July 2019

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2019 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] T. Chen, Z. Luo, J. D. Cressler, T. F. Isaacs-Smith, J. R. Williams, G. Chung, and S. D. Clark, The effects of NO passivation on the radiation response of SiO2/4H-SiC MOS capacitors. , Solid-State Electronics, vol. 46, no. 12, p.2231–2235, Dec. (2002).

DOI: 10.1016/s0038-1101(02)00236-8

Google Scholar

[2] M. Yoshikawa, H. Itoh, Y. Morita, I. Nashiyama, S. Misawa, H. Okumura, and S. Yoshida, Effects of gamma‐ray irradiation on cubic silicon carbide metal‐oxide‐semiconductor structure., Journal of Applied Physics, vol. 70, no. 3, p.1309–1312, Aug. (1991).

DOI: 10.1063/1.349587

Google Scholar

[3] T. Ohshima, M. Yoshikawa, H. Itoh, Y. Aoki, and I. Nashiyama, Generation of interface traps and oxide-trapped charge in 6H-SiC metal-oxide-semiconductor transistors by gamma-ray irradiation., Japanese Journal of Applied Physics, vol. 37, no. 8B, pp. L1002–L1004, Aug. (1998).

DOI: 10.1143/jjap.37.l1002

Google Scholar

[4] T. Ohshima, T. Yokoseki, K. Murata, T. Matsuda, S. Mitomo, H. Abe, T. Makino, S. Onoda, Y. Hijikata, Y. Tanaka, M. Kandori, S. Okubo, and T. Yoshie, Radiation response of silicon carbide metal–oxide–semiconductor transistors in high dose region., Japanese Journal of Applied Physics, vol. 55. no. 1S, pp. 01AD01–1–01AD01–4, Oct. (2015).

DOI: 10.7567/jjap.55.01ad01

Google Scholar

[5] K. K. Lee, T. Ohshima, and H. Itoh, Performance of gamma irradiated P-channel 6H-SiC MOSFETs: High total dose., IEEE Transactions on Nuclear Science, vol. 50, no. 1, p.194–200, Feb. (2003).

DOI: 10.1109/tns.2002.807853

Google Scholar

[6] T. Ohshima, H. Itoh, and M. Yoshikawa, Effect of gamma-ray irradiation on the characteristics of 6H silicon carbide metal-oxide-semiconductor field effect transistor with hydrogen-annealed gate oxide., Journal of Applied Physics, vol. 90, no. 6, p.3038–3041, Sep. (2001).

DOI: 10.1063/1.1394895

Google Scholar

[7] S. K. Dixit, S. Dhar, J. Rozen, S. Wang, R. D. Schrimpf, D. M. Fleetwood, S. T. Pantelides, J. R. Williams, and L. C. Feldman, Total Dose Radiation Response of Nitrided and Non-nitrided SiO 2 /4H-SiC MOS Capacitors., IEEE Transactions on Nuclear Science, vol. 53, no. 6, p.3687–3692, Dec. (2006).

DOI: 10.1109/tns.2006.885164

Google Scholar

[8] M. Masunaga, S. Sato, R. Kuwana, I. Hara, and A. Shima, Electrical Characterization of the Operational Amplifier Consisting of 4H-SiC MOSFETs after Gamma Irradiation,, in Proc. ICSCRM 2017, FR_D1_2.

DOI: 10.4028/www.scientific.net/msf.924.984

Google Scholar
