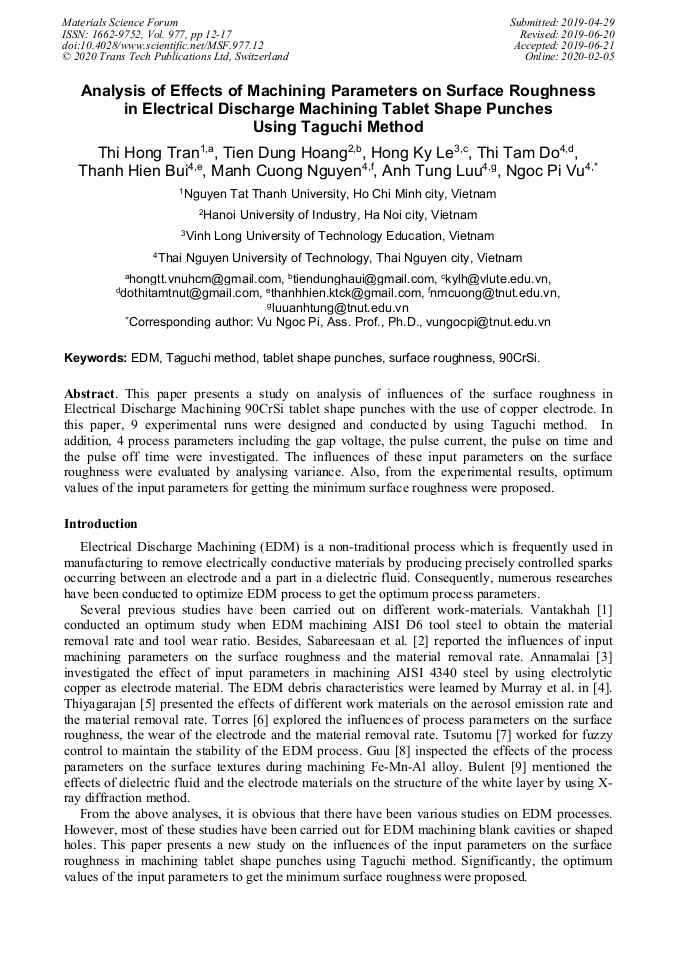

Analysis of Effects of Machining Parameters on Surface Roughness in Electrical Discharge Machining Tablet Shape Punches Using Taguchi Method

Abstract:

This paper presents a study on analysis of influences of the surface roughness in Electrical Discharge Machining 90CrSi tablet shape punches with the use of copper electrode. In this paper, 9 experimental runs were designed and conducted by using Taguchi method. In addition, 4 process parameters including the gap voltage, the pulse current, the pulse on time and the pulse off time were investigated. The influences of these input parameters on the surface roughness were evaluated by analysing variance. Also, from the experimental results, optimum values of the input parameters for getting the minimum surface roughness were proposed.

• Periodical: Materials Science Forum (Volume 977)
• Pages: 12-17
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.977.12
• Online since: February 2020
• Authors: Tran Thi Hong, Tien Dung Hoang, Le Hong Ky, Do Thi Tam, Thanh Hien Bui, Nguyen Manh Cuong, Luu Anh Tung, Vu Ngoc Pi*
• Keywords: 90CrSi, EDM, Surface Roughness, Tablet Shape Punches, Taguchi Method

References

[1] Reza Vantakhah, Hamed P Pourasl and Vahid M Khojastehnezhad, Electrical discharge machining of the AISI D6 tool steel: Prediction and modeling of the material removal rate and tool wear ratio, Precision Engineering 45 (2016) 435-4.

DOI: 10.1016/j.precisioneng.2016.01.012

[2] K J Sabareesaan, Dr R Varahamoorthi and Dr Habeeb Al Ani, Analysis of the effect of process parameters in electric discharge machining of inconel X750 using brass electrode, International Journal of Engineering Research & Technology 3 (September 2014) 1180-84.

DOI: 10.1109/icctet.2014.6966359

[3] N Annamalai, V Sivaramakrishnan, B Suresh kumar and N.Baskar, Investigation and modeling of electrical discharge machining process parameters for AISI 4340 steel, International Journal of Engineering and Technology 5 (6-2014) 4761-70.

[4] J W Murray, J Sun, D V Patil, T A Wood and A T Clare, Physical and electrical characteristics of EDM debris, Journal of Materials Processing Technology 229 (2016) 54-60.

DOI: 10.1016/j.jmatprotec.2015.09.019

[5] S Thiyagarajan, S P Sivapirakasam, Jose Mathew, M Surianarayanan and K Sundareswaran, Influence of workpiece materials on aerosol emission from die sinking electrical discharge machining process, Process Safety and Environmental Protection 92 (6-2014) 739-9.

DOI: 10.1016/j.psep.2014.01.001

[6] A Torres, I Puertas and C J Luis, Modelling of surface finish, electrode wear and material removal rate in electrical discharge machining of hard-to-machine alloys, Precision Engineering 40 (2014) 33-45.

DOI: 10.1016/j.precisioneng.2014.10.001

[7] Tsutomu Kaneko and Tomomasa Onodera, Improvement in machining performance of die-sinking EDM by using self-adjusting fuzzy control, Journal of Materials Processing Technology 149 (2004) 204–11.

DOI: 10.1016/j.jmatprotec.2004.02.006

[8] Y H Guu and Max Ti-Kuang Hou, Effect of machining parameters on surface textures in EDM of Fe-Mn-Al alloy, Materials Science and Engineering A 466 (2007) 61–67.

DOI: 10.1016/j.msea.2007.02.035

[9] Bulent Ekmekci, Residual stresses and white layer in electric discharge machining (EDM), Applied Surface Science 253 (2007) 9234–40.

DOI: 10.1016/j.apsusc.2007.05.078
