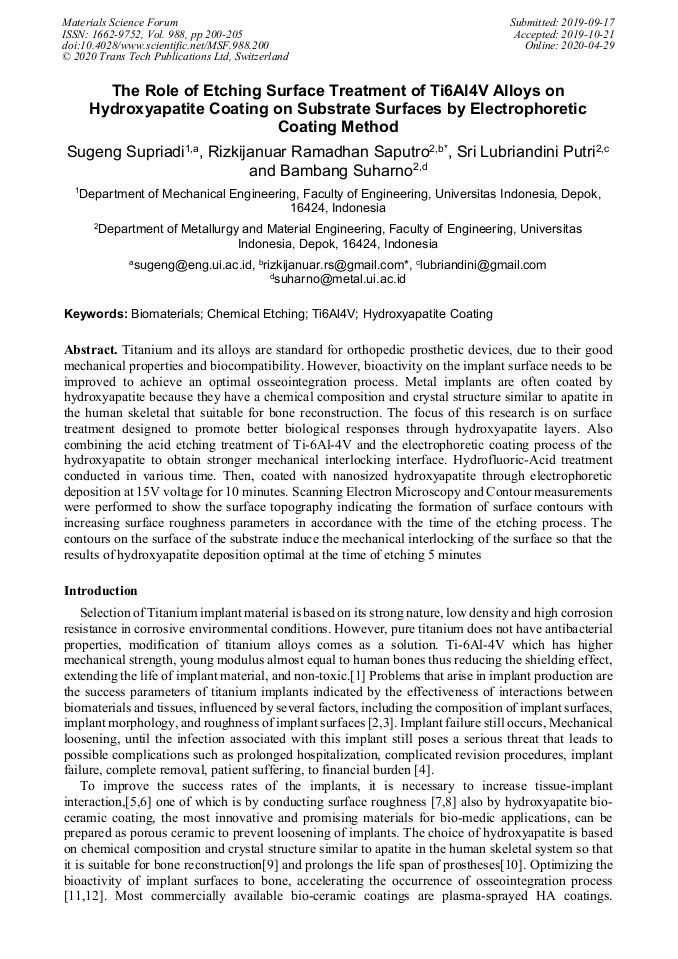

The Role of Etching Surface Treatment of Ti6Al4V Alloys on Hydroxyapatite Coating on Substrate Surfaces by Electrophoretic Coating Method

Abstract:

Titanium and its alloys are standard for orthopedic prosthetic devices, due to their good mechanical properties and biocompatibility. However, bioactivity on the implant surface needs to be improved to achieve an optimal osseointegration process. Metal implants are often coated by hydroxyapatite because they have a chemical composition and crystal structure similar to apatite in the human skeletal that suitable for bone reconstruction. The focus of this research is on surface treatment designed to promote better biological responses through hydroxyapatite layers. Also combining the acid etching treatment of Ti-6Al-4V and the electrophoretic coating process of the hydroxyapatite to obtain stronger mechanical interlocking interface. Hydrofluoric-Acid treatment conducted in various time. Then, coated with nanosized hydroxyapatite through electrophoretic deposition at 15V voltage for 10 minutes. Scanning Electron Microscopy and Contour measurements were performed to show the surface topography indicating the formation of surface contours with increasing surface roughness parameters in accordance with the time of the etching process. The contours on the surface of the substrate induce the mechanical interlocking of the surface so that the results of hydroxyapatite deposition optimal at the time of etching 5 minutes

• Periodical: Materials Science Forum (Volume 988)
• Pages: 200-205
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.988.200
• Online since: April 2020
• Authors: Sugeng Supriadi, Rizkijanuar Ramadhan Saputro*, Sri Lubriandini Putri, Bambang Suharno
• Keywords: Biomaterials, Chemical Etching, Hydroxyapatite Coating, Ti6Al4V

References

[1] Elias, C.N., Lima, J.H.C., Valiev, R., and Meyers M A, Biomedical applications of titanium and its alloys, Biological Materials Science J. Biol. Mater. Sci. 60 (2008) 46–49.

DOI: 10.1007/s11837-008-0031-1

[2] Nestler K, Böttger-Hiller F, Adamitzki W, Glowa G, Zeidler H and Schubert, A Plasma Electrolytic Polishing - An Overview of Applied Technologies and Current Challenges to Extend the Polishable Material Range, Procedia CIRP 42 (2016) 503–507.

DOI: 10.1016/j.procir.2016.02.240

[3] Kreshanti P, Tunjung N, Dionisius A, Supriadi S and Whulanza Y The usability of locally-made miniplate and screw compared to the existing imported miniplate and screw, AIP Conf. Proc. 2092 (2019) 1-8.

DOI: 10.1063/1.5096700

[4] Anagnostakos K, Schmid N V, Kelm J, Grün U and Jung J, Classification of hip joint infections. Int. J. Med. Sci. 6 (2009) 227–233.

DOI: 10.7150/ijms.6.227

[5] Qosim N, Supriadi S, Saragih A S and Whulanza Y, Surface treatments of ti-alloy based bone implant manufactured by electrical discharge machining, Ing. y Univ. 22 (2018) 1-12.

DOI: 10.11144/javeriana.iyu22-2.sttb

[6] Qosim N, Supriadi S, Istiyanto J, Saragih A S and Whulanza Y, Surface characteristics of Ti6Al4V-EDM implant engineered by PVD coated-etching and Acidithiobacillus ferrooxidans based-biomachining AIP Conf. Proc. 2008 (2018) 5–10.

DOI: 10.1063/1.5051974

[7] Zahran R, Rosales Leal J I, Rodríguez Valverde M A and Cabrerizo Vílchez M A, Effect of hydrofluoric acid etching time on titanium topography, chemistry, wettability, and cell adhesion PLoS One 11 (2016) 1–12.

DOI: 10.1371/journal.pone.0165296

[8] Qosim N, Supriadi S, Puspitasari P and Kreshanti P, Mechanical Surface Treatments of Ti-6Al-4V Miniplate Implant Manufactured by Electrical Discharge Machining Int. J. Eng. 31(2018)1103-1108.

DOI: 10.5829/ije.2018.31.07a.14

[9] Yoon W-J, Kim S-G, Oh J-S, You J-S, Jeong K-I, Lim S-C and Jeong M-A, Comparative study on the osseointegration of implants in dog mandibles according to the implant surface treatment J. Korean Assoc. Oral Maxillofac. Surg. 42 (2017) 345.

DOI: 10.5125/jkaoms.2016.42.6.345

[10] Asri R I M, Harun W S W, Hassan M A, Ghani S A C and Buyong Z, A review of hydroxyapatite-based coating techniques: Sol-gel and electrochemical depositions on biocompatible metals J. Mech. Behav. Biomed. Mater. 57 (2016) 95–108.

DOI: 10.1016/j.jmbbm.2015.11.031

[11] Fathi M H, Hanifi A and Mortazavi V, Preparation and bioactivity evaluation of bone-like hydroxyapatite nanopowder J. Mater. Process. Technol. 202 (2008) 536–42.

DOI: 10.1016/j.jmatprotec.2007.10.004

[12] Oldani C and Dominguez A, Titanium as a Biomaterial for Implants Recent Adv. Arthroplast. 1 (2012 ) 149–62.

[13] Lei Z, Zhang H, Zhang E, You J, Ma X and Bai X, Antibacterial activities and biocompatibilities of Ti-Ag alloys prepared by spark plasma sintering and acid etching Mater. Sci. Eng. C 92 (2018) 121–131.

DOI: 10.1016/j.msec.2018.06.024

[14] Korotin D M, Bartkowski S, Kurmaev E Z, Meumann M, Yakushina E B, Valiev R Z and Cholakh S O, Surface Characterization of Titanium Implants Treated in Hydrofluoric Acid J. Biomater. Nanobiotechnol. 03 (2012) 87–91.

DOI: 10.4236/jbnb.2012.31011

[15] Drevet R, Ben Jaber N, Fauré J, Tara A, Ben Cheikh Larbi A and Benhayoune H, Electrophoretic deposition (EPD) of nano-hydroxyapatite coatings with improved mechanical properties on prosthetic Ti6Al4V substrates Surf. Coatings Technol. 301 (2016) 94–99.

DOI: 10.1016/j.surfcoat.2015.12.058

[16] B, Yao Y, Chan X, Zhang W, Zhang Z, Yang and Wang, Formation mechanism of TiO2 nanotubes, Appl. Phys. Lett. 82 (2003) 785–788.

[17] Hung K Y, Lin Y C and Feng H P, The effects of acid etching on the nanomorphological surface characteristics and activation energy of titanium medical materials Materials (Basel). 10 (2017) 1-4.

DOI: 10.3390/ma10101164
