Microstructural Evolution and Properties of Cu-1.5 Wt %Ti Alloy during Aging

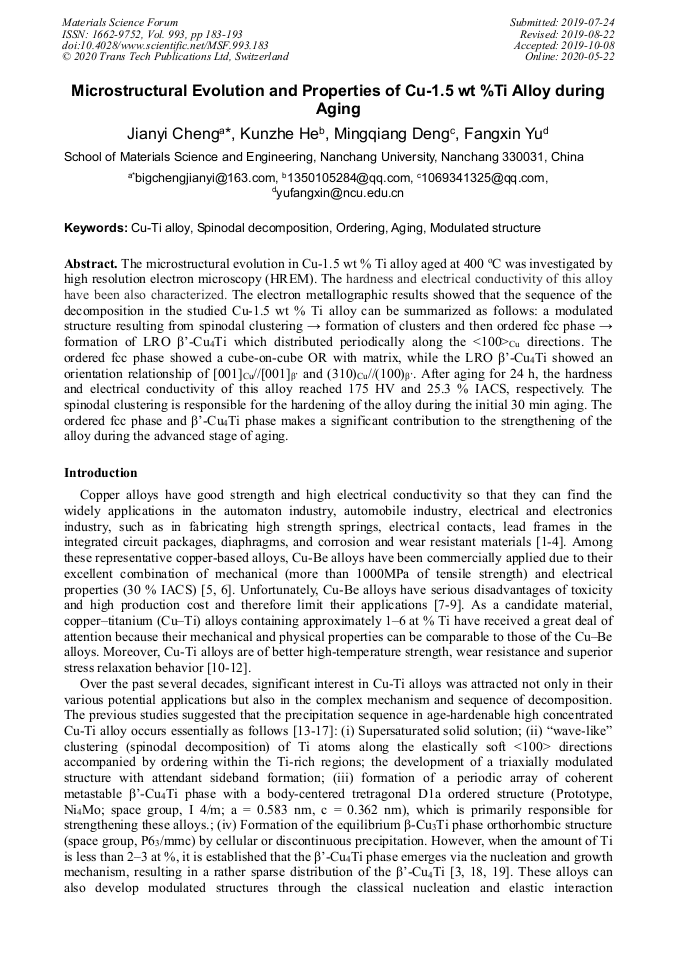

Article Preview

Abstract:

The microstructural evolution in Cu-1.5 wt % Ti alloy aged at 400 °C was investigated by high resolution electron microscopy (HREM). The hardness and electrical conductivity of this alloy have been also characterized. The electron metallographic results showed that the sequence of the decomposition in the studied Cu-1.5 wt % Ti alloy can be summarized as follows: a modulated structure resulting from spinodal clustering → formation of clusters and then ordered fcc phase → formation of LRO β’-Cu4Ti which distributed periodically along the <100>Cu directions. The ordered fcc phase showed a cube-on-cube OR with matrix, while the LRO β’-Cu4Ti showed an orientation relationship of [001]Cu//[001]β’ and (310)Cu//(100)β’. After aging for 24 h, the hardness and electrical conductivity of this alloy reached 175 HV and 25.3 % IACS, respectively. The spinodal clustering is responsible for the hardening of the alloy during the initial 30 min aging. The ordered fcc phase and β’-Cu4Ti phase makes a significant contribution to the strengthening of the alloy during the advanced stage of aging.

You might also be interested in these eBooks
Functional and Functionally Structured Materials IV View Preview

Info:

Periodical:

Materials Science Forum (Volume 993)

Pages:

183-193

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.993.183

Citation:

Cite this paper

Online since:

May 2020

Authors:

Jian Yi Cheng*, Kun Zhe He, Ming Qiang Deng, Fang Xin Yu

Keywords:

Aging, Cu-Ti Alloy, Modulated Structure, Ordering, Spinodal Decomposition

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2020 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] I.S. Batra, G.K. Dey, U.D. Kulkarni, S. Banerjee, On the sequence of clustering and ordering in a meltspun Cu-Ti alloy, Mater. Sci. Eng. A 360 (2003) 220-227.

DOI: 10.1016/s0921-5093(03)00440-4

Google Scholar

[2] S. Semboshi, T. Takasugi, Fabrication of high-strength and high-conductivity Cu–Ti alloy wire by aging in a hydrogen atmosphere, J. Alloy. Compd. 580 (2013) S397–S400.

DOI: 10.1016/j.jallcom.2013.03.216

Google Scholar

[3] T.J. Konno, R. Nishio, S. Semboshi, T. Ohsuna, E. Okunishi, Aging behavior of Cu–Ti–Al alloy observed by transmission electron microscopy, J. Mater. Sci. 43 (2008) 3761–3768.

DOI: 10.1007/s10853-007-2233-2

Google Scholar

[4] I.S. Batra, A. Laik, G.B. Kale, G.K. Dey, U.D. Kulkarni, Microstructure and properties of a Cu–Ti–Co alloy, Mater. Sci. Eng. A 402 (2005) 118–125.

DOI: 10.1016/j.msea.2005.04.015

Google Scholar

[5] P.J. Rioja, D.E. Laughlin, The sequence of precipitation in Cu-2 wt % Be alloys, Acta Metall. 28 (1980) 1301–1313.

DOI: 10.1016/0001-6160(80)90086-3

Google Scholar

[6] S. Semboshi, Effect of aging in hydrogen atmosphere on electrical conductivity of Cu–3 at. % Ti alloy, J Mater. Res. 23 (2008) 473-477.

DOI: 10.1557/jmr.2008.0050

Google Scholar

[7] R. Mar.kandeya, S. Nagarjuna, D.S. Sarma, Precipitation hardening of Cu–Ti–Zr alloys, Mater. Sci. Technol. 20 (2004) 849-858.

DOI: 10.1179/026708304225017409

Google Scholar

[8] S. Semboshi, T. Al-Kassab, R. Gemma, R. Kirchheim, Microstructural evolution of Cu-1 at % Ti alloy aged in a hydrogen atmosphere and its relation with the electrical conductivity, Ultramicroscopy 109 (2009) 593–598.

DOI: 10.1016/j.ultramic.2008.10.015

Google Scholar

[9] A. Kamegawa, T. Iwaki, M. Okada, Simultaneous enhancement of electrical conductivities and mechanical properties in Cu-Ti Alloy by hydrogenation process, Mater. Sci. Forum 654-656 (2010) 1319-1322.

DOI: 10.4028/www.scientific.net/msf.654-656.1319

Google Scholar

[10] S. Nagarjuna, M. Srinvivas, K. Balasubraman, D.S. Sarma, On the variation of mechanical properties with solute content in Cu–Ti alloys, Mater. Sci. Eng. A 259 (1999) 34-42.

DOI: 10.1016/s0921-5093(98)00882-x

Google Scholar

[11] W.A. Soffa, D.E. Laughlin, High-strength age hardening copper–titanium alloys, Prog. Mater. Sci. 49 (2004) 347-366.

DOI: 10.1016/s0079-6425(03)00029-x

Google Scholar

[12] S. Nagarjuna, M. Srinvivas, Elevated temperature tensile behavior of a Cu–4.5Ti alloy, Mater. Sci. Eng. A 406 (2005) 186-194.

Google Scholar

[13] A. Datta, W.A. Soffa, The structure and properties of age hardened Cu–Ti alloys, Acta Metall. 24 (1976) 987–1001.

DOI: 10.1016/0001-6160(76)90129-2

Google Scholar

[14] D.E. Laughlin, J.W. Cahn, Spinodal decomposition in aged hardening copper–titanium alloys, Acta Metall. 23 (1975) 329–339.

DOI: 10.1016/0001-6160(75)90125-x

Google Scholar

[15] M.J. Richards, J.W. Cahn, Pairwise interactions and the ground state of ordered binary alloy, Acta Metall. 9 (1971) 1263–1277.

DOI: 10.1016/0001-6160(71)90060-5

Google Scholar

[16] L.A. Nesbit, D.E. Laughlin, Ordering in an off-stoichiometric Ni–Mo alloy, Acta Metall. 26 (1978) 815–825.

DOI: 10.1016/0001-6160(78)90031-7

Google Scholar

[17] W.A. Soffa, D.E. Laughlin, Decomposition and ordering processes involving thermodynamically first-order order–disorder transformations, Acta Metall. 37 (1989) 3019–3028.

DOI: 10.1016/0001-6160(89)90338-6

Google Scholar

[18] C. Borchers, Catastrophic nucleation during decomposition of Cu-0.9 at. % Ti, Phil. Mag. A 79 (1999) 537-547.

DOI: 10.1080/01418619908210315

Google Scholar

[19] R. Kinghts, P. Wilkes, The precipitation of titanium in copper and copper-nickel base alloys, Acta Metall. 21 (1973) 1503-1514.

DOI: 10.1016/0001-6160(73)90180-6

Google Scholar

[20] A.J. Ardell, R.B. Nicholson, J.D. Eshelby, On the modulated structure of aged Ni-Al alloys: with an appendix on the elastic interaction between inclusions by J. D. Eshelby, Acta Metall. 14 (1966) 1295-1309.

DOI: 10.1016/0001-6160(66)90247-1

Google Scholar

[21] C.G. Woychik, R.J. Rioja, T.B. Massalski, D.E. Laughlin, Decomposition of Rapidly Solidified Cu-Ti Solid Solutions, Metall. Trans. A 16 (1985) 1353-1354.

DOI: 10.1007/bf02670339

Google Scholar

[22] D. de Fontaine, K-Space Symmetry Rules for Order-Disorder Reactions, Acta Metall. 23 (1975) 553-571.

DOI: 10.1016/0001-6160(75)90096-6

Google Scholar

[23] D.H. Ben Israel, M.E. Fine, Precipitation studies in Ni-10 at. % Ti, Acta Metall. 1l (1963) 1051-1059.

DOI: 10.1016/0001-6160(63)90193-7

Google Scholar

[24] D.E. Laughlin, Spinodal decomposition in Nickel based Nickel-Titanium alloys, Acta Metall. 24 (1976) 53-58.

DOI: 10.1016/0001-6160(76)90146-2

Google Scholar

[25] A.G. Khachaturyan, T.F. Lindsey, J.W. Morris, Theoretical investigation of the precipitation of δ' in Al-Li, Metall. Trans. A 19 (1988) 249-258.

Google Scholar

[26] U.D. Kulkarni, G.K. Dey, I.S. Batra, A new face-centered-cubic superlattice structure in rapidly solidified Cu-4 wt pct Ti alloy and its relevance to the ordering process in Ni-Mo and other 11/20 ordering alloys, Metall. Mater. Trans. A 33 (2002) 3573-3576.

DOI: 10.1007/s11661-002-0346-4

Google Scholar

[27] U.D. Kulkarni, G.K. Dey, Ordering and topologically close packed-phase precipitation in a Ni–25 at. % Mo–5 at. %Al alloy, Acta Mater. 52 (2004) 2711–2720.

DOI: 10.1016/j.actamat.2004.02.019

Google Scholar

[28] S. Hata, D. Shindob, T. Mitatea, N. Kuwanoa, S. Matsumurac, K. Okia, HRTEM image contrast of short range order in Ni4Mo, Micron 31 (2000) 533–538.

DOI: 10.1016/s0968-4328(99)00134-1

Google Scholar

[29] H.M. Tawancy, Long-range ordering behaviour and mechanical properties of Ni-Mo-based alloys, J. Mater. Sci. 30 (1995) 522-537.

DOI: 10.1007/bf00354421

Google Scholar

[30] S. Hata, S. Matsumura, N. Kuwano, K. Oki, D. Shindo, Short range order in Ni4Mo and its high resolution electron microscope images, Acta Mater. 46 (1998) 4955-4961.

DOI: 10.1016/s1359-6454(98)00180-3

Google Scholar

[31] E.S.K. Menon, P.L. Martin, Microstructure of melt-spun Ni-Mo-Al, Scr. Metall. Mater. 27 (1992) 55-60.

DOI: 10.1016/0956-716x(92)90319-a

Google Scholar

[32] T. Sato, Y. Kojima, T. Takahashi, Modulated Structures and GP Zones in Al-Mg Alloys, Metall. Trans. A 13 (1982) 1373-1378.

DOI: 10.1007/bf02642874

Google Scholar

[33] J.W. Cahn, Hardening by spinodal decomposition, Acta Metall. 11 (1963) 1275-1280.

Google Scholar
