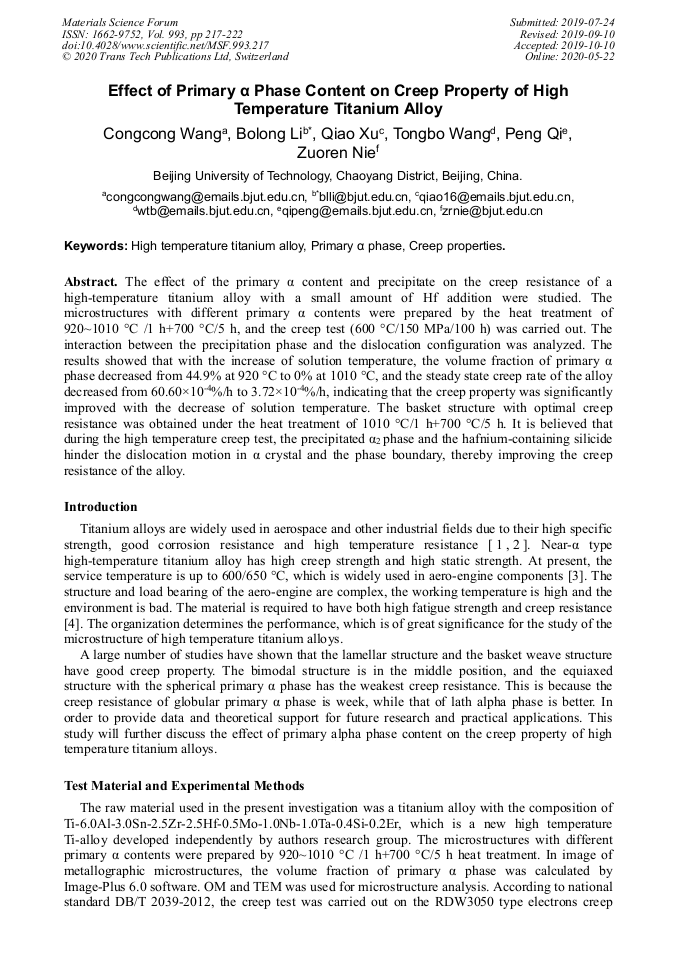

Effect of Primary α Phase Content on Creep Property of High Temperature Titanium Alloy

Abstract:

The effect of the primary α content and precipitate on the creep resistance of a high-temperature titanium alloy with a small amount of Hf addition were studied. The microstructures with different primary α contents were prepared by the heat treatment of 920~1010 °C /1 h+700 °C/5 h, and the creep test (600 °C/150 MPa/100 h) was carried out. The interaction between the precipitation phase and the dislocation configuration was analyzed. The results showed that with the increase of solution temperature, the volume fraction of primary α phase decreased from 44.9% at 920 °C to 0% at 1010 °C, and the steady state creep rate of the alloy decreased from 60.60×10^-4%/h to 3.72×10^-4%/h, indicating that the creep property was significantly improved with the decrease of solution temperature. The basket structure with optimal creep resistance was obtained under the heat treatment of 1010 °C/1 h+700 °C/5 h. It is believed that during the high temperature creep test, the precipitated α₂ phase and the hafnium-containing silicide hinder the dislocation motion in α crystal and the phase boundary, thereby improving the creep resistance of the alloy.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 217-222
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.217
• Online since: May 2020
• Authors: Cong Cong Wang, Bo Long Li*, Xu Qiao, Tong Bo Wang, Peng Qi, Zuo-Ren Nie
• Keywords: Creep Properties, High Temperature Titanium Alloy, Primary α Phase

References

[1] P.L. Narayana, Seong-WoongKim. Effect of heat treatment on the crystallographic orientation evolution in a near-α titanium alloy Ti60, J. Acta Materialia, 131 (2018)305-314.

DOI: 10.1016/j.actamat.2017.04.007

[2] Y.B. Chun, M.Battaini, C.H.J. Davies, S. K. Hwang. Distribution characteristics of in-grain misorientation axes in cold-rolled commercially pure titanium and their correlation with active slip modes Metal. Mater. Trans. A. 41 (13) (2010), pp.3473-3487.

DOI: 10.1007/s11661-010-0410-4

[3] Z. Huda, P. Edi. Materials selection in design of structures and engines of supersonic aircrafts: a review Mater. Des. 46 (2013), pp.552-560.

DOI: 10.1016/j.matdes.2012.10.001

[4] Xiaolong Liu, Chengqi Sun, Youshi Hong. Faceted crack initiation characteristics for high-cycle and very-high-cycle fatigue of a titanium alloy under different stress ratios, J. International Journal of Fatigue, 92(2016) 434-441.

DOI: 10.1016/j.ijfatigue.2016.03.013

[5] L Ponsonnet,C Quesne,R Penelle.Microstructure and creep deformation of a near beta titanium alloy β-CEZ, [J]. Materials Science and Engineering A,262 (1999) 50-63.

DOI: 10.1016/s0921-5093(98)01016-8

[6] H Mishra,P Ghosal, T.K Nandy.Influence of Fe and Ni on creep of near α-Ti alloy IMI834, J.Materials Science and Engineering,A,399 (2005) 222-231.

DOI: 10.1016/j.msea.2005.03.027

[7] XU Dong-sheng,HU Qing-miao,LU Jian-min,HAO Yu-lin,YANG Rui,KULKOVA S E,BAZHANOV D I.Point defects and mechanical behavior of titanium alloys and intermetallic compounds, C. Third Conference of the Asian Consortium for Computational Materials Science(ACCMS-3). (2006) 220-227.

DOI: 10.1088/1742-6596/29/1/042

[8] KOIKE J, EGASHIRA K, MARUYAMA K, OIKAWA H. High temperature strength of α Ti-Al alloys with a locally ordered structure, J.Materials Science and Engineering A, 213 (1996) 98-102.

DOI: 10.1016/0921-5093(96)10227-6
