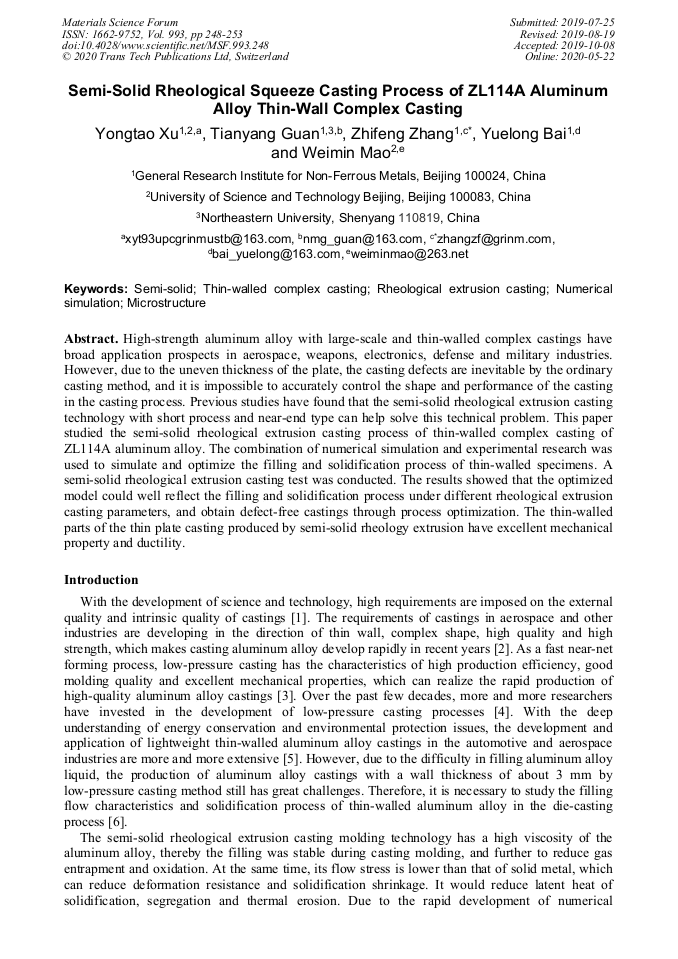

Semi-Solid Rheological Squeeze Casting Process of ZL114A Aluminum Alloy Thin-Wall Complex Casting

Abstract:

High-strength aluminum alloy with large-scale and thin-walled complex castings have broad application prospects in aerospace, weapons, electronics, defense and military industries. However, due to the uneven thickness of the plate, the casting defects are inevitable by the ordinary casting method, and it is impossible to accurately control the shape and performance of the casting in the casting process. Previous studies have found that the semi-solid rheological extrusion casting technology with short process and near-end type can help solve this technical problem. Therefore, this paper studies the semi-solid rheological extrusion casting process of thin-walled complex casting of ZL114A aluminum alloy. The combination of numerical simulation and experimental research is used to simulate and optimize the filling and solidification process of thin-walled specimens. Based on this, a semi-solid rheological extrusion casting test was conducted. The result showed that, (1) The optimized model can well reflect the filling and solidification process under different rheological extrusion casting parameters, and obtain defect-free castings through process optimization. (2) The thin-walled parts of the thin plate casting produced by semi-solid rheology extrusion have excellent mechanical property and ductility.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 248-253
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.248
• Online since: May 2020
• Authors: Yong Tao Xu, Tian Yang Guan, Zhi Feng Zhang*, Yue Long Bai, Wei Min Mao
• Keywords: Microstructure, Numerical Simulation, Rheological Extrusion Casting, Semi-Solid, Thin-Walled Complex Casting

References

[1] H. He, L. Wang, Y. Huang, Applicationoflow pressurecastinginAl-Sishellcastingparts, Mechanical & Electrical Engineering Magazine 26 (2009) 108-110.

[2] L. Zhang, L. Li, B. Zhu, Simulation Study on the LPDC Process for Thin-Walled Aluminum Alloy Casting, Materials and Manufacturing Processes 24 (2009) 1349-1353.

DOI: 10.1080/10426910902997159

[3] A. Mitrasinovic, F.C. Robles Hernández, M. Djurdjevic, et al., On-line prediction of the melt hydrogen and casting porosity level in 319 aluminum alloy using thermal analysis, Materials Science and Engineering: A 428 (2006) 41-46.

DOI: 10.1016/j.msea.2006.04.084

[4] B. Zhang, D.M. Maijer, S.L. Cockcroft, Development of a 3-D thermal model of the low-pressure die-cast (LPDC) process of A356 aluminum alloy wheels, Materials Science and Engineering: A 464 (2007) 295-305.

DOI: 10.1016/j.msea.2007.02.018

[5] P. Fu, A.A. Luo, H. Jiang, et al., Low-pressure die casting of magnesium alloy AM50: Response to process parameters, Journal of Materials Processing Technology 205 (2008) 224-234.

DOI: 10.1016/j.jmatprotec.2007.11.111

[6] B. Zhu, L. Li, X. Liu, et al., Flow characteristics and solidified microstructure during filling process of thin-wall aluminum alloy under high pressure die casting conditions, The Chinese Journal of Nonferrous Metals 24 (2014) 43-52.

[7] S.-p. Wu, C.-y. Li, J.-j. Guo, et al., Numerical simulation and experimental investigation of two filling methods in vertical centrifugal casting, Transactions of Nonferrous Metals Society of China 16 (2006) 1035-1040.

DOI: 10.1016/s1003-6326(06)60373-7

[8] L.Y. Zhang, Y.H. Jiang, Z. Ma, et al., Effect of cooling rate on solidified microstructure and mechanical properties of aluminium-A356 alloy, Journal of Materials Processing Technology 207 (2008) 107-111.

DOI: 10.1016/j.jmatprotec.2007.12.059
