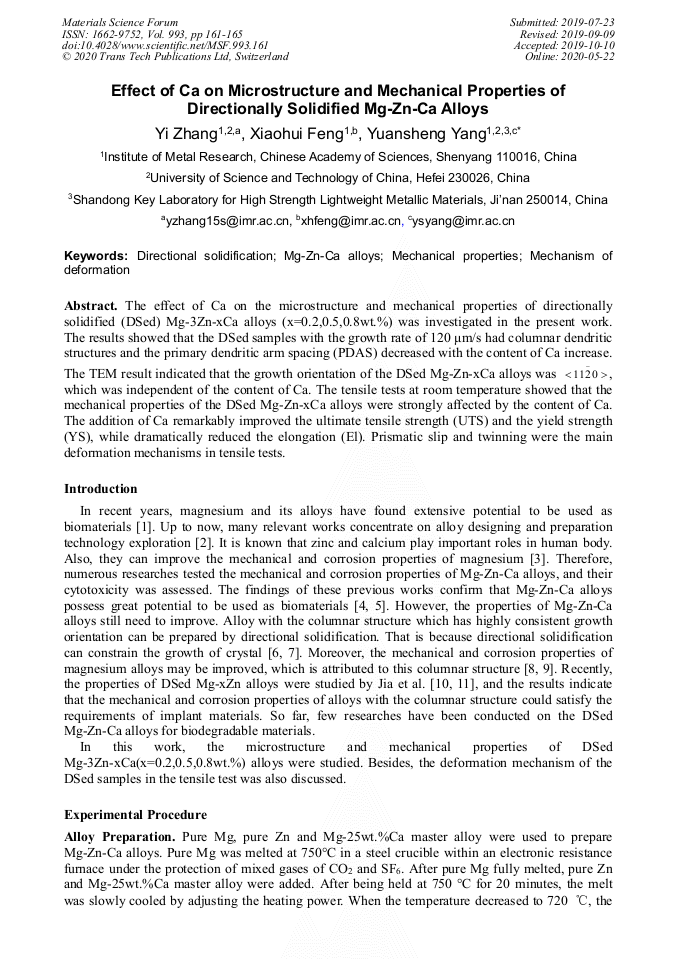

Effect of Ca on Microstructure and Mechanical Properties of Directionally Solidified Mg-Zn-Ca Alloys

Abstract:

The effect of Ca on the microstructure and mechanical properties of directionally solidified (DSed) Mg-3Zn-xCa alloys (x=0.2,0.5,0.8wt.%) was investigated in the present work. The results showed that the DSed samples with the growth rate of 120 μm/s had columnar dendritic structures and the primary dendritic arm spacing (PDAS) decreased with the content of Ca increase. The TEM result indicated that the growth orientation of the DSed Mg-Zn-xCa alloys was , which was independent of the content of Ca. The tensile tests at room temperature showed that the mechanical properties of the DSed Mg-Zn-xCa alloys were strongly affected by the content of Ca. The addition of Ca remarkably improved the ultimate tensile strength (UTS) and the yield strength (YS), while dramatically reduced the elongation (El). Prismatic slip and twinning were the main deformation mechanisms in tensile tests.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 161-165
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.161
• Online since: May 2020
• Authors: Yi Zhang, Xiaohui Feng, Yuan Sheng Yang*
• Keywords: Directional Solidification, Mechanical Properties, Mechanism of Deformation, Mg-Zn-Ca Alloys

References

[1] Y. Chen, Z. Xu, C. Smith, J. Sankar, Recent advances on the development of magnesium alloys for biodegradable implants, Acta Biomater. 10 (2014) 4561-4573.

DOI: 10.1016/j.actbio.2014.07.005

[2] L. Nan, Y. Zheng, Novel magnesium alloys developed for biomedical application:A review, J. Mater. Sci. Technol. 29 (2013) 489-502.

[3] X.N. Gu, Y.F. Zheng, A review on magnesium alloys as biodegradable materials, Front Mater Sci China. 4(2010) 111-115.

[4] A.F. Anvari-Yazdi, K. Tahermanesh, S.M.M. Hadavi, T. Talaei-Khozani, M. Razmkhah, S.M. Abed, M.S. Mohtasebi, Cytotoxicity assessment of adipose-derived mesenchymal stem cells on synthesized biodegradable Mg-Zn-Ca alloys, Mater. Sci. Eng., C: Mater. Biol. Appl. 69 (2016) 584-597.

DOI: 10.1016/j.msec.2016.07.016

[5] Y.P. Li, N.F. Li, T. Lei, L. Liu, O.Y. Chun, Effects of Ca on microstructure, mechanical and corrosion properties and biocompatibility of Mg-Zn-Ca alloys, J. Mater. Sci.: Mater. Med. 24 (2013) 1365-1373.

DOI: 10.1007/s10856-013-4856-y

[6] X. Zheng, A.A. Luo, J. Dong, R.A. Waldo, Directional solidification and microsegregation in a magnesium-aluminum-calcium alloy, Metall. Mater. Trans. A. 43 (2012) 3239-3248.

DOI: 10.1007/s11661-012-1159-8

[7] H.M. Jia, X.H. Feng, Y.S. Yang, Microstructure of directionally solidified Mg-Zn Alloy with different growth rates, Mater. Sci. Forum. 816 (2015) 411-417.

DOI: 10.4028/www.scientific.net/msf.816.411

[8] S.S. Zhao, X.P. Lin, Y. Dong, Y. Niu, D. Xu, H. Sun, High-temperature tensile properties and deformation mechanism of polycrystalline magnesium alloys with specifically oriented columnar grain structures, Mater. Sci. Eng., A. 729 (2018) 300-309.

DOI: 10.1016/j.msea.2018.05.061

[9] J.H. Wang, G.Y. Yang, S.J. Liu, W.Q. Jie, Microstructure and room temperature mechanical properties of directionally solidified Mg–2.35Gd magnesium alloy, Trans. Nonferrous Met. Soc. China. 26(2016) 1294-1300.

DOI: 10.1016/s1003-6326(16)64231-0

[10] H.M. Jia, X.H. Feng, Y.S. Yang, Microstructure evolution and growth orientation of directionally solidified Mg–4 wt% Zn Alloy with different growth rates, Acta Metall. Sin. (Engl. Lett.) 30 (2017) 1-7.

DOI: 10.1007/s40195-017-0630-3

[11] H.M. Jia, X.H. Feng, Y.S. Yang, Microstructure and corrosion resistance of directionally solidified Mg-2 wt.% Zn alloy, Corros. Sci. 120 (2017) 75-81.

DOI: 10.1016/j.corsci.2017.02.023

[12] X.L. Nan, H.Y. Wang, L. Zhang, J.B. Li, Q.C. Jiang, calculation of schmid factors in magnesium: Analysis of deformation behaviors, Scr. Mater. 67 (2012) 443-446.

DOI: 10.1016/j.scriptamat.2012.05.042
