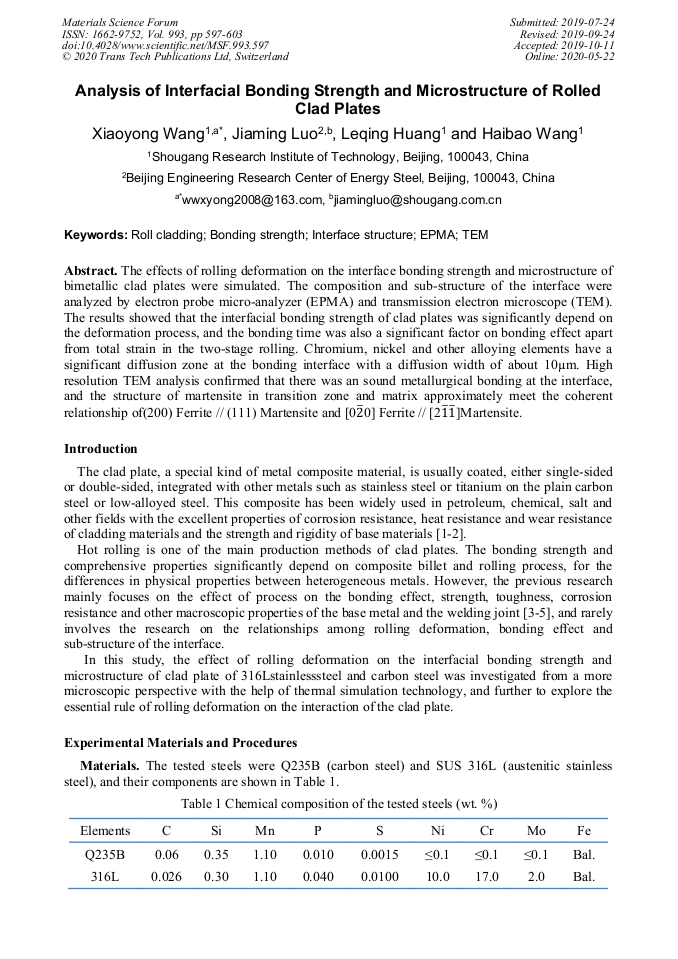

Analysis of Interfacial Bonding Strength and Microstructure of Rolled Clad Plates

Abstract:

The effects of rolling deformation on the interface bonding strength and microstructure of bimetallic clad plates were simulated. The composition and sub-structure of the interface were analyzed by electron probe micro-analyzer (EPMA) and transmission electron microscope (TEM). The results showed that the interfacial bonding strength of clad plates was significantly depend on the deformation process, and the bonding time was also a significant factor on bonding effect apart from total strain in the two-stage rolling. Chromium, nickel and other alloying elements have a significant diffusion zone at the bonding interface with a diffusion width of about 10µm. High resolution TEM analysis confirmed that there was an sound metallurgical bonding at the interface, and the structure of martensite in transition zone and matrix approximately meet the coherent relationship of(200) Ferrite // (111) Martensite and [020] Ferrite // [211]Martensite.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 597-603
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.597
• Online since: May 2020
• Authors: Xiao Yong Wang*, Jia Ming Luo, Le Qing Huang, Hai Bao Wang
• Keywords: Bonding Strength, EPMA, Interface Structure, Roll Cladding, TEM

References

[1] L. Li, X.J. Zhang, H.Y. Liu, F.X. Yin. Production technology and application of stainless steel clad plate,Steel Rolling. 30(2013) 43-47.

[2] D.R. Lesuer, C.K. Syn, O.DSherby. Mechanical behaviour of laminated metal composites.Inter. Mater. Rev. 41(1996) 169-197.

[3] A.Yahiro, T. Masui, T. Yoshida, D.Doi.Development of nonferrous clad plate and sheet by warm rolling with different temperature of materials. ISIJ Inter. 31(1991) 647-654.

DOI: 10.2355/isijinternational.31.647

[4] G.M. Xie, Z.A. Luo, G.L. Wang.Interface characteristic and properties of stainless steel/HSLA steel clad plate by vacuum rolling cladding. Mater.Trans..52(2011) 1709-1712.

DOI: 10.2320/matertrans.m2011127

[5] Z.A. Luo, G.L. Wang, G.M. Xie. Interfacial microstructure and properties of a vacuum hot roll-bonded titanium stainless steel clad plate with a niobium interlayer. ActaMetall Sin. 26(2013) 754-760.

DOI: 10.1007/s40195-013-0283-9

[6] K.S. He, X.F. Cao, Welding of Dissimilar Metals, 1st ed., China Machine Press, Beijing,(1986).

[7] P.C. Tortorici, M.A. Dayananda. Phase formation and interdiffusion in Alclad 430 stainless steels. Materia.Sci.and Eng.A. 244(1998) 207-215.

DOI: 10.1016/s0921-5093(97)00534-0

[8] K. E. Rhelning, Steel and Its Heat Treatment, 2nd ed., Butterworths, London,(1984).

[9] G.F. Li, E.A. Charles, J. Congleton. Effect of post weld heat treatment on stress corrosion cracking of a low alloy steel to stainless steel transition weld. Corros.Sci. 43(2001) 1963-1983.

DOI: 10.1016/s0010-938x(00)00182-7

[10] S.Tosto, F.Nenci, J.D. Huang. Microstructure and tensile properties of AISI 316 stainless steel electron-beam cladded on C40 mild steel. J. Mater. Sci. 29(1994) 5852-5858.

DOI: 10.1007/bf00366867
