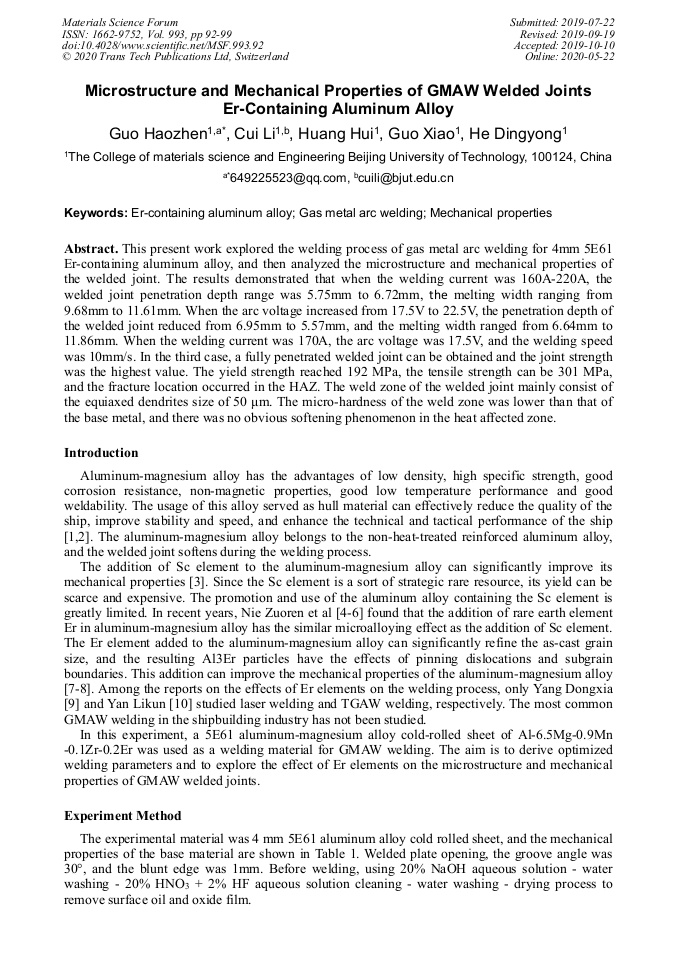

Microstructure and Mechanical Properties of GMAW Welded Joints Er-Containing Aluminum Alloy

Abstract:

This present work explored the welding process of gas metal arc welding for 4mm 5E61 Er-containing aluminum alloy, and then analyzed the microstructure and mechanical properties of the welded joint. The results demonstrated that when the welding current was 160A-220A, the welded joint penetration depth range was 5.75mm to 6.72mm, the melting width ranging from 9.68mm to 11.61mm. When the arc voltage increased from 17.5V to 22.5V, the penetration depth of the welded joint reduced from 6.95mm to 5.57mm, and the melting width ranged from 6.64mm to 11.86mm. When the welding current was 170A, the arc voltage was 17.5V, and the welding speed was 10mm/s. In the third case, a fully penetrated welded joint can be obtained and the joint strength was the highest value. The yield strength reached 192 MPa, the tensile strength can be 301 MPa, and the fracture location occurred in the HAZ. The weld zone of the welded joint mainly consist of the equiaxed dendrites size of 50 μm. The micro-hardness of the weld zone was lower than that of the base metal, and there was no obvious softening phenomenon in the heat affected zone.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 92-99
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.92
• Online since: May 2020
• Authors: Hao Zhen Guo*, Li Cui, Hui Huang, Xiao Guo, Ding Yong He
• Keywords: Er-Containing Aluminum Alloy, Gas Metal Arc Welding, Mechanical Properties

References

[1] ZHANG Yu. Application of Aluminum Alloy in Aerospace[J]. Aluminium Fabrication, 2009(3): 50-53.

[2] Clausen A H, Tore Børvik, Hopperstad O S, et al. Flow and fracture characteristics of aluminium alloy AA5083–H116 as function of strain rate, temperature and triaxiality[J]. Materials Science & Engineering A, 2004, 364(1):260-272.

DOI: 10.1016/j.msea.2003.08.027

[3] ROYset J , Ryum N . Scandium in aluminium alloys[J]. International Materials Reviews, 2005, 50(1):19-44.

[4] Nie Zuoren, Jin Tounan , Zou Jingxia , et al. Development on re- search of advanced rear-earth aluminum alloy[J]. Transaction Nonferrous Metals Society of China, 2003, 13(3) :509-514.

[5] Xu Guofu, Nie Zuoren, Jin Tounan et al. Effect of Erbium on As-cast Microstructure of LF3 Aluminum Alloy[J]. Journal of the Chinese Society of Rare Earths, 2002, 20(2): 143.

[6] Yang J J , Nie Z R , Jin T N , et al. Effect of trace rare earth element Er on high pure Al[J]. Transactions of Nonferrous Metals Society of China, 2003, 13(5):1035-1039.

DOI: 10.1016/s1003-6326(06)60105-2

[7] Nie Z R , Jin T , Fu J , et al. Research on Rare Earth in Aluminum[J]. Materials Science Forum, 2002, 396-402(3):1731.

DOI: 10.4028/www.scientific.net/msf.396-402.1731

[8] Nie Z R , Li B L , Wang W , et al. Study on the Erbium Strengthened Aluminum Alloy[C]// Progress in Light Metals, Aerospace Materials & Superconductors. (2006).

[9] Yang Dongxia, Li Xiaoyan, He Dingyong, et al. Microstructure and Properties of Laser Welded Joints Containing Erbium Alloy[J]. Rare Metal Materials and Engineering, 2012, 41(1).

DOI: 10.1016/s1875-5372(13)60011-9

[10] YAN Li-kun, LI Xiao-yan, HE Ding-yong, et al. Microstructure and properties of TIG welded joints containing Erbium aluminum alloy[J]. Transactions of The China Welding Institution, 2011(8): 85-88.

[11] Sun Weicheng, Zhang Shurong, Hou Aiqin. The Action of Rear Earth in Aluminum Alloy [M]. Beijing: Weapon Industry Press,1992, 28 12.

[12] Chen Jiqiang, Ying Zhiming, He Zhenbo et al.Microstructure and Properties of Friction Stir Welding Joint of Al, Zn, Mg, Sc and Zr Alloy[J].Transactions of the China Welding Institution, 2009, 30(10): 68.
