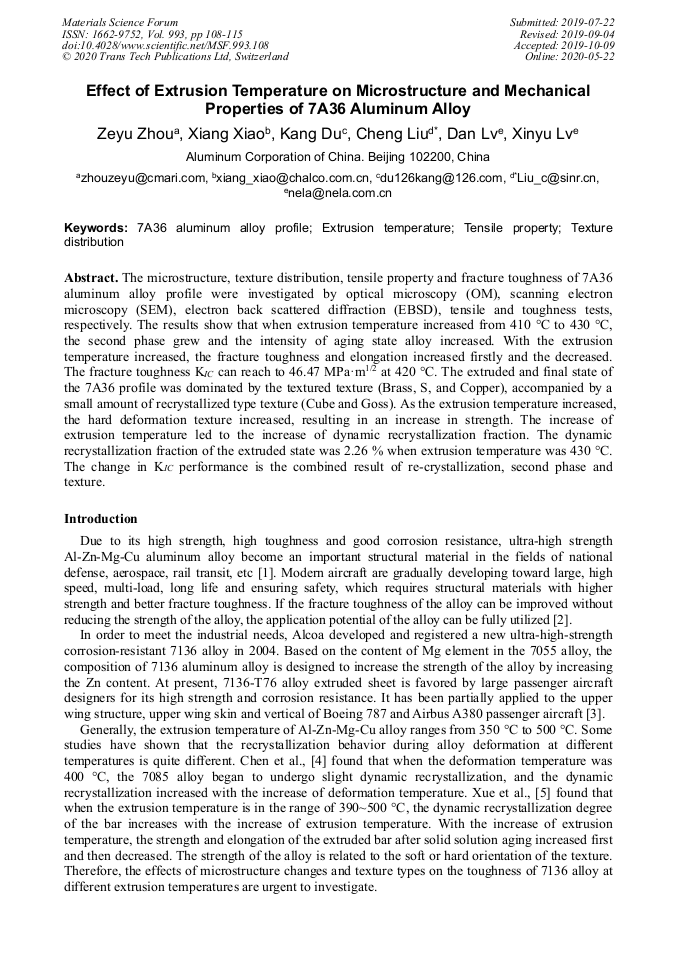

Effect of Extrusion Temperature on Microstructure and Mechanical Properties of 7A36 Aluminum Alloy

Abstract:

The microstructure, texture distribution, tensile property and fracture toughness of 7A36 aluminum alloy profile were investigated by optical microscopy (OM), scanning electron microscopy (SEM), electron back scattered diffraction (EBSD), tensile and toughness tests, respectively. The results show that when extrusion temperature increased from 410 °C to 430 °C, the second phase grew and the intensity of aging state alloy increased. With the extrusion temperature increased, the fracture toughness and elongation increased firstly and the decreased. The fracture toughness K_IC can reach to 46.47 MPa·m^1/2 at 420 °C. The extruded and final state of the 7A36 profile was dominated by the textured texture (Brass, S, and Copper), accompanied by a small amount of recrystallized type texture (Cube and Goss). As the extrusion temperature increased, the hard deformation texture increased, resulting in an increase in strength. The increase of extrusion temperature led to the increase of dynamic recrystallization fraction. The dynamic recrystallization fraction of the extruded state was 2.26 % when extrusion temperature was 430 °C. The change in K_IC performance is the combined result of re-crystallization, second phase and texture.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 108-115
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.108
• Online since: May 2020
• Authors: Ze Yu Zhou, Xiang Xiao, Kang Du, Cheng Liu*, Dan Lv, Xin Yu Lv
• Keywords: 7A36 Aluminum Alloy Profile, Extrusion Temperature, Tensile Property, Texture Distribution

References

[1] H. Fang, H. Chao, K. CHEN. Effect of Zr, Er and Cr addition on microstructures and properties of Al-Zn-Mg-Cu alloys, J. Materials Science and Engineering. 610 (2014) 10-16.

DOI: 10.1016/j.msea.2014.05.021

[2] M. Dixit, R. Mishra, K. K. Sankaran. Structure-property correlation in Al 7050 and 7055 high-strength aluminum alloys, J. Materials Science and Engineering: A. 478 (2008) 163-172.

DOI: 10.1016/j.msea.2007.05.116

[3] B. Tweedy, C. Widener, D. Burford. Fundamental properties of friction stir welded Al 7136 including effects of post-weld artificial aging, C. Sixth International Symposium on Friction Stir Welding, Saint-Sauveur, Nr Montreal, Canada. (2006).

DOI: 10.1108/acmm.2005.12852dac.001

[4] X. Chen, K. Chen, P. Dong, G. Peng, S. Chen. Microstructure evolution and dynamic recrystallization model of 7085 aluminum alloy during hot deformation, J. The Chinese Journal of Nonferrous Metals. 23 (2013) 44-50.

[5] J. Xue, Y. Wang, Z. Zhang, J. Xie. Effects of extrusion temperature on dynamic recrystallization, aging microstructure and mechanical properties of Al-Zn-Mg-Cu alloy, J. The Chinese Journal of Nonferrous Metals. 27(11) (2017) 2204-2211.

[6] X. Wang, M. Guo, L. Cao, et al. Effect of heating rate on mechanical property, microstructure and texture evolution of Al–Mg–Si–Cu alloy during solution treatment, J. Materials Science and Engineering: A. 621 (2015) 8-17.

DOI: 10.1016/j.msea.2014.10.045

[7] Q. Zang, H. Yu, Y. Lee, et al. Hot deformation behavior and microstructure evolution of annealed Al-7.9Zn-2.7Mg-2.0Cu (wt. %) alloy, J. Journal of Alloys & Compounds, (2018).

DOI: 10.1016/j.jallcom.2018.05.307

[8] M. Starink, S. Wang. A model for the yield strength of overaged Al-Zn-Mg-Cu alloys, J. Acta Materialia, 51(17) (2003) 5131-5150.

DOI: 10.1016/s1359-6454(03)00363-x

[9] F. Humphreys, M. Hatherly. Recrystallization and related annealing phenomena, J. 2nd ed. Oxford. London: Pergamon Press, (2004) 86-105.

[10] Y. Zhang, Y. Deng, L. Wan, X. Zhang. Effects of thermal mechanical treatment on the microstructures and hardness of an Al-Zn-Mg-Cu alloy plate, J. Acta Metallurgica Sinica, 47(10) (2011) 1270-1276.

[11] W. Mao, P. Yang, L. Chen. Principle of Material Texture Analysis and Detecting Technology, Metallurgical Industry Press, Beijing, 2008, pp.20-35. (in Chinese).

[12] B. Morere, J. Ehrstrom, P. Gregson, et al. Microstructural effects on fracture toughness in AA7010 plate, J. Metallurgical and Materials Transactions A (Physical Metallurgy and, Materials Science), 31(10) (2000) :2503-2515.

DOI: 10.1007/s11661-000-0195-y

[13] N. Han, X. Zhang, S. Liu, et al. Effects of pre-stretching and ageing on the strength and fracture toughness of aluminum alloy 7050, J. Materials Science & Engineering A, 528(10) (2011) :3714-3721.

DOI: 10.1016/j.msea.2011.01.068

[14] Z. Cvijovic, M. Vratnica, M. Rakin. Micromechanical modelling of fracture toughness in overaged 7000 alloy forgings, J. Materials Science & Engineering A, 434 (1/2) (2006): 339-346.

DOI: 10.1016/j.msea.2006.07.018

[15] Z. Cvijovi, M. Rakin, M. Vratnica, et al. Microstructural dependence of fracture toughness in high-strength 7000 forging alloys, J. Engineering Fracture Mechanics, 75(8) (2008):2115-2129.

DOI: 10.1016/j.engfracmech.2007.10.010
