Naphthalene Containing Polyimide Nanocomposites Hybrid with Organo-Modified Montmorillonite

B.K. Chen; S.Y. Tsay; C.P. Chen

doi:10.4028/www.scientific.net/SSP.111.43

Paper Titles

Sensitivity of Zn_1-xCd_x Te to Tera-Hertz Signals Enhanced by Structural Orderings
p.25

Sol-Gel Synthesis and Structure-Property Relations in Zn_xCu_1-xBi₂O₄ (0≤ x ≤0.6) Spinels
p.31

Microstructural Investigation of Particulate Reinforced Ti-Sn Metal Matrix Composites
p.35

Synthesis and Characterization of Hybrid Aluminum Composites Reinforced with Ni Particulates and Interconnected Fe Mesh
p.39

Naphthalene Containing Polyimide Nanocomposites Hybrid with Organo-Modified Montmorillonite
p.43

Pillared Materials from Layer Titanosilicates?
p.47

The Band Structure Analysis of the Hybrid Compound (C₄H₉NH₃)₂Gel₄
p.51

Phase Transition and Thermochromism of the Hybrid (C₁₂H₂₅NH₃)₂FeCl₄
p.55

Development of Lead-Free Solder Composites Containing Nanosized Hybrid (ZrO₂ + 8 mol.% Y₂O₃) Particulates
p.59

HomeSolid State PhenomenaSolid State Phenomena Vol. 111Naphthalene Containing Polyimide Nanocomposites...

Naphthalene Containing Polyimide Nanocomposites Hybrid with Organo-Modified Montmorillonite

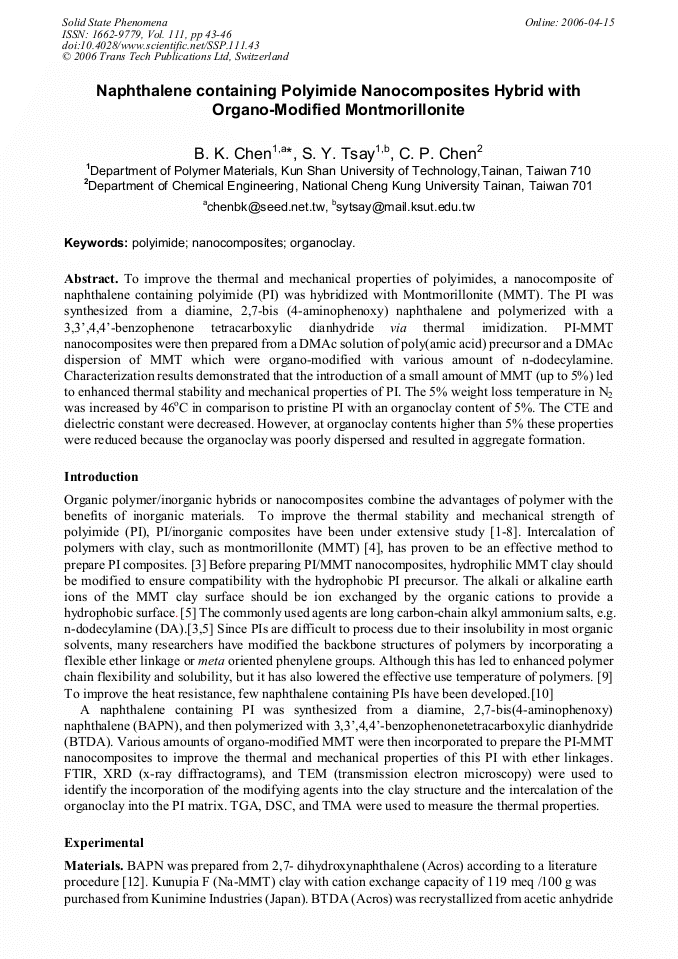

Abstract:

To improve the thermal and mechanical properties of polyimides, a nanocomposite of naphthalene containing polyimide (PI) was hybridized with Montmorillonite (MMT). The PI was synthesized from a diamine, 2,7-bis (4-aminophenoxy) naphthalene and polymerized with a 3,3’,4,4’-benzophenone tetracarboxylic dianhydride via thermal imidization. PI-MMT nanocomposites were then prepared from a DMAc solution of poly(amic acid) precursor and a DMAc dispersion of MMT which were organo-modified with various amount of n-dodecylamine. Characterization results demonstrated that the introduction of a small amount of MMT (up to 5%) led to enhanced thermal stability and mechanical properties of PI. The 5% weight loss temperature in N2 was increased by 46oC in comparison to pristine PI with an organoclay content of 5%. The CTE and dielectric constant were decreased. However, at organoclay contents higher than 5% these properties were reduced because the organoclay was poorly dispersed and resulted in aggregate formation.
