Thickness Dependence of the Crystallization of α-Fe₂O₃/α-Al₂O₃(0001) Thin Films Grown by Sputtering

Abstract:

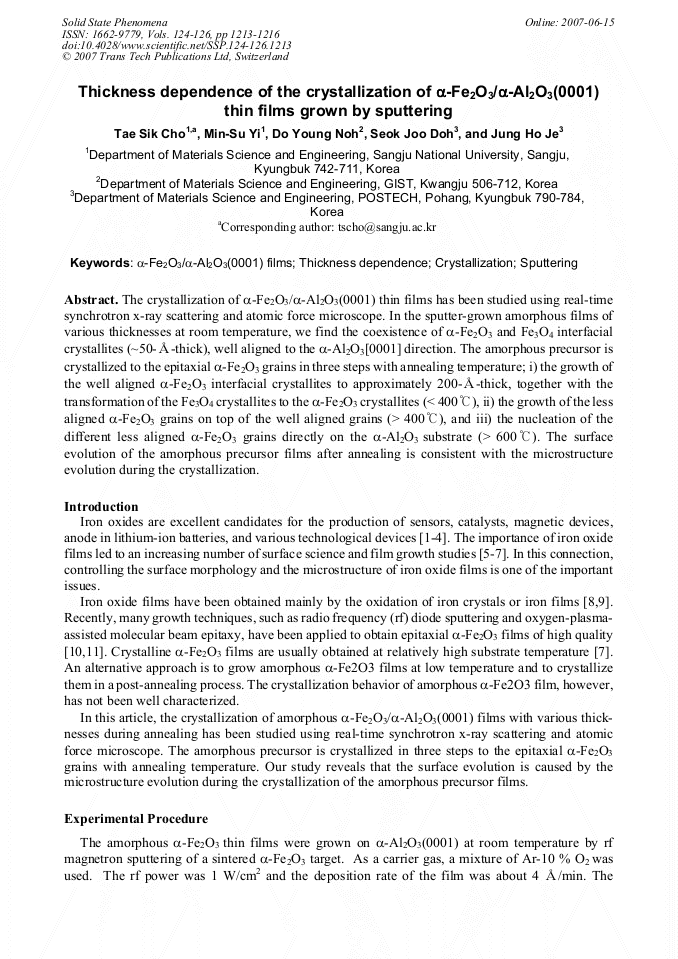

The crystallization of α-Fe2O3/α-Al2O3(0001) thin films has been studied using real-time synchrotron x-ray scattering and atomic force microscope. In the sputter-grown amorphous films of various thicknesses at room temperature, we find the coexistence of α-Fe2O3 and Fe3O4 interfacial crystallites (~50-Å-thick), well aligned to the α-Al2O3[0001] direction. The amorphous precursor is crystallized to the epitaxial α-Fe2O3 grains in three steps with annealing temperature; i) the growth of the well aligned α-Fe2O3 interfacial crystallites to approximately 200-Å-thick, together with the transformation of the Fe3O4 crystallites to the α-Fe2O3 crystallites (< 400°C), ii) the growth of the less aligned α-Fe2O3 grains on top of the well aligned grains (> 400°C), and iii) the nucleation of the different less aligned α-Fe2O3 grains directly on the α-Al2O3 substrate (> 600°C). The surface evolution of the amorphous precursor films after annealing is consistent with the microstructure evolution during the crystallization.

• Periodical: Solid State Phenomena (Volumes 124-126)
• Pages: 1213-1216
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.124-126.1213
• Online since: June 2007
• Authors: Tae Sik Cho, Min Su Yi, Do Young Noh, Seok Joo Doh, Jung Ho Je
• Keywords: Crystallization, Sputtering, Thickness Dependence, α-Fe₂O₃/α-Al₂O₃(0001) Films

References

[1] R. P. Cowburn, A. M. Moulin, and M. E. Welland: Appl. Phys. Lett. Vol. 71 (1997), p.2202.

[2] J. W. Geus: Appl. Catal. Vol. 25 (1986), p.313.

[3] V. Preobrazhensky and P. Pernod: J. Appl. Phys. Vol. 81 (1997), p.5709.

[4] J. Sarradin, M. Ribes, A. Guessous, and K. Elkacemi: Solid State Ionics Vol. 112 (1998), p.35.

[5] R. Bertacco, M. Merano, and F. Ciccacci: Appl. Phys. Lett. Vol. 72 (1998), p. (2050).

[6] Michael F. Toney: Phy. Rev. Lett. Vol. 79 (1997), p.4282.

[7] W. Weiss and M. Ritter: Phy. Rev. B Vol. 59 (1999), p.5201.

[8] M. Langell and G. A. Somorjai: J. Vac. Sci. Tech. Vol. 21 (1982), p.858.

[9] J. S. Corneille, J. -W. He, and D. W. Goodman: Surf. Sci. Vol. 338 (1995), p.211.

[10] M. Gomi and H. Toyoshima: Jpn. J. Appl. Phys. (1996). Vol. 35 (1996), p. L544.

[11] Y. Gao, Y. J. Kim, S. A. Chambers, and G. Bai: J. Vac. Sci. Technol. A Vol. 15 (1997), p.332.

[12] M. S. Yi, H. H. Lee, D. J. Kim, et. al. : Appl. Phys. Lett. Vol. 75 (1999), p.2187.

[13] S. J. Doh, J. H. Je, and Tae Sik Cho: J. Crystal Growth Vol. 240 (2002), p.355.
