Investigation of Thermal Measurement Variables in High Power GaN-Based LEDs

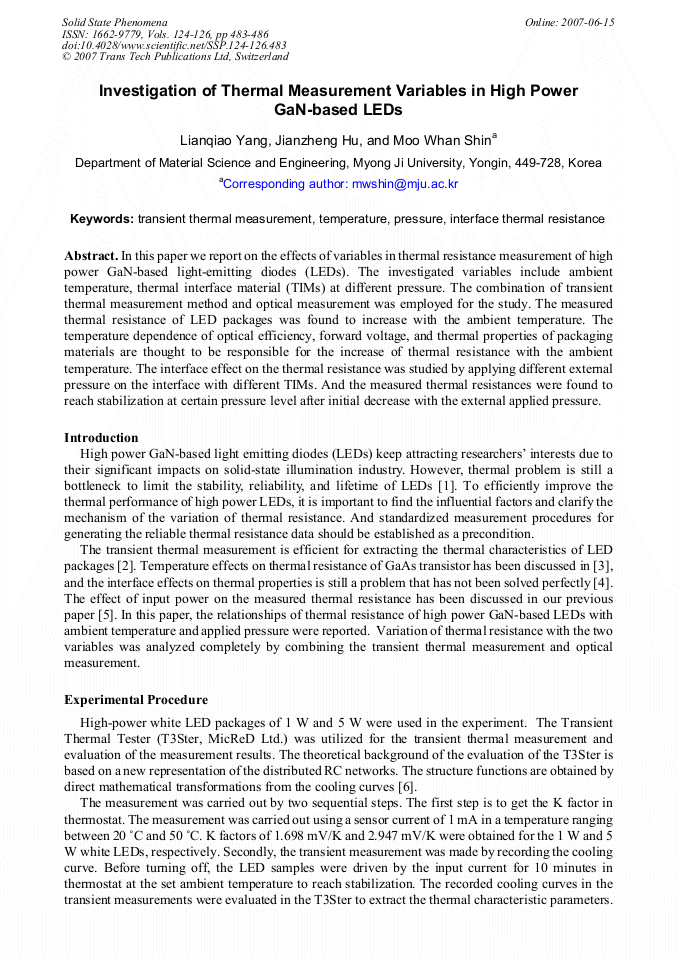

Article Preview

Abstract:

In this paper we report on the effects of variables in thermal resistance measurement of high power GaN-based light-emitting diodes (LEDs). The investigated variables include ambient temperature, thermal interface material (TIMs) at different pressure. The combination of transient thermal measurement method and optical measurement was employed for the study. The measured thermal resistance of LED packages was found to increase with the ambient temperature. The temperature dependence of optical efficiency, forward voltage, and thermal properties of packaging materials are thought to be responsible for the increase of thermal resistance with the ambient temperature. The interface effect on the thermal resistance was studied by applying different external pressure on the interface with different TIMs. And the measured thermal resistances were found to reach stabilization at certain pressure level after initial decrease with the external applied pressure.

You might also be interested in these eBooks
Advances in Nanomaterials and Processing View Preview

Info:

Periodical:

Solid State Phenomena (Volumes 124-126)

Pages:

483-486

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.124-126.483

Citation:

Cite this paper

Online since:

June 2007

Authors:

Lian Qiao Yang, Jian Zheng Hu, Moo Whan Shin

Keywords:

Interfacial Thermal Resistance, Pressure, Temperature, Transient Thermal Measurement

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2007 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Jianzheng Hu, Lianqiao Yang, Woongjoon Hwang, and Moowhan Shin: J. Crystal Growth Vol. 288, (2006), p.157.

Google Scholar

[2] Gábor Farkas, Quint van Voorst Vader, András Poppe, György Bognár: Proc. of 9th THERMNIC Workshop, Sep 24-26 (2003), p.213.

Google Scholar

[3] J. C. J. Paasschens, S. Harmsma, and R. Vander Toorn: IEEE BCTM 5. 1, (2004), p.96.

Google Scholar

[4] Clemens J. M. Lasance, Cameron T. Murray, David L. Saums, and Marta Rencz: 22 nd IEEE SEMI-THERM Smposium.

Google Scholar

[5] Lianqiao Yang, Jianzheng Hu, Lan Kim, and Moowhanshin: physica status solidi (c), accepted.

Google Scholar

[6] Moo Whan Shin: Proc. of International LED Seminar 2005, Koyang, Korea, May 26-27 (2005), p.49.

Google Scholar

[7] F.P. Incropera and D.P. DeWitt: 4th edition, John Wiley and Sons Inc. (1996).

Google Scholar

[8] P. D. Maycock: Solid-State Electronics, V. 10 (1967), p.161.

Google Scholar

[9] V.V. Khartionov and N.V. Yakutin: Tech. Phys. 42 (2) (1997), p.125.

Google Scholar
