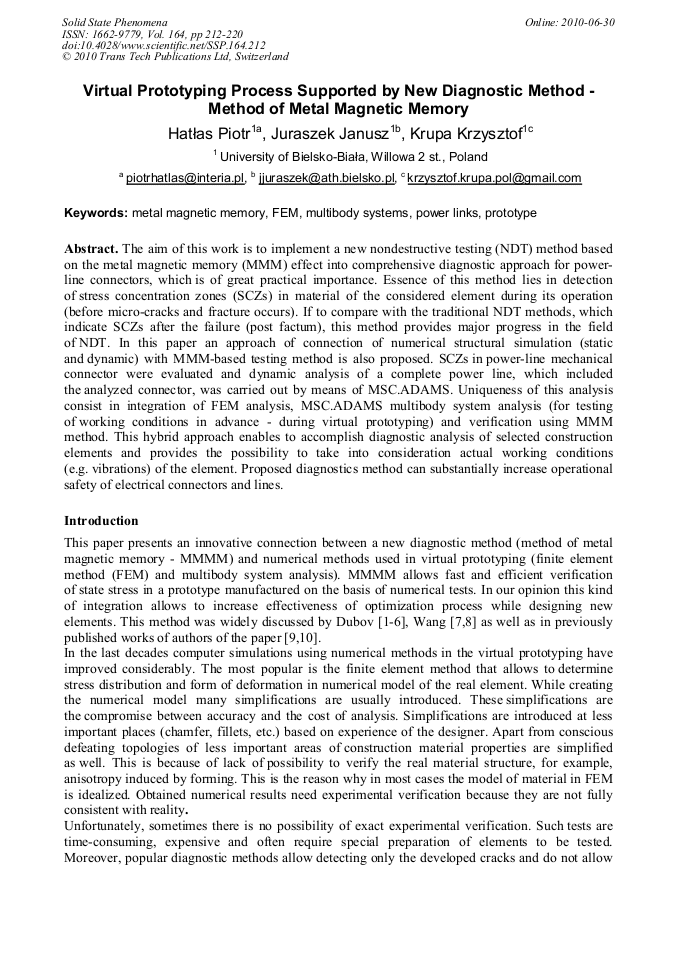

Virtual Prototyping Process Supported by New Diagnostic Method -Method of Metal Magnetic Memory

Abstract:

The aim of this work is to implement a new nondestructive testing (NDT) method based on the metal magnetic memory (MMM) effect into comprehensive diagnostic approach for power-line connectors, which is of great practical importance. Essence of this method lies in detection of stress concentration zones (SCZs) in material of the considered element during its operation (before micro-cracks and fracture occurs). If to compare with the traditional NDT methods, which indicate SCZs after the failure (post factum), this method provides major progress in the field of NDT. In this paper an approach of connection of numerical structural simulation (static and dynamic) with MMM-based testing method is also proposed. SCZs in power-line mechanical connector were evaluated and dynamic analysis of a complete power line, which included the analyzed connector, was carried out by means of MSC.ADAMS. Uniqueness of this analysis consist in integration of FEM analysis, MSC.ADAMS multibody system analysis (for testing of working conditions in advance - during virtual prototyping) and verification using MMM method. This hybrid approach enables to accomplish diagnostic analysis of selected construction elements and provides the possibility to take into consideration actual working conditions (e.g. vibrations) of the element. Proposed diagnostics method can substantially increase operational safety of electrical connectors and lines.

• Periodical: Solid State Phenomena (Volume 164)
• Pages: 212-220
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.164.212
• Online since: June 2010
• Authors: Piotr Hatłas, Janusz Juraszek, Krzysztof Krupa
• Keywords: Finite Element Model (FEM), Metal Magnetic Memory (MMM), Multibody System, Power Links, Prototype

References

[1] A. A. Dubov, S. M. Kolokolnikov, M. Evdokimov, A. Pavlov: Estimation of gas and oil pipelines condition based on the metod of metal magnetic memory, Conf. mat.: 17th World Conference on Nondestructive Testing, 25-28 October (2008).

[2] A. A. Dubov: Diagnostyka wytrzymałości oprzyrządowania i konstrukcji z wykorzystaniem Magnetycznej Pamięci Metalu cz. 1, 2. Dozór techniczny, Nr 1, 2 (2002).

[3] A. A. Dubov, AI, A. Dubov, S. M. Kolokolnikov: The problems of residual stress testing in welded joints and their solution using the MMM method, Conf. mat.: 5th International Scientific-Technical conference Equipment and structures diagnostics using the magnetic memory of metal, 17-19 February (2009).

DOI: 10.3139/120.111288

[4] A. A. Dubov, S. M. Kolokolnikov: Technical Diagnostics of Equipment and Constructions with Residual Life Assessment Using the Method of Metal Magnetic Memory, Conf. mat.: 17th World Conference on Nondestructive Testing, 25-28 October (2008).

[5] A. A. Dubov: Physical base of the metod of metal magnetic memory, Conf. mat.: AMAS Course on Nondestructive Testing of Materials, NTM'02, 20-22 May (2002), Warsaw, Poland.

[6] P. Wang, S. Zhu, G. Y. Tian, H. Wang, X. Wang: Stress Measurement Using Magnetic Barkhausen +oise and Metal Magnetic Memory Testing, Mat. konf.: 17th World Conference on Nondestructive Testing, 25-28 October (2008), Shanghai, China.

DOI: 10.1088/0957-0233/21/5/055703

[7] S. Zhu, P. Wang, G. Y. Tian, H. Wang: Metal Magnetic Memory Testing Technique for Stress, Mat. konf.: 17th World Conference on Nondestructive Testing, 25-28 October, (2008) Shanghai, China.

[8] P. Hatłas, J. Juraszek, K. Krupa: Analiza łączników energetycznych za pomocą metody Magnetycznej Pamięci Metalu, Conf. mat.: IV International Conference Working safety of transport mining equipment, 5-7 November (2008), Ustroń, Poland.

[9] P. Hatłas, J. Juraszek, K. Krupa: Badanie zmęczeniowe modelu wału za pomocą metody Magnetycznej Pamięci Metalu, Conf. mat.: IV International Conference Working safety of transport mining equipment, 5-7 November (2008), Ustroń, Poland.

[10] ISO 24497-1: 2007 (E) +on-Destructive testing- Metal magnetic memory- Part 1: Vocabulary, Part 2: General Requirements, Part 3: Inspection of welded joints.

DOI: 10.3403/30137584u
