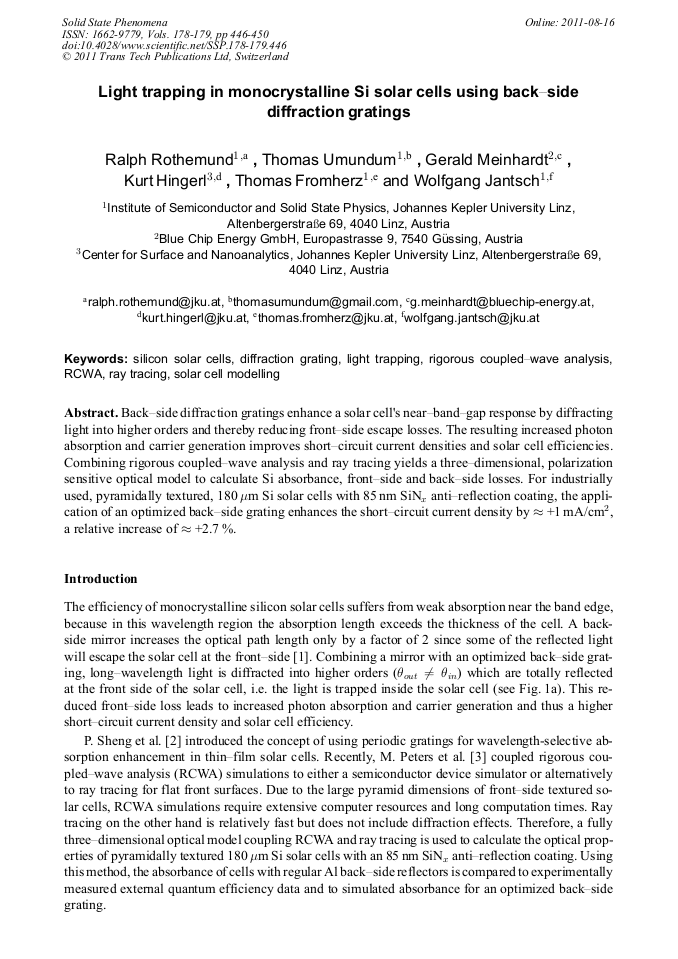

Light Trapping in Monocrystalline Si Solar Cells Using Back–Side Diffraction Gratings

Abstract:

Back–side diffraction gratings enhance a solar cell’s near–band–gap response by diffracting light into higher orders and thereby reducing front–side escape losses. The resulting increased photon absorption and carrier generation improves short–circuit current densities and solar cell efficiencies. Combining rigorous coupled–wave analysis and ray tracing yields a three–dimensional, polarization sensitive optical model to calculate Si absorbance, front–side and back–side losses. For industrially used, pyramidally textured, 180 μm Si solar cells with 85 nm SiN_x anti–reflection coating, the application of an optimized back–side grating enhances the short–circuit current density by ≈ +1 mA/cm², a relative increase of ≈ +2.7 %.

You might also be interested in these eBooks

Solar Cells: Research and Development of Solar Cells

View Preview

Gettering and Defect Engineering in Semiconductor Technology XIV

View Preview

Info:

Periodical:

Solid State Phenomena (Volumes 178-179)

Pages:

446-450

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.178-179.446

Citation:

Cite this paper

Online since:

August 2011

Authors:

Ralph Rothemund, Thomas Umundum, Gerald Meinhardt, Kurt Hingerl, Thomas Fromherz, Wolfgang Jantsch

Keywords:

Diffraction Grating, Light Trapping, Ray-Tracing, RCWA, Rigorous Coupled Wave Analysis, Silicon Solar Cell, Solar Cell Modelling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R. Brendel. Thin-Film Crystalline Silicon Solar Cells: Physics and Technology. WILEY-VCH Verlag GmbH & Co, KGaA, Weinheim, 2003.

Google Scholar

[2] P. Sheng, A. N. Bloch, and R. S. Stepleman. Appl. Phys. Lett., 43(6):579--581, 1983.

Google Scholar

[3] M. Peters, M. R¨udiger, B. Bl¨asi, and W. Platzer. Opt. Express, 18(104):A584--A593, 2010.

Google Scholar

[4] M. G. Moharam, E. B. Grann, D. A. Pommet, and T. K. Gaylord. J. Opt. Soc. Am. A, 12(5):1068- -1076, 1995.

Google Scholar

[5] P. Lalanne and G. M. Morris. J. Opt. Soc. Am. A, 13(4):779--784, 1996.

Google Scholar

[6] P. Lalanne and M.P. Jurek. J. Mod. Opt., 45(7):1357--1374, 1998.

Google Scholar

[7] P. Campbell and M. A. Green. J. Appl. Phys., 62(1):243--249, 1987.

Google Scholar

[8] C. M. Herzinger, B. Johs, W. A. McGahan, J. A. Woollam, and W. Paulson. J. Appl. Phys., 83(6):3323--3336, 1998.

Google Scholar

[9] E.D. Palik and G. Ghosh. Handbook of Optical Constants of Solids. Academic press, 1998.

Google Scholar

[10] T. M¨oller and B. Trumbore. journal of graphics, gpu, and game tools, 2(1):21--28, 1997.

Google Scholar

[11] H. Fujiwara. Spectroscopic Ellipsometry. John Wiley & Sons Ltd, 2007.

Google Scholar

[12] P.J. S´anchez-Illescas, P. Carpena, P. Bernaola-Galv´an, M. Sidrach de Cardona, A.V. Coronado, and J.L. ´Alvarez. Sol. Energy Mater. Sol. Cells, 92(3):323 -- 331, 2008.

Google Scholar

[13] J.P. Hugonin and P. Lalanne. Reticolo software for grating analysis. Institut d'Optique, France, 2005.

Google Scholar

[14] ASTM Standard G173-03. http://rredc.nrel.gov/solar/spectra/am1.5/.

Google Scholar
