Annealing of a-Si:H Thin Film by Rapid Thermal Process

Yu Cang Wang; Rui Min Jin

doi:10.4028/www.scientific.net/SSP.181-182.409

Paper Titles

Synthesis of Monodisperse Fe₃O₄ and MnFe₂O₄ Nanospheres by Using a Solvothermal Reduction Method
p.393

Mesophase and Optical Properties of Side Chain Copolyacrylate with Mesogens and OLLA Segments Side Chains
p.397

Influence of Deposition Temperature on Microcrystalline Silicon Thin Film Prepared by Plasma Enhanced Chemical Vapor Deposition
p.401

Microwave Dielectric Properties of Ca[(Li_1/3Nb_2/3)_0.95Zr_0.05]O_3−δ−xTiO₂ Ceramics
p.405

Annealing of a-Si:H Thin Film by Rapid Thermal Process
p.409

Investigation of Quantum Beatings at 608 cm^-1 and 70 cm^-1 in Rb Vapor
p.413

Effect of Sodium Chloride on the Sol-Gel Synthesized Silica Colloidal Particles
p.417

Structure and Raman Investigations of Nitrogen-Doped TiO₂ Nanotube Arrays
p.422

Influence of Radio Frequency Power on Microstructure of Microcrystalline Silicon Films
p.426

HomeSolid State PhenomenaSolid State Phenomena Vols. 181-182Annealing of a-Si:H Thin Film by Rapid Thermal...

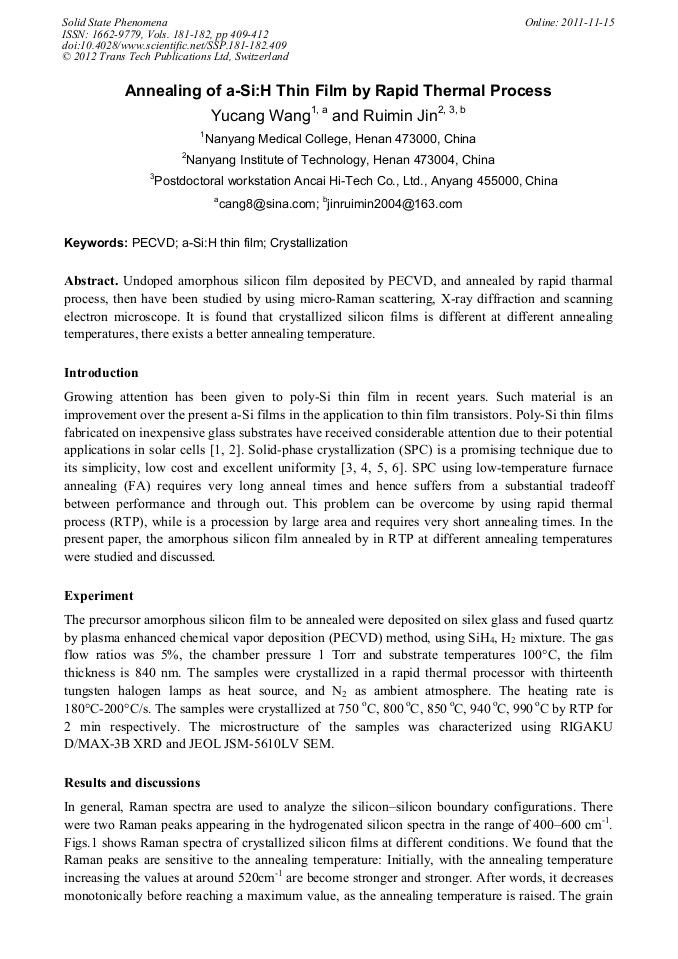

Annealing of a-Si:H Thin Film by Rapid Thermal Process

Abstract:

Undoped amorphous silicon film deposited by PECVD,and annealed by rapid tharmal process,then have been studied by using micro-Raman scattering, X-ray diffraction and scanning electron microscope.It is found that crystallized silicon films is different at different annealing temperatures, there exists a better annealing temperature.
