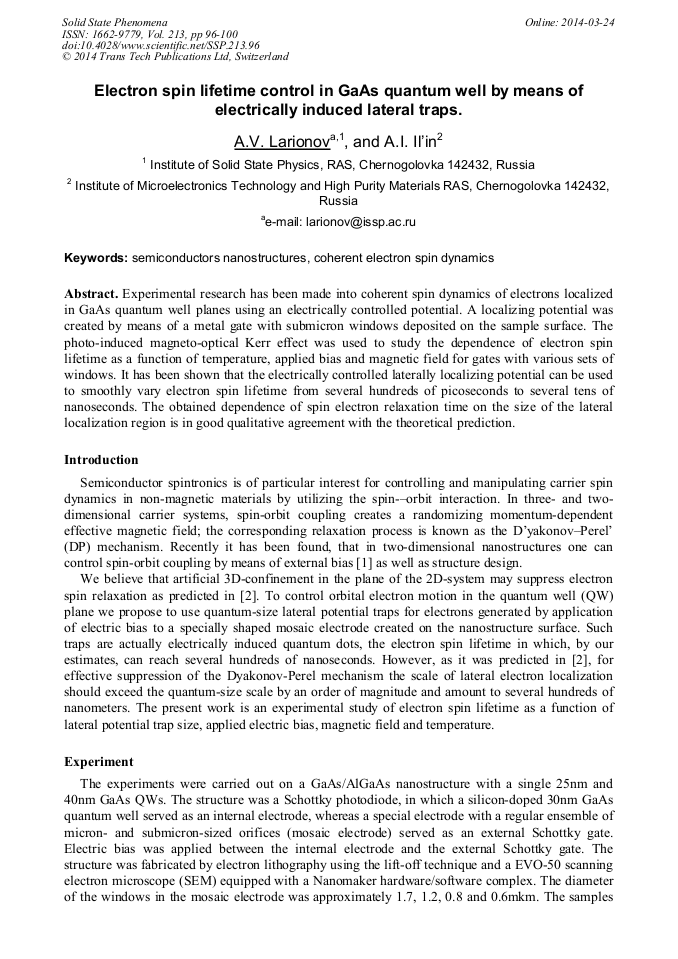

Electron Spin Lifetime Control in GaAs Quantum Well by Means of Electrically Induced Lateral Traps

Abstract:

Experimental research has been made into coherent spin dynamics of electrons localized in GaAs quantum well planes using an electrically controlled potential. A localizing potential was created by means of a metal gate with submicron windows deposited on the sample surface. The photo-induced magneto-optical Kerr effect was used to study the dependence of electron spin lifetime as a function of temperature, applied bias and magnetic field for gates with various sets of windows. It has been shown that the electrically controlled laterally localizing potential can be used to smoothly vary electron spin lifetime from several hundreds of picoseconds to several tens of nanoseconds. The obtained dependence of spin electron relaxation time on the size of the lateral localization region is in good qualitative agreement with the theoretical prediction.
