Non-Visual Defect Monitoring with Surface Voltage Mapping: Application for Semiconductor IC and PV Technology

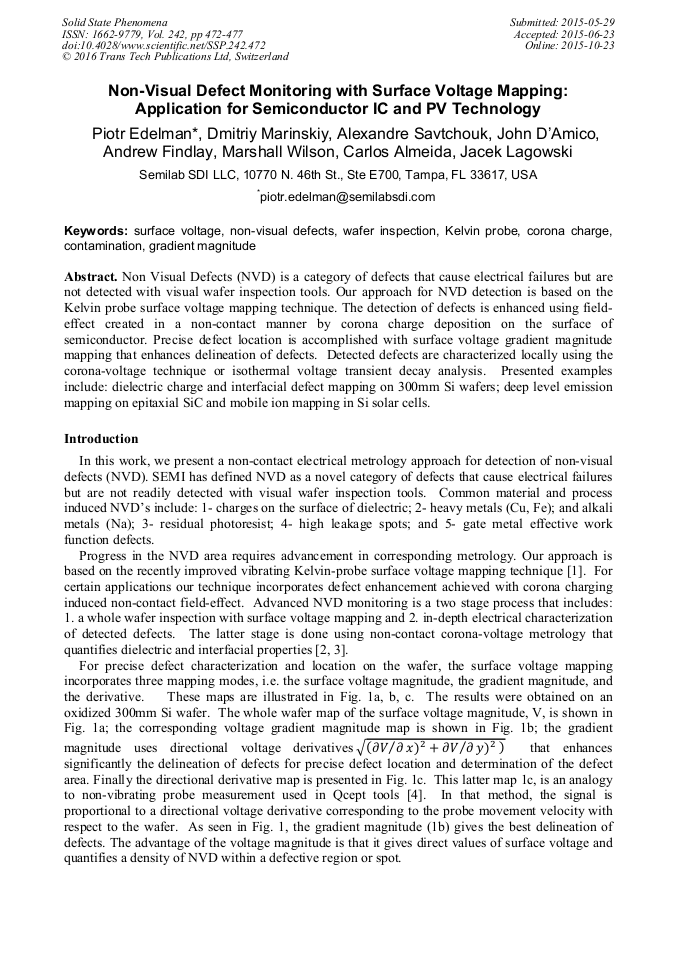

Article Preview

Abstract:

Non Visual Defects (NVD) is a category of defects that cause electrical failures but are not detected with visual wafer inspection tools. Our approach for NVD detection is based on the Kelvin probe surface voltage mapping technique. The detection of defects is enhanced using field-effect created in a non-contact manner by corona charge deposition on the surface of semiconductor. Precise defect location is accomplished with surface voltage gradient magnitude mapping that enhances delineation of defects. Detected defects are characterized locally using the corona-voltage technique or isothermal voltage transient decay analysis. Presented examples include: dielectric charge and interfacial defect mapping on 300mm Si wafers; deep level emission mapping on epitaxial SiC and mobile ion mapping in Si solar cells.

You might also be interested in these eBooks
Gettering and Defect Engineering in Semiconductor Technology XVI View Preview

Info:

Periodical:

Solid State Phenomena (Volume 242)

Pages:

472-477

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.242.472

Citation:

Cite this paper

Online since:

October 2015

Authors:

Piotr Edelman*, Dmitriy Marinskiy, Alexandre Savtchouk, John D'Amico, Andrew Findlay, Marshall Wilson, Carlos Almeida, Jacek Lagowski

Keywords:

Contamination, Corona Charge, Gradient Magnitude, Kelvin Probe, Non-Visual Defects, Surface Voltage, Wafer Inspection

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] D. Marinskiy, J. Lagowski, M. Wilson, A. Findlay, C. Almeida, and P. Edelman, New Approach to Surface Voltage Based Non-Visual Defect Inspection, ECS Transactions 60 (1), 2014, pp.917-922.

DOI: 10.1149/06001.0917ecst

Google Scholar

[2] P. Edelman, D. Marinskiy, C. Almeida, J. N. Kochey, A. Byelyayev, M. Wilson, A. Savtchouk, J. D'Amico, A. Findlay, L. Jastrzebski, J. Lagowski. Non-contact charge-voltage method for dielectric characterization on small test areas of IC product wafers, Materials Science in Semiconductor Processing 9 (2006).

DOI: 10.1016/j.mssp.2006.01.042

Google Scholar

[3] M. Wilson, A. Savtchouk, P. Edelman, D. Marinskiy and J. Lagowski, Drift Characteristics of Mobile Ions in SiNx Films and Solar Cells, SOLMAT 2015 in print.

DOI: 10.1016/j.solmat.2015.06.022

Google Scholar

[4] Jungtae Park; Sungjin Cho; Hawthorne, J., Electrochemical Induced Pitting Defects at Gate Oxide Pattering, in Semiconductor Manufacturing, IEEE Transactions on, vol. 26, no. 3, p.315, (2013).

DOI: 10.1109/tsm.2013.2259271

Google Scholar

[5] D. Marinskiy and A. Savtchouk, A novel approach to measuring doping in SiC by micro spot corona – Kelvin method, Materials Science Forum Vols 821-823 (2015) pp.273-276.

DOI: 10.4028/www.scientific.net/msf.821-823.273

Google Scholar

[6] A. Czett, C. Buday, S. Savtchouk, and D. Marinskiy, Non-contact high precision alternative to Hg-probe for dopant profiling in SiC Phys. Status Solidi C 11, No. 11–12, 1601–1605 (2013) / DOI 10. 1002/pssc. 201400057.

DOI: 10.1002/pssc.201400057

Google Scholar

[7] Dieter K. Schroder, Semiconductor Materials and Device Characterization, 3rd Ed, Wiley Interscience 2006, Ch. 5. 6.

Google Scholar

[8] D.K. DeBusk and A.M. Hoff, Fast Noncontact Diffusion-process Monitoring, Solid State Technology 42, 67 (1999).

Google Scholar
