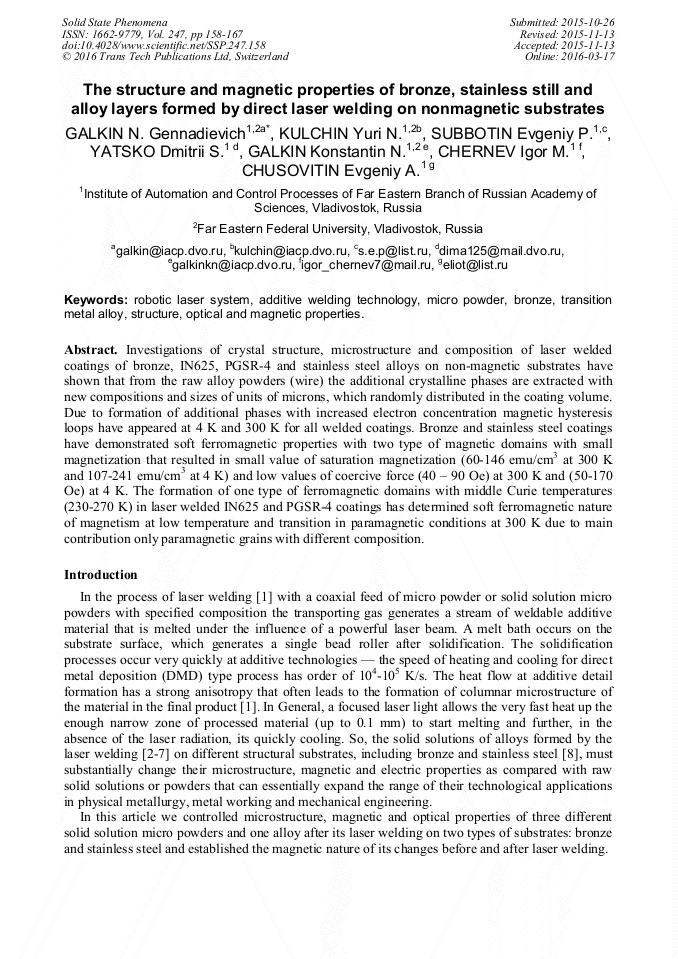

The Structure and Magnetic Properties of Bronze, Stainless still and Alloy Layers Formed by Direct Laser Welding on Nonmagnetic Substrates

Abstract:

Investigations of crystal structure, microstructure and composition of laser welded coatings of bronze, IN625, PGSR-4 and stainless steel alloys on non-magnetic substrates have shown that from the raw alloy powders (wire) the additional crystalline phases are extracted with new compositions and sizes of units of microns, which randomly distributed in the coating volume. Due to formation of additional phases with increased electron concentration magnetic hysteresis loops have appeared at 4 K and 300 K for all welded coatings. Bronze and stainless steel coatings have demonstrated soft ferromagnetic properties with two type of magnetic domains with small magnetization that resulted in small value of saturation magnetization (M_s = 60-146 emu/cm³ at 300 K and M_s = 107-241 emu/cm³ at 4 K) and low values of coercive force (40 – 90 Oe) at 300 K and (50-170 Oe) at 4 K. En existence of one type of ferromagnetic domains with middle Curie temperatures (230-270 K) in laser welded IN625 and PGSR-4 coatings has determined soft ferromagnetic nature of magnetism at low temperature (M_s =274 – 398 emu/cm³) and transition in paramagnetic conditions at 300 K due to main contribution only paramagnetic grains with different composition.

You might also be interested in these eBooks

Physics and Technology of Nanostructured Materials III (Supplement Book)

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 247)

Pages:

158-167

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.247.158

Citation:

Cite this paper

Online since:

March 2016

Authors:

Nikolay G. Galkin, Y.N. Kulchin, Evgenii Petrovich Subbotin, Dmitrii S. Yatsko, Konstantin Nickolaevich Galkin, Igor M. Chernev, Evgeniy Anatolievich Chusovitin

Keywords:

Additive Welding Technology, Bronze, Magnetic Properties, Micro Powder, Optical, Robotic Laser System, Structure, Transition Metal Alloy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Handbook of laser Welding technologies, in: S. Katayama (Ed. ), Elsevier Limited of the Boulevard, Langford Lane, Kidlington, Oxford, OX5 1GB, UK, 2013, 696 P.

DOI: 10.1080/07373939908917538

Google Scholar

[2] M. Ahsan, A.J. Pinkerton, R.J. Moat, J. Shackleton, A comparative study of laser direct metal deposition characteristics using gas and plasma-atomized Ti-6Al-4V powders, Materials science and engineering a-structural materials properties microstructure and processing, 528 (2011).

DOI: 10.1016/j.msea.2011.06.074

Google Scholar

[3] K. Shah, I. ul Haq, A. Khan, S.A. Shah, M. Khan, A.J. Pinkerton, Parametric study of development of Inconel-steel functionally graded materials by laser direct metal deposition, Materials & Design, 54 (2014) 531-538.

DOI: 10.1016/j.matdes.2013.08.079

Google Scholar

[4] S. Shiva, I.A. Palani, S.K. Mishra, C.P. Paul, L.M. Kukreja, Investigations on the influence of composition in the development of Ni-Ti shape memory alloy using laser based additive manufacturing, Optics And Laser Technology, 69 (2015) 44-51.

DOI: 10.1016/j.optlastec.2014.12.014

Google Scholar

[5] C.P. Paul, P. Ganesh, S.K. Mishra, P. Bhargava, J. Negi, A.K. Nath, Investigating laser rapid manufacturing for Inconel-625 components, Optics Laser Technol. 39 (2007) 800–805.

DOI: 10.1016/j.optlastec.2006.01.008

Google Scholar

[6] K. Zhang, W. Liu, X. Shang, Research on the processing experiments of laser metal deposition shaping, Optics Laser Technol. 39 (2007) 549–557.

DOI: 10.1016/j.optlastec.2005.10.009

Google Scholar

[7] K. Mumtaz, N. Hopkinson, Selective laser melting of Inconel 625 using pulse shaping, Rapid Prototyping Journal, 16 (2010) 248-257.

DOI: 10.1108/13552541011049261

Google Scholar

[8] Y.N. Kulchin, N.G. Galkin, E.P. Subbotin, V.M. Dolgorook, D.S. Yatsko, On the principles of the additive technology implementation of composite magnetic coating's formation on non-magnetic substrates by laser welding of micro powders, Solid State Phenomena, 245 (2016).

DOI: 10.4028/www.scientific.net/ssp.245.230

Google Scholar

[9] R. Scomski and J.M.D. Coey, Permanent Magnets (Institute of Physics, Bristol) (1999).

Google Scholar
