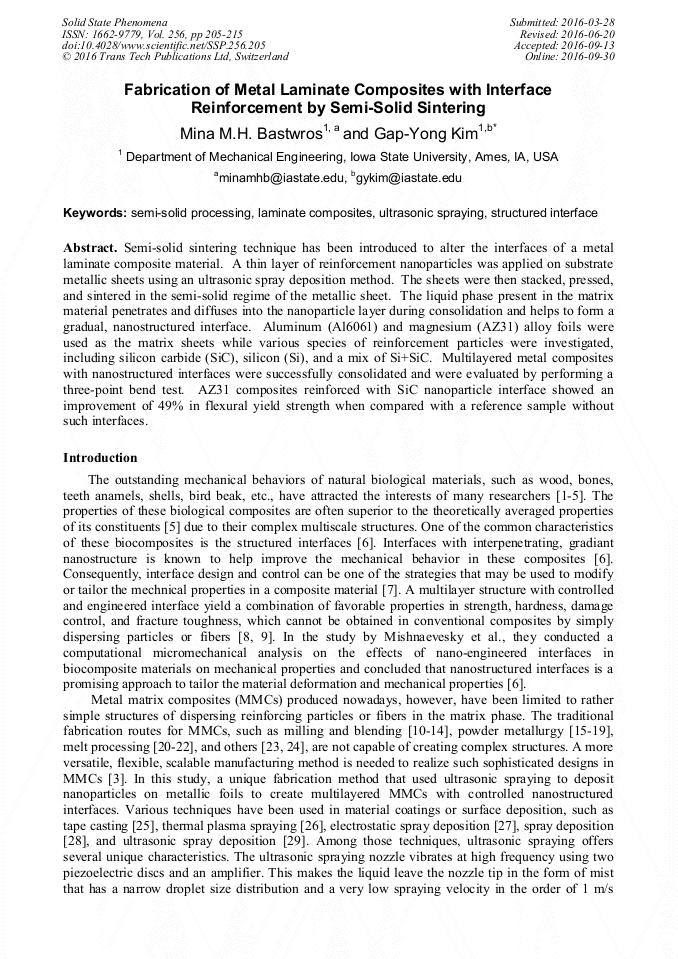

Fabrication of Metal Laminate Composites with Interface Reinforcement by Semi-Solid Sintering

Abstract:

Semi-solid sintering technique has been introduced to alter the interfaces of a metal laminate composite material. A thin layer of reinforcement nanoparticles was applied on substrate metallic sheets using an ultrasonic spray deposition method. The sheets were then stacked, pressed, and sintered in the semi-solid regime of the metallic sheet. The liquid phase present in the matrix material penetrates and diffuses into the nanoparticle layer during consolidation and helps to form a gradual, nanostructured interface. Aluminum (Al6061) and magnesium (AZ31) alloy foils were used as the matrix sheets while various species of reinforcement particles were investigated, including silicon carbide (SiC), silicon (Si), and a mix of Si+SiC. Multilayered metal composites with nanostructured interfaces were successfully consolidated and were evaluated by performing a three-point bend test. AZ31 composites reinforced with SiC nanoparticle interface showed an improvement of 49% in flexural yield strength when compared with a reference sample without such interfaces.

• Periodical: Solid State Phenomena (Volume 256)
• Pages: 205-215
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.256.205
• Online since: September 2016
• Authors: Mina M.H. Bastwros, Gap Yong Kim*
• Keywords: Laminate Composites, Semisolid Processing, Structured Interface, Ultrasonic Spraying

References

[1] P. Fratzl, R. Weinkamer, Nature's hierarchical materials, Progress in Materials Science, 52 (2007) 1263-1334.

DOI: 10.1016/j.pmatsci.2007.06.001

[2] H. Gao, Application of Fracture Mechanics Concepts to Hierarchical Biomechanics of Bone and Bone-like Materials, Int J Fract, 138 (2006) 101-137.

DOI: 10.1007/s10704-006-7156-4

[3] R. Lakes, Materials with structural hierarchy, Nature, 361 (1993) 511-515.

[4] P.R. Rao, Biomimetics, Sadhana, 28 (2003) 657-676.

[5] M.A. Meyers, P. -Y. Chen, A.Y. -M. Lin, Y. Seki, Biological materials: Structure and mechanical properties, Progress in Materials Science, 53 (2008) 1-206.

DOI: 10.1016/j.pmatsci.2007.05.002

[6] L. Mishnaevsky Jr, Nanostructured interfaces for enhancing mechanical properties of composites: Computational micromechanical studies, Composites Part B: Engineering, 68 (2015) 75-84.

DOI: 10.1016/j.compositesb.2014.08.029

[7] J. -K. Kim, Y. -w. Mai, High strength, high fracture toughness fibre composites with interface control—A review, Composites Science and Technology, 41 (1991) 333-378.

DOI: 10.1016/0266-3538(91)90072-w

[8] L. Mishnaevsky Jr, Micromechanics of hierarchical materials: a brief overview, Rev. Adv. Mater. Sci, 30 (2012) 60-72.

[9] L.L. Mishnaevsky Jr, Three-dimensional numerical testing of microstructures of particle reinforced composites, Acta Materialia, 52 (2004) 4177-4188.

DOI: 10.1016/j.actamat.2004.05.032

[10] A.M.K. Esawi, M.A. El Borady, Carbon nanotube-reinforced aluminium strips, Composites Science and Technology, 68 (2008) 486-492.

DOI: 10.1016/j.compscitech.2007.06.030

[11] H.J. Choi, G.B. Kwon, G.Y. Lee, D.H. Bae, Reinforcement with carbon nanotubes in aluminum matrix composites, Scripta Mater, 59 (2008) 360-363.

DOI: 10.1016/j.scriptamat.2008.04.006

[12] A.M.K. Esawi, K. Morsi, A. Sayed, A.A. Gawad, P. Borah, Fabrication and properties of dispersed carbon nanotube-aluminum composites, Mat Sci Eng a-Struct, 508 (2009) 167-173.

DOI: 10.1016/j.msea.2009.01.002

[13] I. Ozdemir, S. Ahrens, S. Mücklich, B. Wielage, Nanocrystalline Al–Al2O3p and SiCp composites produced by high-energy ball milling, Journal of Materials Processing Technology, 205 (2008) 111-118.

DOI: 10.1016/j.jmatprotec.2007.11.085

[14] M. Bastwros, G. -Y. Kim, C. Zhu, K. Zhang, S. Wang, X. Tang, X. Wang, Effect of ball milling on graphene reinforced Al6061 composite fabricated by semi-solid sintering, Composites Part B: Engineering, 60 (2014) 111-118.

DOI: 10.1016/j.compositesb.2013.12.043

[15] C.N. He, N.Q. Zhao, C.S. Shi, X.W. Du, J.J. Li, H.P. Li, Q.R. Cui, An approach to obtaining homogeneously dispersed carbon nanotubes in Al powders for preparing reinforced Al-matrix composites, Adv Mater, 19 (2007) 1128-1132.

DOI: 10.1002/adma.200601381

[16] T. Kuzumaki, K. Miyazawa, H. Ichinose, K. Ito, Processing of carbon nanotube reinforced aluminum composite, Journal of Materials Research, 13 (1998) 2445-2449.

DOI: 10.1557/jmr.1998.0340

[17] H. Kwon, M. Estili, K. Takagi, T. Miyazaki, A. Kawasaki, Combination of hot extrusion and spark plasma sintering for producing carbon nanotube reinforced aluminum matrix composites, Carbon, 47 (2009) 570-577.

DOI: 10.1016/j.carbon.2008.10.041

[18] B. Ogel, R. Gurbuz, Microstructural characterization and tensile properties of hot pressed Al–SiC composites prepared from pure Al and Cu powders, Materials Science and Engineering: A, 301 (2001) 213-220.

DOI: 10.1016/s0921-5093(00)01656-7

[19] M. Ravichandran, A. Naveen Sait, V. Anandakrishnan, Synthesis and forming characteristics of Al–TiO2 powder metallurgy composites during cold upsetting under plane stress state conditions, Journal of Sandwich Structures and Materials, (2015).

DOI: 10.1177/1099636214565762

[20] T. Noguchi, A. Magario, S. Fukazawa, S. Shimizu, J. Beppu, M. Seki, Carbon nanotube/aluminium composites with uniform dispersion, Mater Trans, 45 (2004) 602-604.

DOI: 10.2320/matertrans.45.602

[21] E. Candan, H. Ahlatci, H. Çı̈menoğlu, Abrasive wear behaviour of Al–SiC composites produced by pressure infiltration technique, Wear, 247 (2001) 133-138.

DOI: 10.1016/s0043-1648(00)00499-3

[22] A. Fadavi Boostani, S. Tahamtan, Z.Y. Jiang, D. Wei, S. Yazdani, R. Azari Khosroshahi, R. Taherzadeh Mousavian, J. Xu, X. Zhang, D. Gong, Enhanced tensile properties of aluminium matrix composites reinforced with graphene encapsulated SiC nanoparticles, Composites Part A: Applied Science and Manufacturing, 68 (2015).

DOI: 10.1016/j.compositesa.2014.10.010

[23] C.F. Deng, X.X. Zhang, D.Z. Wang, Q. Lin, A.B. Li, Preparation and characterization of carbon nanotubes/aluminum matrix composites, Mater Lett, 61 (2007) 1725-1728.

DOI: 10.1016/j.matlet.2006.07.119

[24] L.M. Tham, M. Gupta, L. Cheng, Effect of reinforcement volume fraction on the evolution of reinforcement size during the extrusion of Al-SiC composites, Materials Science and Engineering: A, 326 (2002) 355-363.

DOI: 10.1016/s0921-5093(01)01526-x

[25] L. Hao, D. Zhou, Q. Fu, Y. Hu, Multiferroic properties of multilayered BaTiO3–CoFe2O4 composites via tape casting method, J Mater Sci, 48 (2013) 178-185.

DOI: 10.1007/s10853-012-6726-2

[26] R. Hui, Z. Wang, O. Kesler, L. Rose, J. Jankovic, S. Yick, R. Maric, D. Ghosh, Thermal plasma spraying for SOFCs: Applications, potential advantages, and challenges, Journal of Power Sources, 170 (2007) 308-323.

DOI: 10.1016/j.jpowsour.2007.03.075

[27] S. -R. Li, N. Yesibolati, Y. Qiao, S. -Y. Ge, X. -Y. Feng, J. -F. Zhu, C. -H. Chen, Electrostatic spray deposition of porous Fe2V4O13 films as electrodes for Li-ion batteries, Journal of Alloys and Compounds, 520 (2012) 77-82.

DOI: 10.1016/j.jallcom.2011.12.092

[28] I. Concina, N. Memarian, G.S. Selopal, M.M. Natile, G. Sberveglieri, A. Vomiero, Spray-assisted silar deposition of cadmium sulphide quantum dots on metal oxide films for excitonic solar cells, Journal of Power Sources, 240 (2013) 736-744.

DOI: 10.1016/j.jpowsour.2013.05.012

[29] L. Liu, G. -Y. Kim, A. Chandra, Fabrication of solid oxide fuel cell anode electrode by spray pyrolysis, Journal of Power Sources, 195 (2010) 7046-7053.

DOI: 10.1016/j.jpowsour.2010.04.083

[30] M. Dobre, L. Bolle, Practical design of ultrasonic spray devices: experimental testing of several atomizer geometries, Experimental Thermal and Fluid Science, 26 (2002) 205-211.

DOI: 10.1016/s0894-1777(02)00128-0

[31] M. Bastwros, G. -Y. Kim, Fabrication of Aluminum–SiC Laminate Nanocomposite by Ultrasonic Spray Deposited Sheet Bonding1, Journal of Micro and Nano-Manufacturing, 3 (2015) 031005-031005.

DOI: 10.1115/1.4030705

[32] M. Bastwros, G. -Y. Kim, Ultrasonic spray deposition of SiC nanoparticles for laminate metal composite fabrication, Powder Technology, 288 (2016) 279-285.

DOI: 10.1016/j.powtec.2015.10.039

[33] U.P. Muecke, G.L. Messing, L.J. Gauckler, The Leidenfrost effect during spray pyrolysis of nickel oxide-gadolinia doped ceria composite thin films, Thin Solid Films, 517 (2009) 1515-1521.

DOI: 10.1016/j.tsf.2008.08.158

[34] F. Ely, A. Matsumoto, B. Zoetebier, V.S. Peressinotto, M.K. Hirata, D.A. de Sousa, R. Maciel, Handheld and automated ultrasonic spray deposition of conductive PEDOT: PSS films and their application in AC EL devices, Organic Electronics, 15 (2014).

DOI: 10.1016/j.orgel.2014.02.022

[35] Y. Wu, G. -Y. Kim, A.M. Russell, Effects of mechanical alloying on an Al6061–CNT composite fabricated by semi-solid powder processing, Materials Science and Engineering: A, 538 (2012) 164-172.

DOI: 10.1016/j.msea.2012.01.025

[36] Y. Wu, G. -Y. Kim, Carbon nanotube reinforced aluminum composite fabricated by semi-solid powder processing, Journal of Materials Processing Technology, 211 (2011) 1341-1347.

DOI: 10.1016/j.jmatprotec.2011.03.007

[37] A. Esawi, K. Morsi, Dispersion of carbon nanotubes (CNTs) in aluminum powder, Composites Part A: Applied Science and Manufacturing, 38 (2007) 646-650.

DOI: 10.1016/j.compositesa.2006.04.006

[38] Z. Trojanová, V. Gärtnerová, A. Jäger, A. Námešný, M. Chalupová, P. Palček, P. Lukáč, Mechanical and fracture properties of an AZ91 Magnesium alloy reinforced by Si and SiC particles, Composites Science and technology, 69 (2009) 2256-2264.

DOI: 10.1016/j.compscitech.2009.06.016
