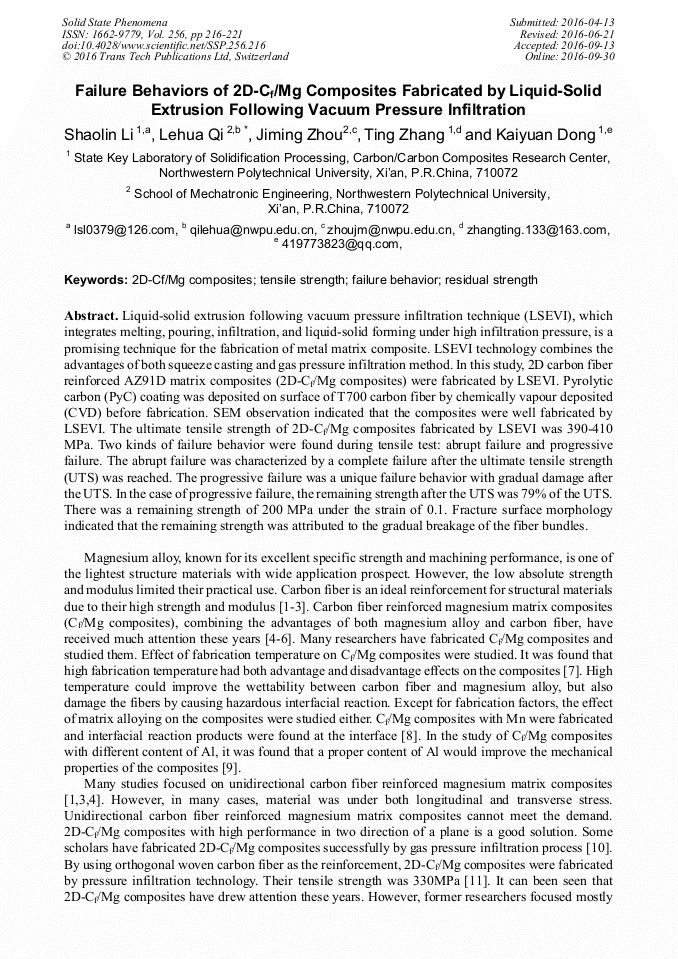

Failure Behaviors of 2D-C_f/Mg Composites Fabricated by Liquid-Solid Extrusion Following Vacuum Pressure Infiltration

Abstract:

Liquid-solid extrusion following vacuum pressure infiltration technique (LSEVI), which integrates melting, pouring, infiltration, and liquid-solid forming under high infiltration pressure, is a promising technique for the fabrication of metal matrix composite. LSEVI technology combines the advantages of both squeeze casting and gas pressure infiltration method. In this study, 2D carbon fiber reinforced AZ91D matrix composites (2D-C_f/Mg composites) were fabricated by LSEVI. Pyrolytic carbon (PyC) coating was deposited on surface of T700 carbon fiber by chemically vapour deposited (CVD) before fabrication. SEM observation indicated that the composites were well fabricated by LSEVI. The ultimate tensile strength of 2D-C_f/Mg composites fabricated by LSEVI was 390-410 MPa. Two kinds of failure behavior were found during tensile test: abrupt failure and progressive failure. The abrupt failure was characterized by a complete failure after the ultimate tensile strength (UTS) was reached. The progressive failure was a unique failure behavior with gradual damage after the UTS. In the case of progressive failure, the remaining strength after the UTS was 79% of the UTS. There was a remaining strength of 200 MPa under the strain of 0.1. Fracture surface morphology indicated that the remaining strength was attributed to the gradual breakage of the fiber bundles.

• Periodical: Solid State Phenomena (Volume 256)
• Pages: 216-221
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.256.216
• Online since: September 2016
• Authors: Shao Lin Li, Le Hua Qi*, Ji Ming Zhou, Ting Zhang, Kai Yuan Dong
• Keywords: 2D-C_f/Mg Composites, Failure Behavior, Residual Strength, Tensile Strength

References

[1] S. Li, L. Qi, T. Zhang, J. Zhou, H. Li, Interfacial microstructure and tensile properties of carbon fiber reinforced Mg–Al-RE matrix composites, J ALLOY COMPD, 663 (2016) 686-692.

DOI: 10.1016/j.jallcom.2015.12.165

[2] L. Qi, L. Ju, J. Zhou, Tensile Properties of 2D-Cf/Mg Composite Fabricated by Liquid-solid Extrusion Following Vacuum Pressure Infiltration, Procedia Engineering, 81 (2014) 1577-1582.

DOI: 10.1016/j.proeng.2014.10.193

[3] S. Zhang, G. Chen, R. Pei, D. Li, P. Wang, G. Wu, Effect of Y addition on the interfacial microstructures and mechanical properties of Cf/Mg composites, Materials Science and Engineering: A, 613 (2014) 111-116.

DOI: 10.1016/j.msea.2014.06.066

[4] W.G. Wang, B.L. Xiao, Z.Y. Ma, Interfacial reaction and nanostructures in Mg matrix composites reinforced with carbon fibers modified by sol–gel method, COMPOS SCI TECHNOL, 87 (2013) 69-76.

DOI: 10.1016/j.compscitech.2013.07.027

[5] L. Qi, J. Guan, J. Liu, J. Zhou, X. Wei, Wear behaviors of Cf/Mg composites fabricated by extrusion directly following vacuum pressure infiltration technique, WEAR, 307 (2013) 127-133.

DOI: 10.1016/j.wear.2013.08.024

[6] W.G. Wang, B.L. Xiao, Z.Y. Ma, Evolution of interfacial nanostructures and stress states in Mg matrix composites reinforced with coated continuous carbon fibers, COMPOS SCI TECHNOL, 72 (2012) 152-158.

DOI: 10.1016/j.compscitech.2011.10.008

[7] F. Wu, J. Zhu, Y. Chen, G. Zhang, The effects of processing on the microstructures and properties of Gr/Mg composites, Materials Science and Engineering: A, 277 (2000) 143-147.

DOI: 10.1016/s0921-5093(99)00548-1

[8] J. Bouix, M.P. Berthet, F. Bosselet, R. Favre, M. Peronnet, O. Rapaud, J.C. Viala, C. Vincent, H. Vincent, Physico-chemistry of interfaces in inorganic-matrix composites, COMPOS SCI TECHNOL, 61 (2001) 355-362.

DOI: 10.1016/s0266-3538(00)00107-x

[9] Z.L. Pei, K. Li, J. Gong, N.L. Shi, E. Elangovan, C. Sun, Micro-structural and tensile strength analyses on the magnesium matrix composites reinforced with coated carbon fiber, J MATER SCI, 44 (2009) 4124-4131.

DOI: 10.1007/s10853-009-3604-7

[10] W. Hufenbach, M. Andrich, A. Langkamp, A. Czulak, Fabrication technology and material characterization of carbon fibre reinforced magnesium, J MATER PROCESS TECH, 175 (2006) 218-224.

DOI: 10.1016/j.jmatprotec.2005.04.023

[11] M. Song, G. Wu, W. Yang, W. Jia, Z. Xiu, G. Chen, Mechanical Properties of Cf/Mg Composites Fabricated by Pressure Infiltration Method, J MATER SCI TECHNOL, 26 (2010) 931-935.

DOI: 10.1016/s1005-0302(10)60150-8

[12] Y. Zhou, D. Sun, Q. Wang, X. Han, Effect of fabrication parameters on the microstructure and mechanical properties of unidirectional Mo-fiber reinforced TiAl matrix composites, Materials Science and Engineering: A, 575 (2013) 21-29.

DOI: 10.1016/j.msea.2013.03.051

[13] J. Zhang, S. Liu, Y. Zhang, Y. Dong, Y. Lu, T. Li, Fabrication of woven carbon fibers reinforced Al–Mg (95–5wt%) matrix composites by an electromagnetic casting process, J MATER PROCESS TECH, 226 (2015) 78-84.

DOI: 10.1016/j.jmatprotec.2015.06.040

[14] L.H. Qi, J.M. Zhou, L.Z. Su, H.B. Ouyang, H.J. Li, Fabrication of Csf/Mg Composites Using Extrusion Directly Following Vacuum Infiltration - Part 2: Forming Process Study, Solid State Phenomena, 141-143 (2008) 91-96.

DOI: 10.4028/www.scientific.net/ssp.141-143.91

[15] J. Liu, L.H. Qi, J.T. Guan, Y.Q. Ma, J.M. Zhou, Compressive behavior of Csf/AZ91D composites by liquid–solid extrusion directly following vacuum infiltration technique, Materials Science and Engineering: A, 531 (2012) 164-170.

DOI: 10.1016/j.msea.2011.10.051

[16] L. Qi, J. Liu, J. Guan, J. Zhou, H. Li, Tensile properties and damage behaviors of Csf/Mg composite at elevated temperature and containing a small fraction of liquid, COMPOS SCI TECHNOL, 72 (2012) 1774-1780.

DOI: 10.1016/j.compscitech.2012.07.014

[17] Y. MA, L. QI, W. ZHENG, J. ZHOU, L. JU, Effect of specific pressure on fabrication of 2D-Cf/Al composite by vacuum and pressure infiltration, T NONFERR METAL SOC, 23 (2013) 1915-(1921).

DOI: 10.1016/s1003-6326(13)62677-1

[18] M. Song, G. Wu, W. Yang, W. Jia, Z. Xiu, G. Chen, Mechanical Properties of Cf/Mg Composites Fabricated by Pressure Infiltration Method, J MATER SCI TECHNOL, 26 (2010) 931-935.

DOI: 10.1016/s1005-0302(10)60150-8
