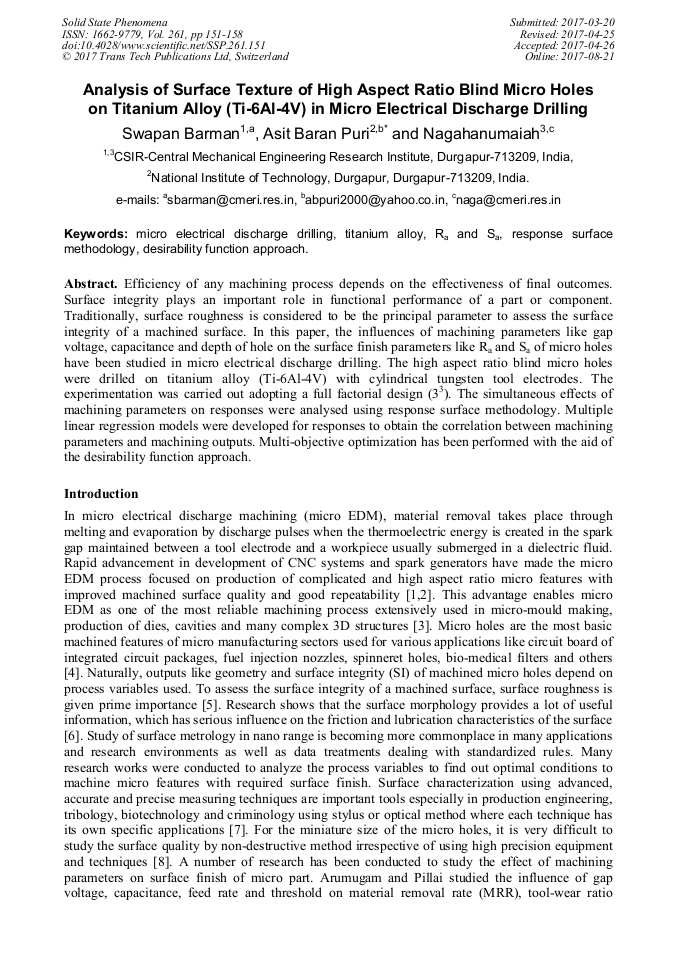

Analysis of Surface Texture of High Aspect Ratio Blind Micro Holes on Titanium Alloy (Ti-6Al-4V) in Micro Electrical Discharge Drilling

Abstract:

Efficiency of any machining process depends on the effectiveness of final outcomes. Surface integrity plays an important role in functional performance of a part or component. Traditionally, surface roughness is considered to be the principal parameter to assess the surface integrity of a machined surface. In this paper, the influences of machining parameters like gap voltage, capacitance and depth of hole on the surface finish parameters like R_a and S_a of micro holes have been studied in micro electrical discharge drilling. The high aspect ratio blind micro holes were drilled on titanium alloy (Ti-6Al-4V) with cylindrical tungsten tool electrodes. The experimentation was carried out adopting a full factorial design (3³). The simultaneous effects of machining parameters on responses were analysed using response surface methodology. Multiple linear regression models were developed for responses to obtain the correlation between machining parameters and machining outputs. Multi-objective optimization has been performed with the aid of the desirability function approach.

• Periodical: Solid State Phenomena (Volume 261)
• Pages: 151-158
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.261.151
• Online since: August 2017
• Authors: Swapan Barman, Asit Baran Puri*, Nagahanumaiah Nagahanumaiah
• Keywords: Desirability Function Approach, Micro Electrical Discharge Drilling, R_a, Response Surface Methodology, S_a, Titanium Alloy

References

[1] D.T. Pham, S.S. Dimov, A. Bigot, K. Popov, Micro-EDM – recent developments and research issues, Jl. of Mat. Proc. Tech. 149(1-3) (2004) 50-57.

DOI: 10.1016/j.jmatprotec.2004.02.008

[2] I. Puertas, C.J. Luis, I. Alvarez, Analysis of the influence of EDM parameters on surface quality, MRR and EW of WC-Co, Jl. of Mat. Proc. Tech. 153/154 (2004) 1026-1032.

DOI: 10.1016/j.jmatprotec.2004.04.346

[3] I. Alting, F. Kimourta, H.N. Hansen, G. Bissacco, Micro Engineering, Ann. CIRP Manuf. Tech., 52(22) (2003) 635-658.

DOI: 10.1016/s0007-8506(07)60208-x

[4] T. Masuzawa, State of art of micromachining, Ann. CIRP Manuf. Tech., 49(2) (2000) 473-488.

DOI: 10.1016/s0007-8506(07)63451-9

[5] J.C. Outeiro, Surface integrity predictions and optimisation of machining conditions in the turning of AISI H13 tool steel, Int. Jl. of Mach. and Machinability of Mat., 15(1-2) (2014) 122–134.

DOI: 10.1504/ijmmm.2014.059189

[6] Z.J. Chen, J.H. Shen, Y.T. Dai, Research on the Surface Roughness Parameters of Micro-EDM, Key Engineering Materials, 572 (2013) 281-286.

DOI: 10.4028/www.scientific.net/kem.572.281

[7] S.H.R. Ali, Advanced measuring techniques in dimensional and surface metrology, Proc. of the 9th Int. Sci. Conf. of Coordinate Measuring Technique (IMEKO-CT14), Bielsko-Biała, Poland (2012).

[8] S. Barman, Nagahanumaiah and A.B. Puri, Investigation on Shape, Size, Surface Quality and Elemental Characterization of High Aspect Ratio Blind Micro Holes in Die Sinking Micro EDM, Int. Jl. of Adv. Manuf. Tech., 76(1) (2015) 115–126.

DOI: 10.1007/s00170-013-5243-z

[9] Arumugam, K. and Pillai, H. , Optimization of the die-sinking micro-EDM process for multiple performance characteristics using the Taguchi-based grey relational analysis, Materials and Technology, 48(1) (2014) 27–32.

[10] Sabur, A., Moudood, A., Ali, M.Y. and Maleque, M.A., Investigation of surface roughness in micro-electro discharge machining of nonconductive ZrO2 for MEMS application, IOP Conf. Series: Materials Science and Engineering, 53 (2013) 012090.

DOI: 10.1088/1757-899x/53/1/012090

[11] D.C. Montgomery, Design and Analysis of Experiments, fifth ed., John Wiley & Sons, New York (2001).

[12] R.H. Myers, D.C. Montgomery, C.M. Anderson-Cook, Response surface methodology: Process and product optimization using designed Experiments, third ed., John Wiley & Sons, New Jersey (2009).
