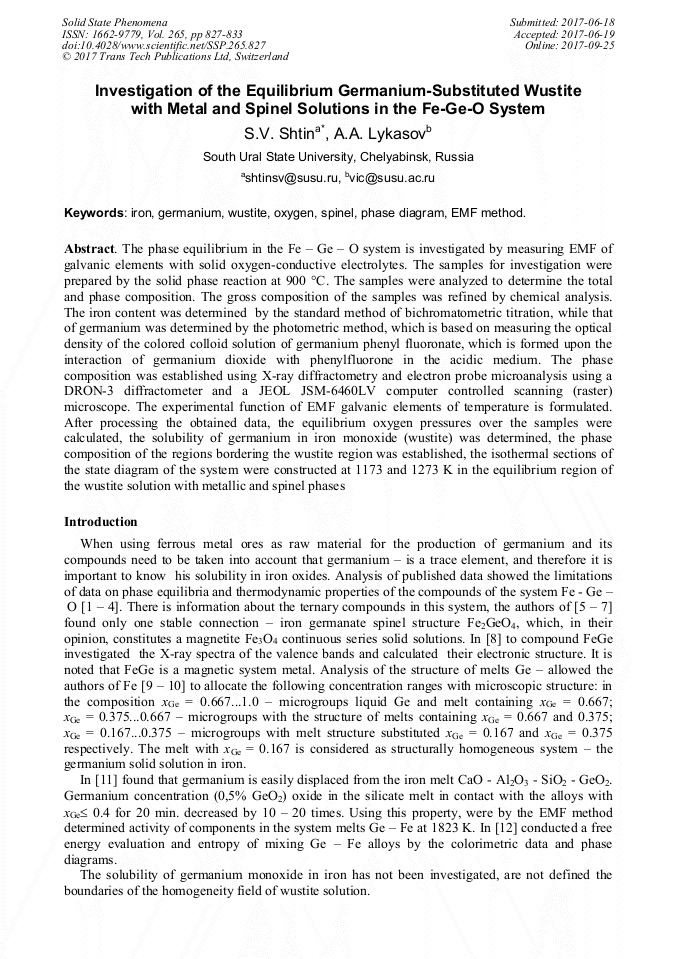

Investigation of the Equilibrium Germanium-Substituted Wustite with Metal and Spinel Solutions in the Fе-Gе-O System

Abstract:

The phase equilibrium in the Fe-Ge-O system is investigated by measuring EMF of galvanic elements with solid oxygen-conductive electrolytes. The samples for investigation were prepared by the solid phase reaction at 900 °C. The samples were analyzed to determine the total and phase composition. The gross composition of the samples was refined by chemical analysis. The iron content was determined by the standard method of bichromatometric titration, while that of germanium was determined by the photometric method, which is based on measuring the optical density of the colored colloid solution of germanium phenyl fluoronate, which is formed upon the interaction of germanium dioxide with phenylfluorone in the acidic medium. The phase composition was established using X-ray diffractometry and electron probe microanalysis using a DRON-3 diffractometer and a JEOL JSM-6460LV computer controlled scanning (raster) microscope. The experimental function of EMF galvanic elements of temperature is formulated. After processing the obtained data, the equilibrium oxygen pressures over the samples were calculated, the solubility of germanium in iron monoxide (wustite) was determined, the phase composition of the regions bordering the wustite region was established, the isothermal sections of the state diagram of the system were constructed at 1173 and 1273 K in the equilibrium region of the wustite solution with metallic and spinel phases

• Periodical: Solid State Phenomena (Volume 265)
• Pages: 827-833
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.265.827
• Online since: September 2017
• Authors: S.V. Shtin*, A.A. Lykasov
• Keywords: EMF Method, Germanium, Iron, Oxygen, Phase Diagram, Spinel, Wüstite

References

[1] О. Kubaschewskii, Diagrams of binary systems based on iron, Metallurgy, Moscow, (1985).

[2] О.А. Bannih, P.B. Budberg, S.P. Alisova, Diagrams of binary and multicomponent systems based on iron, Metallurgy, Moscow, (1986).

[3] N.P. Lyakishev, The diagrams of binary metallic systems, Engineering, Moscow, (1996).

[4] I.V. Таnаnаеv, Germanium Chemicals, Chemistry, Moscow, (1967).

[5] G.V. Bitsh, A.N. Men, Y.A. Petrov, Features of magnetic, electrical, crystallographic properties of iron oxides, germanium oxides substituted, Solid State Physics. 30 (1988) 2924-2928.

[6] G.V. Bitsh, Germany's influence on the structure and properties of spinel in the Fe-Ge-O system, Sverdlovsk, (1988).

[7] S.А. Gordon, M.A. Menkovski, V.F. Tchurbakov, Interaction of ferrous oxide and germanium dioxide, Journal of Inorganic Chemistry. 9(4) (1964) 917-920.

[8] I.N. Shabanova, V.I. Kormilets, L.D. Zagrebin, Electronic structure of crystalline FeSi and FeGe, Journal of Structural Chemistry. 30(6) (1998) 1098-1102.

DOI: 10.1007/bf02903602

[9] V.P. Kazimirоv, V.A. Shovskii, V.E. Sokolskii, Microlumpy structures of binary melts 3d-transition metals with germanium. Melts. 4 (1996) 3-8.

[10] Е.S. Levin, V.P. Yakubtchik, Electron diffraction study of the structure of amorphous films Fe3G, Inorganic Materials. 11 (12) (1975) 2154-2157.

[11] I.N. Таnutrov, N.A. Vatolin, A.I. Okunev, The study of active components in the melts of iron-germanium-carbon method of electromotive forces, Journal of Physical Chemistry. 42(11) (1968) 2805-2809.

[12] G.I. Batalin, A.N. Shlapak, Assessment of the free energy and the entropy of mixing alloy systems Ge–Co, Ge–Fe from calorimetric data and phase diagrams, Inorganic Materials. 20(1) (1984) 77-79.

[13] А.А. Lylasov, K. Karel, A.N. Men, M.T. Varshavski, G.G. Mihailov, Physico-chemical properties of wustite and wustite solutions, Sverdlovsk, (1987).

[14] Z.S. Muhina, Methods of analysis of metals and alloys, Moscow, (1959).

[15] M.I. Bulatov, A Practical Guide to photocolorimetry and spectrophotometric methods of analysis, Leningrad, (1972).

[16] S.V. Shtin, Fe - Ge - O system phase diagram study in the temperature range 1100 – 1300 K, Dissertation: Chelyabinsk, (2007).

[17] S.V. Shtin, А.А. Lylasov, Phase equilibria in the system Fe - Fe3O4 - Fe2GeO4 – Ge, Bulletin of South Ural State University. Series Mathematics, Physics, Chemistry,. 19(91) (2007) 118-121.

[18] S.V. Shtin, E.A. Pilipenko, А.А. Lylasov, Equilibrium solutions and metal vyustitnogo system Fe - Ge – O, Bulletin of South Ural State University. Metallurgy, Series. 5. 3(43) (2005) 51-54.

[19] S.V. Shtin, А.А. Lylasov, Equilibrium study vyustitnogo spinel and solutions in the system Fе–Gе–O, Proceedings of the universities. Non-ferrous metallurgy. 5 (2013) 12-16.

[20] S.V. Shtin, А.А. Lykasov, Investigation into the Equilibrium of the Wustite and Spinel Solution in the Fe-Ge-O System, Russian Jornal of Non-Ferrous Metals. 54(6) (2013) 429-432.

DOI: 10.3103/s1067821213060278
