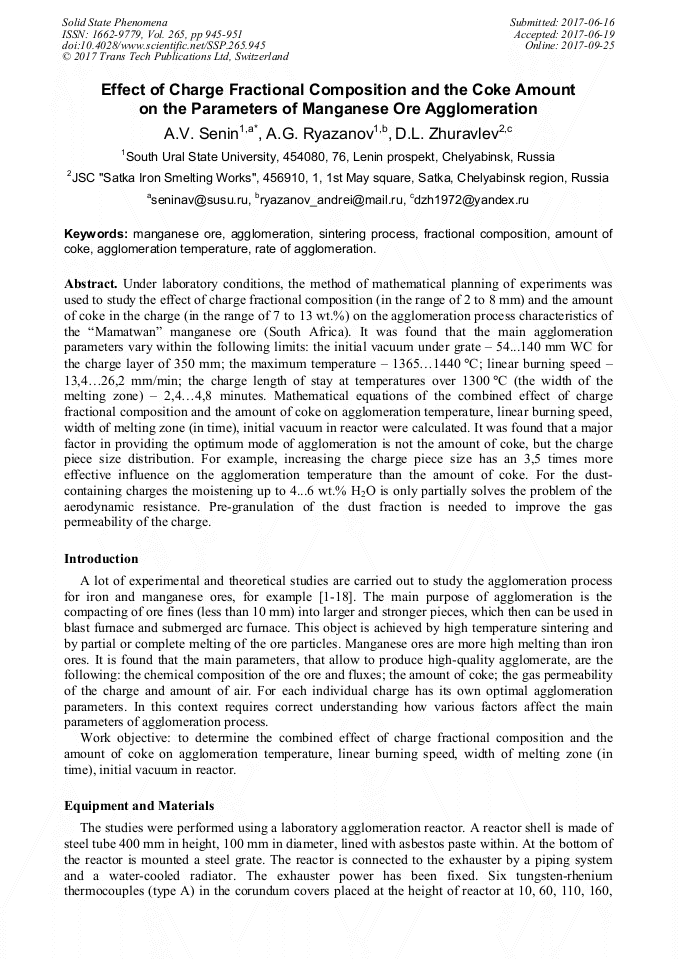

Effect of Charge Fractional Composition and the Coke Amount on the Parameters of Manganese Ore Agglomeration

Abstract:

Under laboratory conditions, the method of mathematical planning of experiments was used to study the effect of charge fractional composition (in the range of 2 to 8 mm) and the amount of coke in the charge (in the range of 7 to 13 wt.%) on the agglomeration process characteristics of the “Mamatwan” manganese ore (South Africa). It was found that the main agglomeration parameters vary within the following limits: the initial vacuum under grate – 54...140 mm WC for the charge layer of 350 mm; the maximum temperature – 1365...1440 °С; linear burning speed – 13,4...26,2 mm/min; the charge length of stay at temperatures over 1300 °С (the width of the melting zone) – 2,4...4,8 minutes. Mathematical equations of the combined effect of charge fractional composition and the amount of coke on agglomeration temperature, linear burning speed, width of melting zone (in time), initial vacuum in reactor were calculated. It was found that a major factor in providing the optimum mode of agglomeration is not the amount of coke, but the charge piece size distribution. For example, increasing the charge piece size has an 3,5 times more effective influence on the agglomeration temperature than the amount of coke. For the dust-containing charges the moistening up to 4...6 wt.% H₂O is only partially solves the problem of the aerodynamic resistance. Pre-granulation of the dust fraction is needed to improve the gas permeability of the charge.

• Periodical: Solid State Phenomena (Volume 265)
• Pages: 945-951
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.265.945
• Online since: September 2017
• Authors: A.V. Senin*, A.G. Ryazanov, D.L. Zhuravlev
• Keywords: Agglomeration, Agglomeration Temperature, Amount of Coke, Fractional Composition, Manganese Ore, Rate of Agglomeration, Sintering Process

References

[1] E.F. Vegman, Theory and technology of agglomeration, Metallurgy, Moscow, (1974).

[2] B. Wolfgang, Pietsch agglomeration process – phenomena, technologies, equipment, Wiley, Weinheim, (2002).

[3] V.I. Korotych, Yu.A. Frolov, G.N. Bezdezhsky, Agglomeration of ore materials, Publishing house of the Ural State Technical University-UPI, Yekaterinburg, (2003).

[4] S.N. Petrushov, Modern agglomeration process, Publishing house of Donbass State Technical University, Alchevsk, (2006).

[5] V.I. Zhuchkov, L.A. Smirnov, V.P. Zaiko, U.I. Voronov, The technology of manganese ferroalloys, part 1, High-carbon ferromanganese, Ural Branch of the Russian Academy of Sciences, Yekaterinburg, (2007).

[6] O.A. Artykbaev, A.K. Torgovets, Theory and technology of materials preparation for the metallurgical processes, part II, Karaganda State Industrial University, Temirtau, (2010).

[7] D.A. Kovalev, N.D. Vanyukova, V.P. Ivashchenko, B.P. Krikunov, M.V. Yagolnik, M.N. Boyko, Theoretical foundations of agglomerated raw materials production, IMA-press, Dnepropetrovsk, (2011).

[8] S.V. Krivenko, The intensification of agglomeration process based on the theory of development of layer gas dynamics, Publishing house of the Priazovsky State Technical University, Mariupol, (2016).

[9] J. Daa Vittila, H. Krogerus, P. Oikarinen, R. Sarkkinen, Sintered manganese ore and its use in ferromanganese production, Proceedings of the ninth international ferroalloys congress (INFACON IX), The ferroalloys association, Washington DC, (2001).

[10] K.P. Davey, The development of an agglomerate through the use of FeMn waste, Proceedings of the tenth international ferroalloy congress (INFACON X), Document transformation technologies, Irene, (2004) 272-280.

[11] M.M. Tangstad, D. Leroy, E. Ringdalen, Behavior of agglomerates in ferromanganese production, Proceedings of the twelfth international ferroalloys congress (INFACON XII), Outotec oyj, Espoo, (2010) 457-465.

[12] V. Singh, T.K. Ghosh, Y. Ramamurthy, V. Tathavadkar, Beneficiation and agglomeration process to utilize low-grade ferruginous manganese ore fines, Int. J. Miner. Process. 89 (2011) 84-86.

DOI: 10.1016/j.minpro.2011.03.003

[13] I.V. Bezverkhy, A.A. Tomasz, Research of influence of intensifying factors on the agglomeration process indicators, Proceedings of Donetsk National Technical University. Metallurgy 11 (159) (2009) 3-12.

[14] S.V. Krivenko, A.A. Tomasz, V.P. Russkih, The intensification of the agglomeration process by increasing the fuel combustion rate in the layer, Metal and casting of Ukraine. 7-8 (2009) 63-68.

[15] E. Zh. Berdyshev, Zh.O. Nurmaganbetov, Development of sintering technology of fine- and coarsely dispersed manganese ores, Science and technology of Kazakhstan. 1-2 (2011) 17-20.

[16] A.S. Tleuov, S.T. Tleuova, Zh.M. Altybayev, Manganese ore agglomeration using a carbonaceous waste, Modern science-based technologies. 8 (2014) 71-74.

[17] V.A. Utkov, O.V. Zyryanova, V. Yu. Bazhin, Features of manganese agglomerate sintering, Ores enrichment. 4 (2015) 17-20.

[18] A.A. Odintsov, Analysis of the status and prospects of development of the two-layer technology of agglomeration, Bulletin of the Siberian State Industrial University. 1(15) (2016) 3-8.

[19] N.A. Spirin, V.V. Lavrov, Methods of planning and processing of engineering experiment results, Publishing house of the Ural State Technical University-UPI, Yekaterinburg, (2004).

[20] V.V. Nalimov, N.A. Chernova, Statistical methods of the extreme experiments planning, Science, Moscow, (2010).
