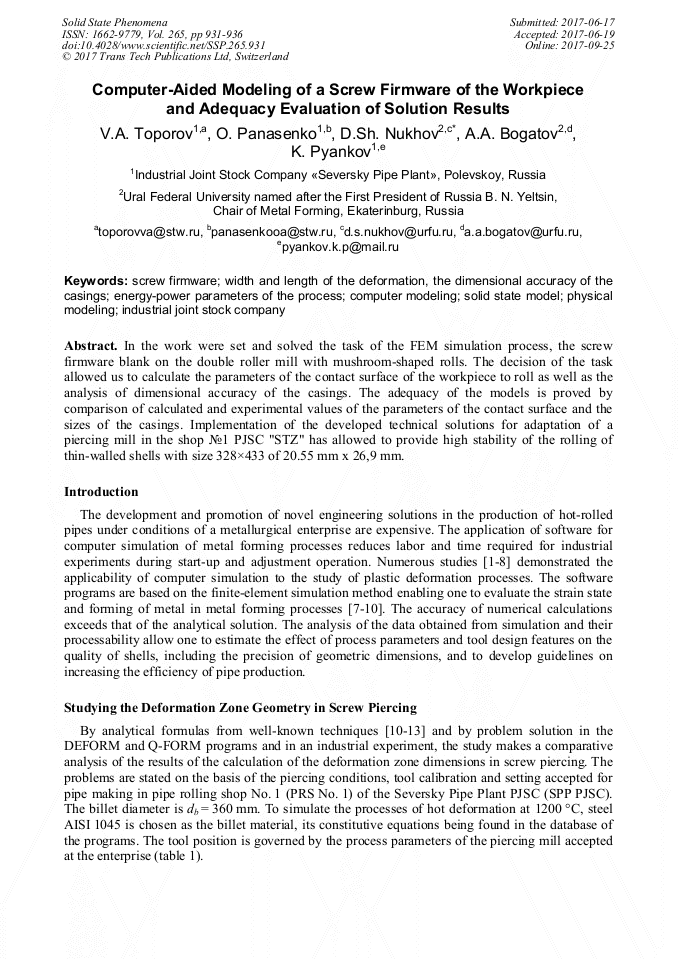

Computer-Aided Modeling of a Screw Firmware of the Workpiece and Adequacy Evaluation of Solution Results

Abstract:

In the work were set and solved the task of the FEM simulation process, the screw firmware blank on the double roller mill with mushroom-shaped rolls. The decision of the task allowed us to calculate the parameters of the contact surface of the workpiece to roll as well as the analysis of dimensional accuracy of the casings. The adequacy of the models is proved by comparison of calculated and experimental values of the parameters of the contact surface and the sizes of the casings. Implementation of the developed technical solutions for adaptation of a piercing mill in the shop No1 PJSC "STZ" has allowed to provide high stability of the rolling of thin-walled shells with size 328×433 of 20.55 mm x 26,9 mm.

• Periodical: Solid State Phenomena (Volume 265)
• Pages: 931-936
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.265.931
• Online since: September 2017
• Authors: Vladimir Toporov, O. Panasenko, Danis Sh. Nukhov*, Aleksandr Bogatov, K. Pyankov
• Keywords: Computer Modeling, Dimensional Accuracy of Casings, Energy-Power Parameters of Process, Industrial Joint Stock Company, Length of Deformation, Physical Modeling, Screw Firmware, Solid State Model, Width of Deformation

References

[1] P.M. Dixit, U.S. Dixit, Modeling of Metal Forming and Machining Processes. Manchester Materials Science Centre, Manchester, (2008).

[2] H. Dyja, K. Sobczak, A. Kawalek, The analysis of the influence of varying types of shape grooves on the behavior of internal material discontinuities during rolling, Metalurgija. 52 (2013) 35-38.

[3] A.A. Bogatov, D.A. Pavlov, S.V. Lipnyagov, V.N. Suvorov, E.A. Pavlova, Rolling hot deformed pipes on a stub mandrel. Steel in Translation. 44 (2014) 912-915.

DOI: 10.3103/s0967091214120055

[4] S. Wang, X. Yu, B. Yang, M. Zhang, H. Wu, FEM Analysis and Experimental Verification of the Integral Forging Process for AP1000 Primary Coolant Pip. Metallurgical and Materials Transactions A: Physical Metallurgy and Materials Science. 47 (2016).

DOI: 10.1007/s11661-016-3696-z

[5] X. Yang, Experimental and modelling on influence of processing parameters in powder HVC. Australian Journal of Mechanical Engineering. 9 (2016) 1-5.

[6] A. Pesin, D. Pustovoytov, Finite element simulation of heat transfer during cryogenic asymmetric sheet rolling of aluminum alloys, Key Engineering Materials. 716 (2016) 692-699.

DOI: 10.4028/www.scientific.net/kem.716.692

[7] A. Pesin, C. Mikhail, K. Aleksey, P. Denis, Finite element modeling of shear strain in rolling with velocity asymmetry in multi-roll calibers, Key Engineering Materials, 622-623 (2014) 912-918.

DOI: 10.4028/www.scientific.net/kem.622-623.912

[8] A. Naizabekov, S. Lezhnev, A. Arbuz, E. Panin, Computer simulation of the combined process "helical Rolling-Pressing, Key Engineering Materials. 716 (2016) 614-619.

DOI: 10.4028/www.scientific.net/kem.716.614

[9] V.L. Prisekin, G.I. Rastorguev, Fundamentals of the finite element method in mechanics of deformable bodies, Novosibirsk, (2010).

[10] K.Y. Bathe, Finite element Methods, Moscow, (2010).

[11] I.N. Potapov, A.P. Kolikov, V.M. Druyan, Theory of Pipe Making, Metallurgiya, Moscow, (1991).

[12] V.N. Danchenko, A.P. Kolikov, B.A. Romantsev, Pipe-Making Technology, Intermetinzhiniring, Moscow, (2002).

[13] A.N. Nikulin, V. Ya. Osadchii, C Analysis of the deformational and boundary conditions in screw rolling, Russian Metallurgy (Metally). 3 (2000) 53-59.

[14] The Method of rolling shells at piercing mill, RU patent 2419497.

[15] A method of producing a hollow sleeves on the piercing mill, RU patent 2549025.
