Effect of Semisolid Metal Casting of Large Forging Ingots on Quality of Large-Sized Forgings Produced

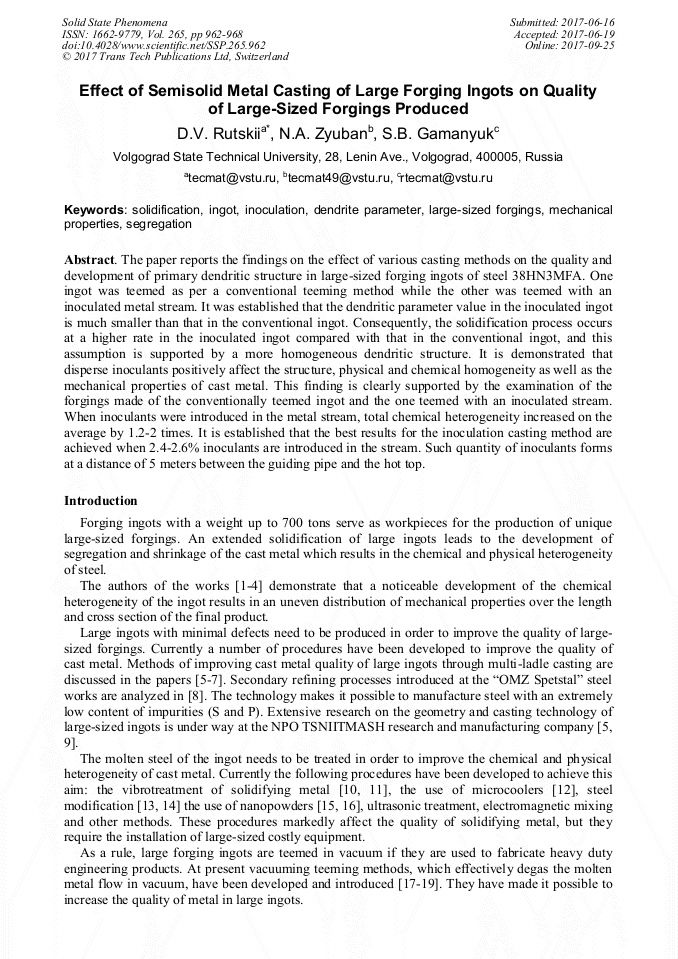

Article Preview

Abstract:

The paper reports the findings on the effect of various casting methods on the quality and development of primary dendritic structure in large-sized forging ingots of steel 38ХН3МФА. One ingot was teemed as per a conventional teeming method while the other was teemed with an inoculated metal stream. It was established that the dendritic parameter value in the inoculated ingot is much smaller than that in the conventional ingot. Consequently, the solidification process occurs at a higher rate in the inoculated ingot compared with that in the conventional ingot, and this assumption is supported by a more homogeneous dendritic structure. It is demonstrated that disperse inoculants positively affect the structure, physical and chemical homogeneity as well as the mechanical properties of cast metal. This finding is clearly supported by the examination of the forgings made of the conventionally teemed ingot and the one teemed with an inoculated stream. When inoculants were introduced in the metal stream, total chemical heterogeneity increased on the average by 1.2-2 times. It is established that the best results for the inoculation casting method are achieved when 2.4-2.6% inoculants are introduced in the stream. Such quantity of inoculants forms at a distance of 5 meters between the guiding pipe and the hot top.

You might also be interested in these eBooks

Info:

Periodical:

Solid State Phenomena (Volume 265)

Pages:

962-968

Citation:

Online since:

September 2017

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] S. Zhulyev, A. Fomenko, D. Fedorov, D. Rutskii, K. Titov, E. Buzinov Ingots for large forgings, Stal, 11 (2005) 41-44.

Google Scholar

[2] D. Rutskii, N. Zyuban, K. Titov Improvement of the chemical heterogeneity and increase in the stability of mechanical properties of large-sized engineering products, Metallurgist, (9) 2009 73-76.

Google Scholar

[3] D. Rutskii, S. Zhulyev, K. Titov Segregation in large-sized forged products, Problemy chernoj metallurgii i materialovedenija, 2 (2008) 21-27.

Google Scholar

[4] V. Lebedev, V. Korovin, P. Varakin Large forgings for turbine generator shafts, Mashinostroenie, Moscow, (1968).

Google Scholar

[5] V. Dub, A. Romachkin, A. Malginov et al., Development of ingot pouring technology, Tjazheloe mashinostroenie, 8 (2012) 2-8.

Google Scholar

[6] W. Tu, X. Zhang, H. Shen, B. Liu Numerical simulation on multiple pouring process for a 292t steel ingot, Chine Foundry, 11 (2014) 52-58.

Google Scholar

[7] H. Zhen, H. Shen, Liu Bai-Cheng A numerical study of the effect of multiple pouring on macrosegregation in a 438-Ton steel ingot, Acta Metallurgica Sinica, 28 (2015) 1123-1133.

DOI: 10.1007/s40195-015-0303-z

Google Scholar

[8] V. Durynin, Ju. Solncev Analysis and development of manufacturing technology to increase the lifespan of steel products fabricated from heavy duty large-sized forgings, St. Peterburg, (2006).

Google Scholar

[9] V. Dub, A. Romachkin, A. Malginov, I. Ivanov et al., Analysis of ingot configuration effect on chemical element distribution through ingot cross section, Problemy chernoj metallurgii i materialovedenija, 1 (2014) 5-18.

Google Scholar

[10] A. Smirnov, V. Piljushenko, S. Momot, V. Amitan Molten metal solidification under external impact, VIK, Donetsk, (2002).

Google Scholar

[11] V. Efimov, A. Jel'darhanov Modern technologies of alloy teeming and crystallization, Mashinostroenie, Moscow, (1998).

Google Scholar

[12] S. Zatulovskij, V. Efimov Some aspects of the theory and technology of suspension casting, Suspenzionnoe lit'e, IPL AN USSR, Kiev, (1977).

Google Scholar

[13] V. Nejmark A modified steel ingot, Metallurgija, Moscow, (1977).

Google Scholar

[14] S. Guzenkov, D. Fedorov, D. Rutskii et al., Improving the structural strength of cast steel by modification with dispersion powders, Stal, 3 (2010) 101-104.

Google Scholar

[15] V. Molotilov Nanotechnologies as a new trend in precision metallurgy, Stal, 1 (2005) 97-100.

Google Scholar

[16] V. Sidelnikov, V. Gurdin The effect of ultradispersed powders on crystal shape and crystallizing system properties, Metallurgija mashinostroenija, 6 (2004) 24-26.

Google Scholar

[17] T. Ubukata, T Suzuki, S. Ueda and T. Shibata, Dehydrogenation in Large Ingot Casting Process, Proceedings ICS 2008: The 4th International Congress on the Science and Technology of Steelmaking, Gifu, (2008) 227-230.

Google Scholar

[18] N. Zyuban, D. Rutskii, S. Gamanyuk Intensifying degassing process during vacuum casting and analyzing the quality of the forgings produced, Zagotovitel'nye proizvodstva v mashinostroenii, 12 (2011) 8-11.

Google Scholar

[19] S. Zhulyev, N. Zyuban, RU Patent 42454, A device for vacuum ingot pouring with inoculants (options).

Google Scholar

[20] S. Zhulyev, N. Zyuban, K. Titov, RU Patent 46694, Fire-resistant pouring nozzle for vacuum casting of ingots and continuously cast billets.

Google Scholar

[21] E. Buzinov, D. Rutskii, A. Mozgovoy, N. Zyuban, Yu. Shelukhina, RU Patent 2010614950, Volgograd, (2010).

Google Scholar

[22] S. Saltykov, Stereometric metallography, Metallurgija, Moskva, (1976).

Google Scholar
