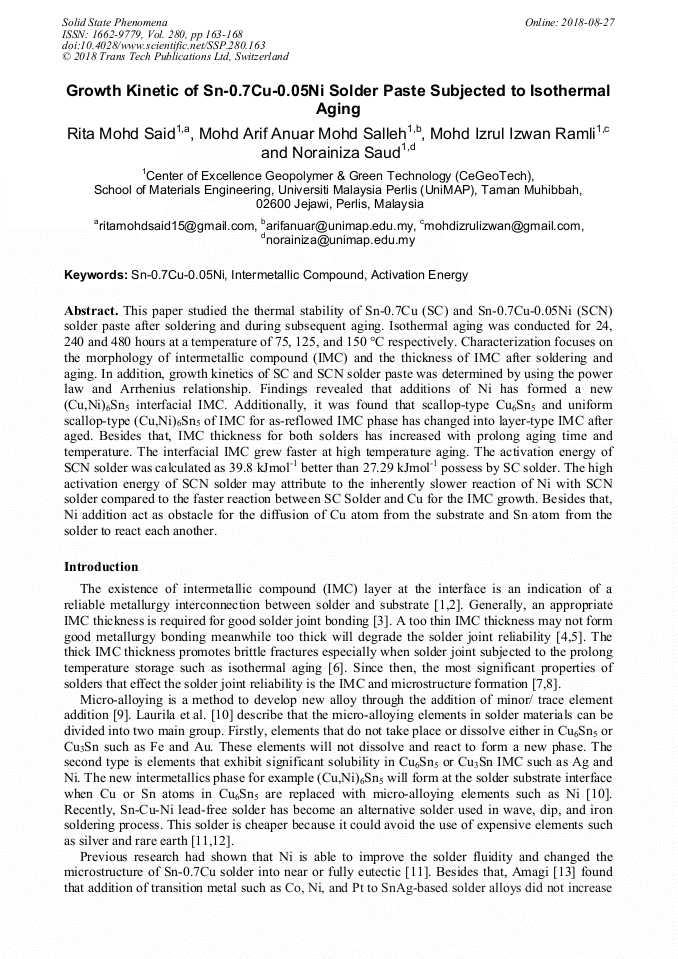

Growth Kinetic of Sn-0.7Cu-0.05Ni Solder Paste Subjected to Isothermal Aging

Abstract:

This paper studied the thermal stability of Sn-0.7Cu (SC) and Sn-0.7Cu-0.05Ni (SCN) solder paste after soldering and during subsequent aging. Isothermal aging was conducted for 24, 240 and 480 hours at a temperature of 75, 125, and 150 °C respectively. Characterization focuses on the morphology of intermetallic compound (IMC) and the thickness of IMC after soldering and aging. In addition, growth kinetics of SC and SCN solder paste was determined by using the power law and Arrhenius relationship. Findings revealed that additions of Ni has formed a new (Cu,Ni)₆Sn₅ interfacial IMC. Additionally, it was found that scallop-type Cu₆Sn₅ and uniform scallop-type (Cu,Ni)₆Sn₅ of IMC for as-reflowed IMC phase has changed into layer-type IMC after aged. Besides that, IMC thickness for both solders has increased with prolong aging time and temperature. The interfacial IMC grew faster at high temperature aging. The activation energy of SCN solder was calculated as 39.8 kJmol^-1 better than 27.29 kJmol^-1 possess by SC solder. The high activation energy of SCN solder may attribute to the inherently slower reaction of Ni with SCN solder compared to the faster reaction between SC Solder and Cu for the IMC growth. Besides that, Ni addition act as obstacle for the diffusion of Cu atom from the substrate and Sn atom from the solder to react each another.

• Periodical: Solid State Phenomena (Volume 280)
• Pages: 163-168
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.280.163
• Online since: August 2018
• Authors: Rita Mohd Said, Mohd Arif Anuar Mohd Salleh, Mohd Izrul Izwan Ramli, Norainiza Saud
• Keywords: Activation Energy, Intermetallic Compound, Sn-0.7Cu-0.05Ni

References

[1] N.Y. Zhao, Y. Zhong, M. L. Huang, H. T. Ma, and W. Dong: Sci. Rep. Vol. 5 (2015), p.13491.

[2] M.A.A. Mohd Salleh, M.H.Z. Hazizi, Z.A. Ahmad, K. Hussin, and K.R. Ahmad: Adv. Mater. Res. (2011).

[3] S.A. Musa, M.A.A. Mohd Salleh, and N. Saud: Adv. Mater. Res. Vol. 795 (2013), pp.518-521.

[4] A.T. Tan, A.W. Tan, and F. Yusof: Sci. Technol. Adv. Mater. Vol. 16 (2015).

[5] F. Somidin, M.A.A. Mohd Salleh, and K.R. Ahmad: Adv. Mater. Res. Vol. 620 (2013), pp.105-111.

[6] Y. Tang, S.M. Luo, K.Q. Wang, and G.Y. Li: J. Alloys Compd Vol. 684 (2016), pp.299-309.

[7] M.A.A. Mohd Salleh, S. McDonald, and K. Nogita: Appl. Mechanics and Materials Vol. 421 (2013), pp.260-266.

[8] M.A.A. Mohd Salleh, C.M. Gourlay, J.W. Xian, S.A. Belyakov, H. Yasuda, S.D. McDonald, and K. Nogita: Sci. Rep. Vol. 7 (2017), p.40010.

[9] G. Zeng, S.D. McDonald, D. Mu, Y. Terada, H. Yasuda, Q. Gu, M.A.A.M. Salleh, and K. Nogita: J. Alloys Compd. Vol. 685 (2016), pp.471-482.

[10] T. Laurila, J. Hurtig, V. Vuorinen, and J.K. Kivilahti: Microelectron. Reliab. Vol. 49 (2009), p.242–247.

[11] K. Nogita, and T. Nishimura: Scripta Mater. Vol. 59(2) (2008), pp.191-194.

[12] M.A.A. Mohd Salleh, S.D. McDonalda, Y. Terada, H. Yasuda, and K. Nogita: Mater. Des. Vol. 82 (2015), p.136–147.

[13] M. Amagai: Microelectron. Reliab. Vol. 48 (2008), pp.1-16.

[14] M.A.A. Mohd Salleh, S.D. McDonald, C.M. Gourlay, S.A. Belyakov, H. Yasuda, and K. Nogita: J. Electron. Mater. Vol. 45 (2016).

[15] M. A. A. Mohd Salleh, S.D. McDonald, and K. Nogita: J. Mater. Process. Technol. Vol. 242 (2017), pp.235-245.

[16] J. -W. Yoon, S.-W. Kim, and S.-B. Jung: J. Alloys Compd. Vol. 391 (2005), p.82–89.

[17] R.M. Said, M.A.A. Mohd Salleh, M.N. Derman, M.I.I. Ramli, N.M. Nasir, and N. Saud: Key Eng. Mater. Vol. 700 (2016), pp.123-131.

[18] Z. L. Li, L.X. Cheng, G.Y. Li, J.H. Huang, and Y.Tang: J. Alloys Compd. Vol. 697 (2017), pp.104-113.

[19] C.-h Wang, C.-c. Wen, and C.-y. Lin: J. Alloys Compd. Vol. 662 (2016), pp.475-483.

[20] M. J. Rizvi, C. Bailey, Y.C. Chan, M.N. Islam, and H. Lu: J. Alloys Compd. Vol. 438 (2007), p.122–128.

[21] K. Kanlayasiri, and K. Sukpimai: J. Alloys Compd. Vol. 668 (2016), pp.169-175.
