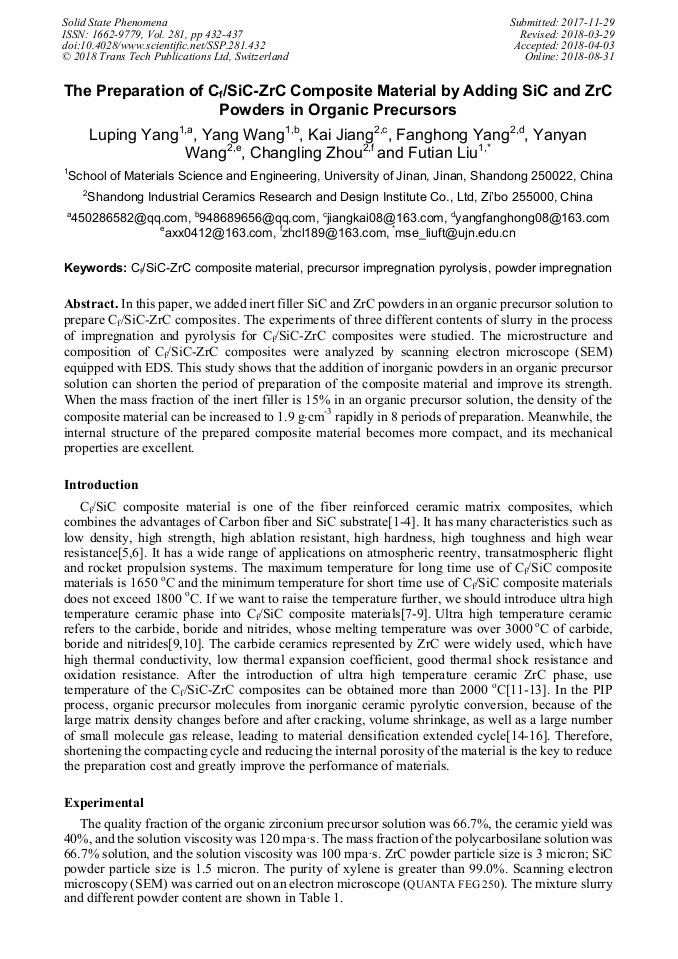

The Preparation of C_f/ SiC-ZrC Composite Material by Adding SiC and ZrC Powders in Organic Precursors

Abstract:

In this paper, we added inert filler SiC and ZrC powders in an organic precursor solution to prepare C_f/SiC-ZrC composites. The experiments of three different contents of slurry in the process of impregnation and pyrolysis for C_f/SiC-ZrC composites were studied. The microstructure and composition of C_f/SiC-ZrC composites were analyzed by scanning electron microscope (SEM) equipped with EDS. This study shows that the addition of inorganic powders in an organic precursor solution can shorten the period of preparation of the composite material and improve its strength. When the mass fraction of the inert filler is 15% in an organic precursor solution, the density of the composite material can be increased to 1.9 g·cm^-3 rapidly in 8 periods of preparation. Meanwhile, the internal structure of the prepared composite material becomes more compact, and its mechanical properties are excellent.

• Periodical: Solid State Phenomena (Volume 281)
• Pages: 432-437
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.281.432
• Online since: August 2018
• Authors: Lu Ping Yang, Yang Wang, Kai Jiang, Fang Hong Yang, Yan Yan Wang, Chang Ling Zhou, Fu Tian Liu
• Keywords: Cf/SiC-ZrC Composite Material, Powder Impregnation, Precursor Impregnation Pyrolysis

References

[1] C. Duriez. Rhenium Oxidation by Steam at High Temperatures. Oxidation of Metals, 61 (1, 2) (2004) 49-67.

DOI: 10.1023/b:oxid.0000016276.26446.34

[2] N. P. Padture, Advanced structural ceramics in aerospace propulsion, Nat. Mater. 15(2016) 804-809.

DOI: 10.1038/nmat4687

[3] J. F. Huang, H. J. Li, X. R. Zeng. A New SiC/Yttrium Silicate/Glass multi-layer Oxidation Protective Coating for Carbon/Carbon Composites. Carbon, 42 (2004) 2329-2366.

DOI: 10.1016/j.carbon.2004.05.005

[4] J. F. Huang, Y. L. Ma, X. R. Zeng. Oxidation Resistance Yttrium Silicates Coating for Carbon/Carbon Composites Prepared by A Novel In-Situ Formation Method. Ceramics International, 32 (2006) 417-421.

DOI: 10.1016/j.ceramint.2006.01.007

[5] F. Smeacetto, M. Salvo, M. Ferraris, et al. Erosion Protective Coatings for Low Density, Highly Porous Carbon/Carbon Composites. Carbon, 47 (6) (2009) 1511-1519.

DOI: 10.1016/j.carbon.2009.01.045

[6] F. Monteverde. Processing and properties of ultra-high temperature ceramics for space applications. Materials Science and Engineering A 485 (2008) 415-421.

DOI: 10.1016/j.msea.2007.08.054

[7] A. Paul. UHTC–carbon fibre composites: Preparation, oxyacetylene torch testing and characterization. Journal of the European Ceramic Society 33 (2013) 423–432.

DOI: 10.1016/j.jeurceramsoc.2012.08.018

[8] A. H. Tavakoli, P. Gerstel, J. A. Golczewski, J. Bill. Journal of Materials Research 25 (11) (2010) 2150-2158.

[9] X. Xu, S. Mei. Journal of the European Ceramic Society 26 (3) (2006) 337-341.

[10] R. Naslain. Composites Science and Technology 64 (2) (2004) 155-170.

[11] Y. Wang, H. Cheng, J. Wang. Ceramics International 40 (3) (2014) 4707-4715.

[12] X. Yang, H. F. Hu, Y. D. Zhang, Z. H. Chen. Ceramics International 40 (7,part A) (2014) 9087-9094.

[13] M. Hannache, Composites materials made from a porous 2D-carbon-carbon perform densified with boron nitride by chemical vapor infiltration, J. Mat. Sci. 19(2016) 202-212.

DOI: 10.1007/bf02403127

[14] J. F. Fu, Thermally conductive nanocomposites based on epoxy modified with SiC and poss, Key Eng. Mater. 727(2017) 553-557.

DOI: 10.4028/www.scientific.net/kem.727.553

[15] Y. F. Wang, The effect of the diameter of carbon nanotube on the mechanical and electrical properties of cement mortar, Key Eng. Mater. 730(2017) 479-485.

DOI: 10.4028/www.scientific.net/kem.730.479

[16] K. H. Zeng, Thermal Properties of Carbon Fiber Reinforced Mullite Composites Derived from Sol-Gel, Key Eng. Mater. 727(2017) 461-465.

DOI: 10.4028/www.scientific.net/kem.727.461
