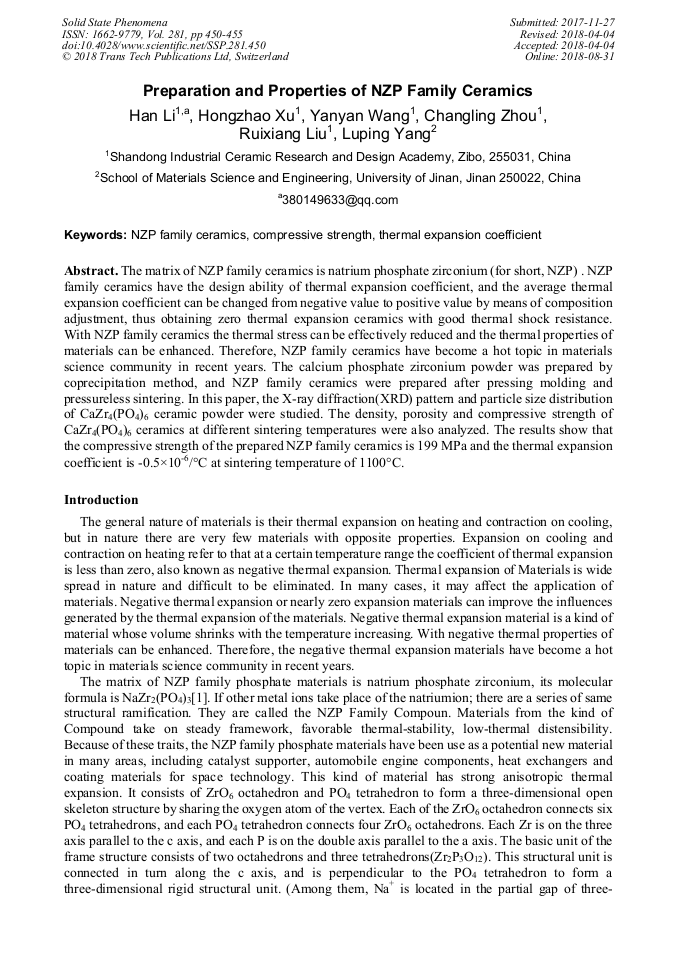

Preparation and Properties of NZP Family Ceramics

Abstract:

The matrix of NZP family ceramics is natrium phosphate zirconium (for short, NZP) . NZP family ceramics have the designabolity of thermal expansion coefficient, and the average thermal expansion coefficient can be changed from negative value to positive value by means of composition adjustment, thus obtaining zero thermal expansion ceramics with good thermal shock resistance. With NZP family ceramics the thermal stress can be effectively reduced and the thermal properties of materials can be enhanced.Therefore, NZP family ceramics have become a hot topic in materials science community in recent years.The calcium phosphate zirconium powder was prepared by coprecipitation method, and NZP family ceramics were prepared after pressing molding and pressureless sintering. The results show that the compressive strength of the prepared NZP family ceramics is 199 MPa and the thermal expansion coefficient is-0.5×10^-6/°C at sintering temperature of 1100°C.

• Periodical: Solid State Phenomena (Volume 281)
• Pages: 450-455
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.281.450
• Online since: August 2018
• Authors: Han Li*, Hong Zhao Xu, Yan Yan Wang, Chang Ling Zhou, Rui Xiang Liu, Lu Ping Yang
• Keywords: Compressive Strength, NZP Family Ceramics, Thermal Expansion Coefficient

References

[1] Toshitaka Oota, Iwao Yamai, Thermal expansion behavior of NaZr2(PO4)3-type compounds, Journal of the American Ceramic Society. 69(1986)1–6.

DOI: 10.1111/j.1151-2916.1986.tb04682.x

[2] J.S.O. Evans, T.A. Mary, A.W. Sleight, Negative Thermal Expansion in a Large Molybdate and Tungstate Family, Journal of Solid State Chemistry. 133(1997)580–583.

DOI: 10.1006/jssc.1997.7605

[3] A.P. Giddy, M.T. Dove, G.S. Pawley, The determination of Rigid-unit mode sas potential soft modes for displacive phase transitions in frame work crys tal structures, Acta Crystallographica. 49(1993)697–703.

DOI: 10.1107/s0108767393002545

[4] Lingling Wu, Bo Li, Ji Zhou, Isotropic Negative Thermal Expansion Metamaterials, ACS Applied Materials and Interfaces. 8(2016) 17721-17727.

DOI: 10.1021/acsami.6b05717

[5] D.M. Liu, Effeet of temperature on measuring the thermal diffusivity of ceramic of different speeimen thicknesses by using a laser pulse method, Materials Seience and Engineering. 47 (1997)191–196.

DOI: 10.1016/s0921-5107(97)00038-x

[6] Rustum Roy, D.K. Agrawal, J.Alamo R.A. Roy, Anew structural family of near-zero expansion ceramics, Materials Research Bulletin. 19(1984) 471–477.

DOI: 10.1016/0025-5408(84)90108-9

[7] Hagman Lars-Ove, Peder Kierkegaard, The crystal structure of NaMe2IV▪(PO4)3:Me2 IV =Ge,Ti,Zr , Acta Chemica Scandinavica. 22(1968) 1822-1828.

DOI: 10.3891/acta.chem.scand.22-1822

[8] K.Byrappa, G.S. Gopalakrishna, M.N. Viswanathiah, Hydrothermal growthand properties of Na2(La, Co)Zr(PO4)3 crystals, Journal of Materials Science Letters. 4(1985)565–567.

DOI: 10.1007/bf00720034

[9] A.I. Orlova, D.V. Kemenov, S.G. Samoilov, Thermal expansion of NZP-family alkali metal (Na, K) zirconium phosphates, Inorganic Materials. 36(8)( 2000) 830–834.

DOI: 10.1007/bf02758606

[10] A.K Ivanov-Schitz, A.B. Bykov, Ionic conductivity of the NaZr2(PO4)3 single crystal, Solid State Ionics. 100(1997)153–155.

DOI: 10.1016/s0167-2738(97)00267-1

[11] J.P. Boilot, J.P. Salanie, G.Desplanches, D.Le Potier, Phase transformation in Na1–xZr2P3–x· SixO12 compounds, Materials Research Bulletin. 11(1979)1469–1477.

DOI: 10.1016/0025-5408(79)90091-6

[12] V. I. Pet'kov, A. I. Orlova, G. N. Kazantsev, Thermal expansion in the Zr and 1-,2-valent complex phosphates of NaZr2(PO4)3 structure, Journal of Thermal Analysis and Calorimetry. 66(2001)623–632.

[13] Navulla Anantharamulu, K. Koteswara Rao, M. Vithal, G. Prasad, Preparation, characterization, impedance and thermal expansion studies of Mn0.5MSb(PO4)3 (M = Al, Fe and Cr) , Journal of Alloys and Compounds. 479(2009)684–691.

DOI: 10.1016/j.jallcom.2009.01.038

[14] Ye.V.Bortsova, A.K. Koryttseva, A.I. Oriova, New NZP-phosphates B0.5FeTa(PO4)3 (where B–Ca,Sr, Ba) synthesis, crys-tallochemical investigation and thermal expansion, Journal of Alloys and Compounds. 475(2009)74–78.

DOI: 10.1016/j.jallcom.2008.07.062

[15] U.Ahmadu, A.O. Musa, S.A. Jonah, N.Rabiu, Synthesis and thermal characterization of NZP compounds Na1–xLixZr2 (PO4)3 (x=0.00–0.75) , Journal of Thermal Analysis and Calorimetry. 101(2010)175–179.

DOI: 10.1007/s10973-010-0679-y

[16] J.Z. Tao, A.W. Sleight, The role of rigid unit modes in negative thermal expansion, Journal of Solid State Chemistry. 173(2003)442-448.

DOI: 10.1016/s0022-4596(03)00140-3
