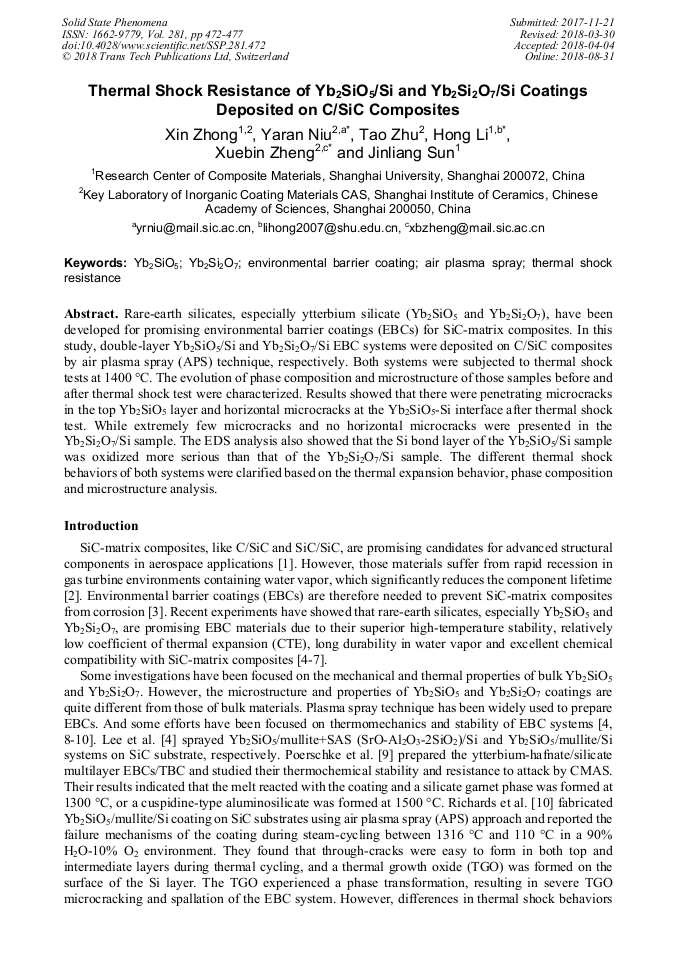

Thermal Shock Resistance of Yb₂SiO₅/Si and Yb₂Si₂O₇/Si Coatings Deposited on C/SiC Composites

Abstract:

Rare-earth silicates, especially ytterbium silicate (Yb₂SiO₅ and Yb₂Si₂O₇), have been developed for promising environmental barrier coatings (EBCs) for SiC-matrix composites. In this study, double-layer Yb₂SiO₅/Si and Yb₂Si₂O₇/Si EBC systems were deposited on C/SiC composites by air plasma spray (APS) technique, respectively. Both systems were subjected to thermal shock tests at 1400 °C. The evolution of phase composition and microstructure of those samples before and after thermal shock test were characterized. Results showed that there were penetrating microcracks in the top Yb₂SiO₅ layer and horizontal microcracks at the Yb₂SiO₅-Si interface after thermal shock test. While extremely few microcracks and no horizontal microcracks were presented in the Yb₂Si₂O₇/Si sample. The EDS analysis also showed that the Si bond layer of the Yb₂SiO₅/Si sample was oxidized more serious than that of the Yb₂Si₂O₇/Si sample. The different thermal shock behaviors of both systems were clarified based on the thermal expansion behavior, phase composition and microstructure analysis.

• Periodical: Solid State Phenomena (Volume 281)
• Pages: 472-477
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.281.472
• Online since: August 2018
• Authors: Xin Zhong, Ya Ran Niu*, Tao Zhu, Hong Li, Xue Bin Zheng, Jin Liang Sun
• Keywords: Air Plasma Spray, Environmental Barrier Coating, Thermal Shock Resistance, Yb₂Si₂O₇, Yb₂SiO₅

References

[1] W. Krenkel, F. Berndt, C/C-SiC composites for space applications and advanced friction systems, Mater. Sci. Eng. A. 412 (2005) 177-181.

DOI: 10.1016/j.msea.2005.08.204

[2] E.J. Opila, D.S. Fox, N.S. Jacobson, Mass spectrometric identification of Si-O-H(g) species from the reaction of silica with water vapor at atmospheric pressure, J. Am. Ceram. Soc. 80 (1997) 1009-1012.

DOI: 10.1111/j.1151-2916.1997.tb02935.x

[3] D.L. Poerschke, R.W. Jackson, C.G. Levi, Silicate deposit degradation of engineered coatings in gas turbines: progress toward models and materials solutions, Annu. Rev. Mater. Res. 47 (2017) 297-330.

DOI: 10.1146/annurev-matsci-010917-105000

[4] K.N. Lee, D.S. Fox, N.P. Bansal, Rare earth silicate environmental barrier coatings for SiC/SiC composites and Si3N4 ceramics, J. Eur. Ceram. Soc. 25 (2005) 1705-1715.

DOI: 10.1016/j.jeurceramsoc.2004.12.013

[5] M.H. Lu, H.M. Xiang, Z.H. Feng, X.Y. Wang, Y.C. Zhou, Mechanical and thermal properties of Yb2SiO5: a promising material for T/EBCs applications, J. Am. Ceram. Soc. 99 (2016) 1404-1411.

DOI: 10.1111/jace.14085

[6] Z.L. Tian, L.Y. Zheng, J.M. Wang, J.B. Yang, Damage tolerance and extensive plastic deformation of β-Yb2Si2O7 from room to high temperatures, J. Am. Ceram. Soc. 98 (2015) 2843-2851.

DOI: 10.1111/jace.13702

[7] Y. Wang, B. L. Zou, X.Z. Fan, X.Q. Cao, Effect of Yb2SiO5 Ceramic Layer Thickness on the Thermal Cycling Life of Yb2SiO5/LaMgAl11O19 Coating Deposited on C/SiC Composites, Key Eng. Mater. 537 (2013) 36-41.

[8] É. Darthout, F. Gitzhofer, Thermal cycling and high-temperature corrosion tests of rare earth silicate environmental barrier coatings, J. Therm. Spray Technol. 26 (2017) 1823-1837.

DOI: 10.1007/s11666-017-0635-5

[9] D.L. Poerschke, D.D. Hass, S. Eustis, G.G.E. Seward, J.S.V. Sluytman, C.G. Levi, Stability and CMAS Resistance of Ytterbium-Silicate/Hafnate EBCs/TBC for SiC Composites, J. Am. Ceram. Soc., 98 (2015) 278-286.

DOI: 10.1111/jace.13262

[10] B.T. Richards, S. Sehr, F.de Franqueville, M.R. Begley, H.N.G. Wadley, Fracture mechanisms of ytterbium monosilicate environmental barrier coatings during cyclic thermal exposure, Acta Mater. 103 (2016) 448-460.

DOI: 10.1016/j.actamat.2015.10.019

[11] X. Zhong, Y.R. Niu, H. Li, Y. Zeng, X.B. Zheng, C.X. Ding, J.L. Sun, Microstructure evolution and thermomechanical properties of plasma-sprayed Yb2SiO5 coating during thermal aging, J. Am. Ceram. Soc. 100 (2017) 1896-(1906).

DOI: 10.1111/jace.14690

[12] X. Zhong, Y.R. Niu, L.P. Huang, H. Li, X.B. Zheng, C.X. Ding, J.L. Sun, Microstructure and thermal properties of atmospheric plasma sprayed Yb2Si2O7 coating, J. Therm. Spray Technol. 26 (2017) 203-210.

DOI: 10.1007/s11666-016-0482-9

[13] K.N. Lee, J.I. Eldridge, R.C. Robinson, Residual stresses and their effects on the durability of environmental barrier coatings for SiC ceramics, J. Am. Ceram. Soc. 88 (2005) 3483-3488.

DOI: 10.1111/j.1551-2916.2005.00640.x

[14] A.J. Fernández-Carrión, M. Allix, A.I. Becerro, Thermal expansion of rare-earth pyrosilicates, J. Am. Ceram. Soc. 96 (2013) 2298-2305.

DOI: 10.1111/jace.12388

[15] C.Y. Fan, B.L. Zou,L. Zhu W.J. Fan, X.L. Cai,Y. Wang, X.Q. Cao, Oxidation and thermal shock resistant properties of Si/Yb2SiO5/NdMgAl11O19 coating deposited on Cf/SiC composites, Mater. Des. 116 (2017) 261-267.

DOI: 10.1016/j.matdes.2016.12.022
