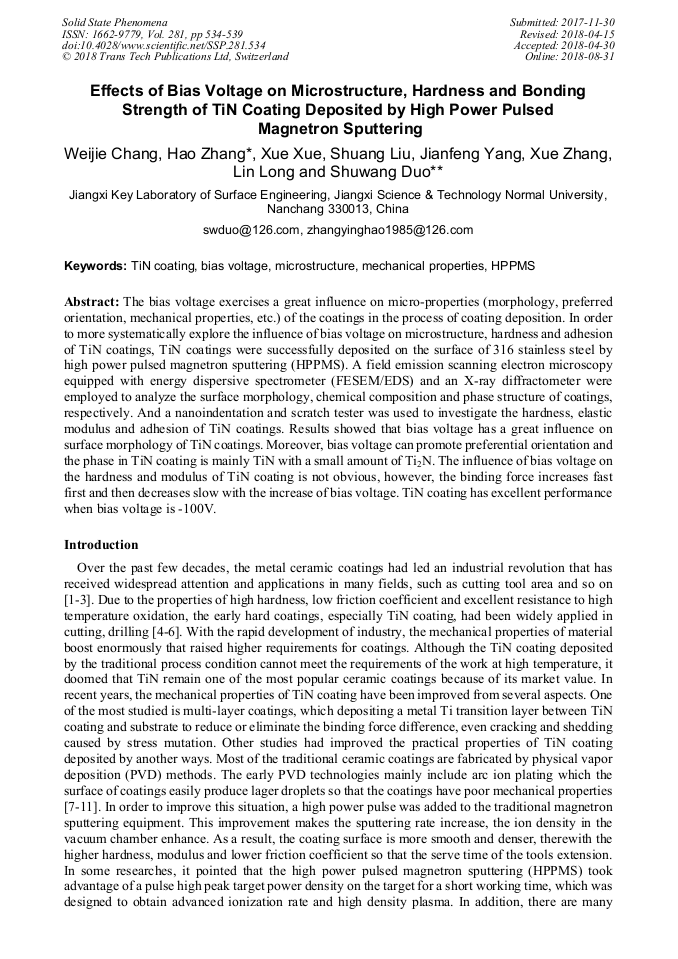

Effects of Bias Voltage on Microstructure, Hardness and Bonding Strength of TiN Coating Deposited by High Power Pulsed Magnetron Sputtering

Abstract:

Generally, bias voltage exercises a great influence on micro-properties (morphology, preferred orientation, mechanical properties, and so on) of the coatings in the process of coating deposited. In order to more systematically explore the influence of bias voltage on microstructure, hardness and adhesion of TiN coatings, TiN coatings were deposited successfully on the surface of 316 stainless steel by high power pulsed magnetron sputtering (HPPMS). A field emission scanning electron microscopy equipped with energy dispersive spectrometer (FESEM/EDS) and an X-ray diffractometer were employed to analyze the surface morphology, chemical composition and phase structure of coatings, respectively. And a nanoindentation and scratch tester was used to investigate the hardness, elastic modulus and adhesion of TiN coatings. Results showed that bias voltage has a great influence on surface morphology of TiN coatings. Moreover, bias voltage can promote preferential orientation and the phase in TiN coating is mainly TiN with a small amount of Ti₂N. The influence of bias voltage on the hardness and modulus of TiN coating is not obvious, however, the binding force increases fast first and then decreases slow with the increase of bias voltage. TiN coating has excellent performance when bias voltage is-100V.

• Periodical: Solid State Phenomena (Volume 281)
• Pages: 534-539
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.281.534
• Online since: August 2018
• Authors: Wei Jie Chang, Hao Zhang, Xue Xue, Shuang Liu, Jian Feng Yang, Xue Zhang, Lin Long, Shu Wang Duo*
• Keywords: Bias Voltage, HPPMS, Mechanical Properties, Microstructure, TiN Coating

References

[1] F Klocke, T Krieg, Coated tools for metal cutting features and applications, Ann CIRP. 48 (1999) 515–25.

DOI: 10.1016/s0007-8506(07)63231-4

[2] W Kalss, A Reiter, V Derflinger, C Gey, J L Endrino, Modern coatings in high performance cutting applications, Int J Refract Metals Hard Mater. 24 (2006) 399–404.

DOI: 10.1016/j.ijrmhm.2005.11.005

[3] C Ducros, V Benevent, F Sanchette, Deposition, characterization and machining performance of multilayer PVD coatings on cemented carbide cutting tools, Surf Coat Technol. 163–164 (2003) 681–8.

DOI: 10.1016/s0257-8972(02)00656-4

[4] S Zhang, W Wu, W Chen, S Yang, Structural optimisation and synthesis of multilayers and nanocomposite AlCrTiSiN coatings for excellent machin ability, Surf. Coat. Technol. 277 (2015) 23–29.

DOI: 10.1016/j.surfcoat.2015.07.033

[5] C Mitterer, F Holler, F Ustel, D Heim, Application of hard coatings in aluminum diecasting soldering, erosion and thermal fatigue behavior, Surf. Coat. Tech. 125 (2000) 233-239.

DOI: 10.1016/s0257-8972(99)00557-5

[6] B Podgornik, B Zajec, N Bay, J Vizintin, Application of hard coatings for blanking and piercing tools, Wear. 270 (2011) 850-856.

DOI: 10.1016/j.wear.2011.02.013

[7] G Greczynski, J Lu, J Jensen, I Petrov, J E Greene, S Bolz, Strain-free, single-phase metastableTi0.38Al0.62N alloys with high hardness metal-ion energy vs. momentum effects during film growth by hybrid high-power pulsed/dc magnetron co-sputtering, Thin Solid Films. 556 (2014).

DOI: 10.1016/j.tsf.2014.01.017

[8] K Bobzin, N Bagcivan, P Immich, S Bolz, J Alami, R Cremer, Advantages of nanocomposite coatings deposited by high power pulse magnetron sputtering echnology, J. Mat. Proc. Technol. 209 (2009) 165-170.

DOI: 10.1016/j.jmatprotec.2008.01.035

[9] G Greczynski, J Lu, J Jensen, I Petrov, J E Greene, Metal versus rare-gas ion irradiation during Ti1-xAlxN film growth by hybrid high power pulsed magnetron/dc magnetron co-sputtering using synchronized pulsed substrate bias, Vac. Sci. Technol. A. 30 (2012).

DOI: 10.1116/1.4750485

[10] X Zhang, J Zhu, L Zhang, J Han, S Du, Low-temperature crystallization and hardness enhancement of alumina films using the resputtering technique, J. Non-Cryst. Solids. 362 (2014) 39.

DOI: 10.1016/j.jnoncrysol.2012.11.016

[11] G P Zhang, G J Gao, X Q Wang, Influence of pulsed substrate bias on the structure and properties of Ti-Al-N films deposited by cathodic vacuum arc, Appl. Surf. Sci. 258 (2012) 7274-7279.

DOI: 10.1016/j.apsusc.2012.03.100

[12] Y C Hsiao, J W Lee, Y C Yang, B S Lou, Effects of duty cycle and pulse frequency on the fabrication of AlCrN thin films deposited by high power impulse magnetron sputtering, Thin Solid Films. 549 (2013) 281-291.

DOI: 10.1016/j.tsf.2013.08.059

[13] L Aihua, D Jianxin, C Haibing, C Yangyang, Z Jun, Friction and wear properties of TiN, TiAlN, AlTiN and CrAlN PVD nitride coatings, Int. J. Refract. Met. H. 31 (2012) 82–88.

DOI: 10.1016/j.ijrmhm.2011.09.010

[14] A P Kulkarni, V G Sargade, Characterization and performance of AlTiN, AlTiCrN, TiN/TiAlN PVD coated carbide tools while turning SS 304, Int. J. Mater. Manuf. Process. 30 (2015) 748–755.

DOI: 10.1080/10426914.2014.984217

[15] Y Xing, J Deng, J Zhao, G Zhang, K Zhang, Cutting performance and wear mechanism of nanoscale and microscale textured Al2O3/TiC ceramic tools in dry cutting of hardened steel, Int. J. Refract. Met. Hard Mater. 43 (2014) 46–58.

DOI: 10.1016/j.ijrmhm.2013.10.019

[16] T Zhou, P Nie, X Cai, P K Chu, Influence of N2 partial pressure on mechanical properties of (Ti, Al)N films deposited by reactive magnetron sputtering, Vacuum. 83 (2009) 1057-1059.

DOI: 10.1016/j.vacuum.2009.01.001

[17] S G Harris, E D Doyle, A C Vlasveld, Influence of chromium content on the dry machining performance of cathodic arc evaporated TiAlN coatings, Wear. 254 (2003) 185–94.

DOI: 10.1016/s0043-1648(02)00290-9
