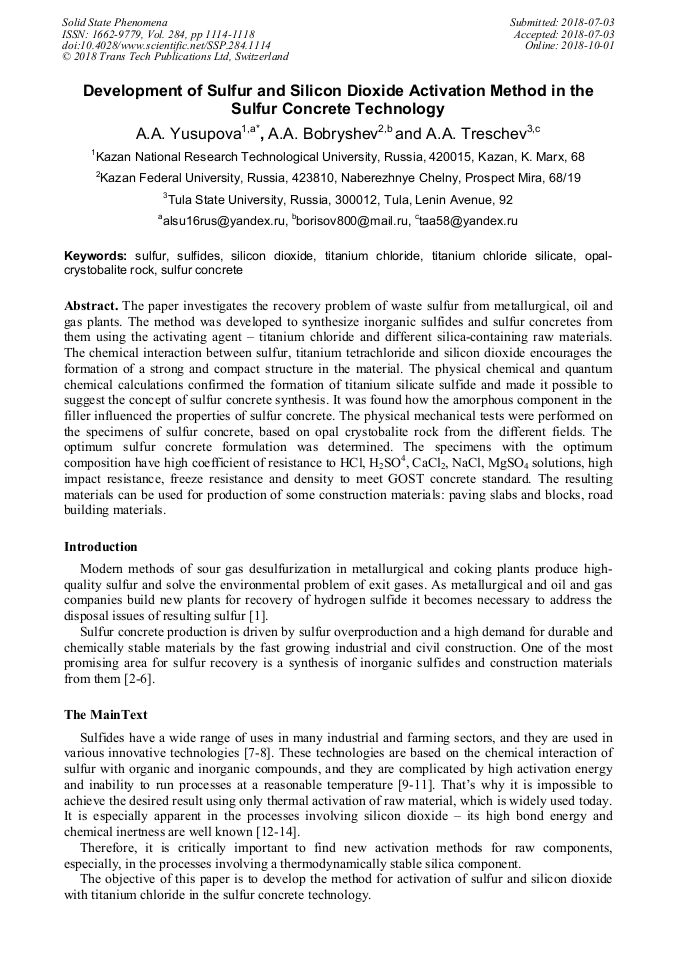

Development of Sulfur and Silicon Dioxide Activation Method in the Sulfur Concrete Technology

Abstract:

The paper investigates the recovery problem of waste sulfur from metallurgical, oil and gas plants. The method was developed to synthesize inorganic sulfides and sulfur concretes from them using the activating agent – titanium chloride and different silica-containing raw materials. The chemical interaction between sulfur, titanium tetrachloride and silicon dioxide encourages the formation of a strong and compact structure in the material. The physical chemical and quantum chemical calculations confirmed the formation of titanium silicate sulfide and made it possible to suggest the concept of sulfur concrete synthesis. It was found how the amorphous component in the filler influenced the properties of sulfur concrete. The physical mechanical tests were performed on the specimens of sulfur concrete, based on opal crystobalite rock from the different fields. The optimum sulfur concrete formulation was determined. The specimens with the optimum composition have high coefficient of resistance to HCl, H₂SO⁴, CaCl₂, NaCl, MgSO₄ solutions, high impact resistance, freeze resistance and density to meet GOST concrete standard. The resulting materials can be used for production of some construction materials: paving slabs and blocks, road building materials.

• Periodical: Solid State Phenomena (Volume 284)
• Pages: 1114-1118
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.284.1114
• Online since: October 2018
• Authors: Alsu Yusupova*, Aleksandr A. Bobryshev, A.A. Treschev
• Keywords: Opal-Crystobalite Rock, Silicon Dioxide, Sulfides, Sulfur, Sulfur Concrete, Titanium Chloride, Titanium Chloride Silicate

References

[1] Review of technologies, methods and practices of sulfur utilization in Russia, INFOMINE, Мoscow, (2015).

[2] E.V. Korolev, A.P. Proshin, V.T. Erofeev, Construction materials based on sulfur, PGASA, Penza, (2003).

[3] Y.I. Orlovsky, A.S. Semchenkov, V.I. Kharzhevsky, Concrete and products based on sulfur-containing industrial wastes, Concrete and reinforced concrete. 3 (1995) 21-24.

[4] A.P. Groshin, E.V. Korolev, E.G. Kalinkin, Structure and properties of modified sulfur binder, Building materials. 7 (2005) 6-9.

[5] E.V. Korolev, Building materials based on sulfur, Penza-Saransk, (2003).

[6] Zh.T. Suleimanov, M.Sh. Ospanov, A.A. Iglikov, Concretes on the basis of associated sulfur and phosphorus slags, Building. 2 (2007) 113-115.

[7] N.V. Usmanov, Consumer properties of sulfur, Building materials, equipment, technologies of the XXI century. 3 (2007) 41.

[8] T.G. Akhmetov, R. T. Porfiryeva., L.G. Gaisin, L.T. Akhmetova, A.I. Khatsrinov, Chemical Technology of Inorganic Substances, High School, Moscow, (2002).

[9] V. Voronkov (Ed.), The reactions of sulfur with organic compounds, Nauka, Novosibirsk, (1979).

[10] A.F. Wells Structural Inorganic Chemistry, Oxford University Press, Ely House, London, (1975).

[11] W. A. Pryor, Mechanism of Sulfur Reaction, New York – San Fracisco – Toronto – London, McGraw-Hill Book Co, (1962).

[12] V.B. Aleskovskiy, Directed synthesis of solid matters, Мoscow, (1987).

[13] G.V. Lisichkina, Modified silica in sorption, catalysis and chromatography, Moscow, Chemistry, (1986).

[14] V.B. Aleskovsky, Quantum synthesis, Russian Journal of Applied Chemistry. 11 (2007) 1761-1767.

[15] S.I. Koltsov, Study of the interaction of titanium tetrachloride with silica gel, Russian Journal of Applied Chemistry. 4 (1967) 907.

[16] M.N. Tsvetkov, A.A. Malygin, S.I. Koltsov, Synthesis and investigation of titanium oxide coatings on the surface of glass spheres, Russian Journal of Applied Chemistry. 6 (1980) 1226.

[17] V.I. Kovalenko, A.A. Malygin, S.I. Koltsov, V.B. Aleskovsky, On the investigation of the interaction of TiCl4 with silica gel, Russian Journal of Applied Chemistry. 10 (1976) 2355.

[18] L.A. Gribov, Quantum Chemistry, Moscow, Gardariki, (1999).

[19] V.G. Rau, K.W. Skvortsov, K.A. Potekhin, A.V. Maleev, Geometric analysis of molecular nanoclusters of sulfur (S8)x in a computer experiment, Russian Journal of Structural Chemistry. 4 (2011) 781-786.

DOI: 10.1134/s0022476611040172

[20] A.A. Yusupova, A.G. Shamov, R.T. Akhmetova, V.A. Pervushin, A.I. Khatsrinov, Titanium tetrachloride as electrofilic activator in technology of inorganic polysulfides, Journal of Quantum Chemistry. 11 (2011) 2575-2578.

DOI: 10.1002/qua.22754
