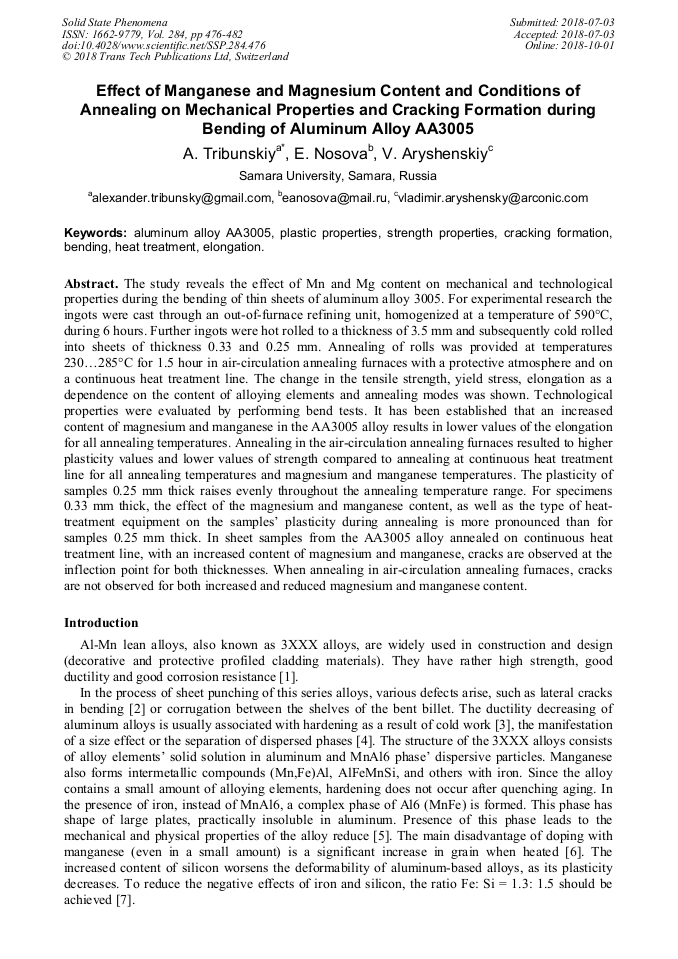

Effect of Manganese and Magnesium Content and Conditions of Annealing on Mechanical Properties and Cracking Formation during Bending of Aluminum Alloy AA3005

Abstract:

The study reveals the effect of Mn and Mg content on mechanical and technological properties during the bending of thin sheets of aluminum alloy 3005. For experimental research the ingots were cast through an out-of-furnace refining unit, homogenized at a temperature of 590°C, during 6 hours. Further ingots were hot rolled to a thickness of 3.5 mm and subsequently cold rolled into sheets of thickness 0.33 and 0.25 mm. Annealing of rolls was provided at temperatures 230...285°C for 1.5 hour in air-circulation annealing furnaces with a protective atmosphere and on a continuous heat treatment line. The change in the tensile strength, yield stress, elongation as a dependence on the content of alloying elements and annealing modes was shown. Technological properties were evaluated by performing bend tests. It has been established that an increased content of magnesium and manganese in the AA3005 alloy results in lower values of the elongation for all annealing temperatures. Annealing in the air-circulation annealing furnaces resulted to higher plasticity values and lower values of strength compared to annealing at continuous heat treatment line for all annealing temperatures and magnesium and manganese temperatures. The plasticity of samples 0.25 mm thick raises evenly throughout the annealing temperature range. For specimens 0.33 mm thick, the effect of the magnesium and manganese content, as well as the type of heat-treatment equipment on the samples’ plasticity during annealing is more pronounced than for samples 0.25 mm thick. In sheet samples from the AA3005 alloy annealed on continuous heat treatment line, with an increased content of magnesium and manganese, cracks are observed at the inflection point for both thicknesses. When annealing in air-circulation annealing furnaces, cracks are not observed for both increased and reduced magnesium and manganese content.

• Periodical: Solid State Phenomena (Volume 284)
• Pages: 476-482
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.284.476
• Online since: October 2018
• Authors: A. Tribunskiy*, Ekaterina Nosova, V. Aryshenskiy
• Keywords: Aluminum Alloy AA3005, Bending, Cracking Formation, Elongation, Heat Treatment, Plastic Properties, Strength Properties

References

[1] Li, Z., Z. Zhang, and X. -. Chen, Microstructure, Elevated-Temperature Mechanical Properties and Creep Resistance of Dispersoid-Strengthened Al-Mn-mg 3xxx Alloys with Varying mg and Si Contents, Materials Science and Engineering A, 708 (2017).

DOI: 10.1016/j.msea.2017.10.013

[2] F. Grechnikov, Y. Gorshkov, and Y. Erisov, Bending Process Simulation of a Flat Workpiece with various Cross-Sectional Mechanical Properties with PAM-STAMP 2G, Key Engineering Materials, 685 (2016) 133-136.

DOI: 10.4028/www.scientific.net/kem.685.133

[3] E. Nosova, Y. Erisov and F. Grechnikov, Multi-Cycle Rolled Aluminum Alloy 3103 Sandwiches: Mechanical Properties and Stamp Ability, 129 (2017) 02021.

DOI: 10.1051/matecconf/201712902021

[4] J.-F. Peng, J.-H. Liu, Z.-B. Cai, M.-X. Shen, C. Song, M.-H. Zhu, Study on bending fretting fatigue damages of 7075 aluminum alloy, Tribology International, 59 (2013) 38-46.

DOI: 10.1016/j.triboint.2012.06.016

[5] M.D. Taubkin, Non-ferrous metals and alloys, Reference book, Moscow: Metallurgy, (1987).

[6] I.L. Rogelberg, E.S. Shpichinetsky, Diagrams of recrystallization of metals and alloys, Reference book, Moscow, Metallurgizdat, (1950).

[7] E. Aryshenskii, R. Kawalla, V. Aryshenskii, C. Schmidt, Investigation of Texture and Structure Evolution during Hot Rolling of 1070, 3104 and 8011 Aluminum Alloys in Continuous Finishing Mill, 5th International Conference on ThermoMechanical Processing, Advance, (2016).

DOI: 10.4028/www.scientific.net/msf.854.73

[8] M. Weiss, et al. Effect of Residual Stress on the Bending of Aluminium., Journal of Materials Processing Technology, 212(4) (2012) 877-883.

DOI: 10.1016/j.jmatprotec.2011.11.008

[9] S. Ikawa, et al. Effects of Crystal Orientation on Bendability of Aluminum Alloy Sheet., Materials Science and Engineering A, 528(12) (2011) 4050-4054.

DOI: 10.1016/j.msea.2011.01.048

[10] Hayato Ikeya, Hiroshi Fukutomi, Cyclic Bending Deformation and Fracture of Al and Al 1.0mass%Mg Alloy, Procedia Materials Science, 12 (2016) 42-47.

DOI: 10.1016/j.mspro.2016.03.008

[11] Z. Liu, et al. Influence of Heat Treatment Conditions on Bending Characteristics of 6063 Aluminum Alloy Sheets., Transactions of Nonferrous Metals Society of China (English Edition), 27(7) (2017) 1498-1506.

DOI: 10.1016/s1003-6326(17)60170-5

[12] Z. Li, Z. Zhang, X. -. Chen. Microstructure, Elevated-Temperature Mechanical Properties and Creep Resistance of Dispersoid-Strengthened Al-Mn-mg 3xxx Alloys with Varying mg and Si Contents., Materials Science and Engineering A, 708 (2017).

DOI: 10.1016/j.msea.2017.10.013

[13] P. Castany, et al. Influence of Quench Rate and Microstructure on Bendability of AA6016 Aluminum Alloys., Materials Science and Engineering A, 559 (2013) 558-565.

DOI: 10.1016/j.msea.2012.08.141

[14] A.R. Eivani, et al. Microstructural Evolution and Fatigue Properties of Severely Deformed AA1050 Aluminum Alloy., Materials Characterization, 130 (2017) 204-210.

DOI: 10.1016/j.matchar.2017.06.016

[15] G.A. Lucachick, L.R. Sanchez. Surface Topography Changes in Aluminum Alloy Sheet during Large Plastic Straining Under Cyclic Pure Bending., Journal of Materials Processing Technology, 213(2) (2013) 300-307.

DOI: 10.1016/j.jmatprotec.2012.09.011

[16] W. Ziaja, et al. High Cycle Bending Fatigue Life of Submicrocrystalline Aluminum Alloy., Mechanics of Materials, 67 (2013) 33-37.

DOI: 10.1016/j.mechmat.2013.07.013
