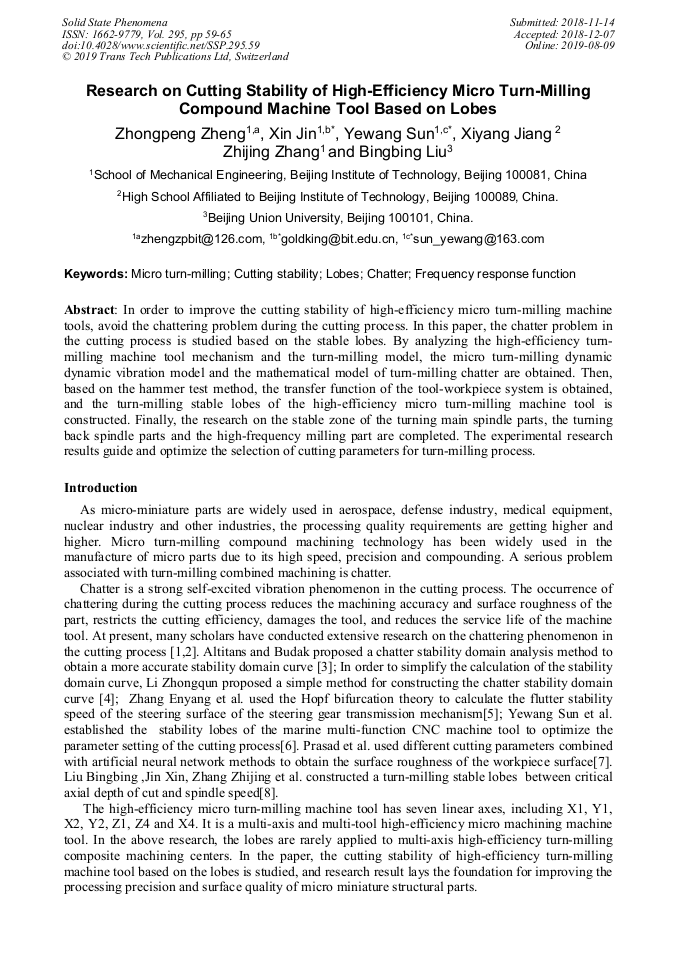

Research on Cutting Stability of High-Efficiency Micro Turn-Milling Compound Machine Tool Based on Lobes

Abstract:

In order to improve the cutting stability of high-efficiency micro turn-milling machine tools, avoid the chattering problem during the cutting process. In this paper, the chatter problem in the cutting process is studied based on the stable lobes. By analyzing the high-efficiency turn-milling machine tool mechanism and the turn-milling model, the micro turn-milling dynamic dynamic vibration model and the mathematical model of turn-milling chatter are obtained. Then, based on the hammer test method, the transfer function of the tool-workpiece system is obtained, and the turn-milling stable lobes of the high-efficiency micro turn-milling machine tool is constructed. Finally, the research on the stable zone of the turning main spindle parts, the turning back spindle parts and the high-frequency milling part are completed. The experimental research results guide and optimize the selection of cutting parameters for turn-milling process.

• Periodical: Solid State Phenomena (Volume 295)
• Pages: 59-65
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.295.59
• Online since: August 2019
• Authors: Zhong Peng Zheng, Xin Jin, Ye Wang Sun*, Xi Yang Jiang, Zhi Jing Zhang, Bing Bing Liu
• Keywords: Chatter, Cutting Stability, Frequency Response Function, Lobes, Micro Turn-Milling

References

[1] Postel M, Özsahin O, Altintas Y. High speed tooltip FRF predictions of arbitrary tool-holder combinations based on operational spindle identification[J]. International Journal of Machine Tools & Manufacture, 2018, 129.

DOI: 10.1016/j.ijmachtools.2018.03.004

[2] Rusinek R, Borowiec M. Stability analysis of titanium alloy milling by multiscale entropy and Hurst exponent[J]. European Physical Journal Plus, 2015, 130(10):1-8.

DOI: 10.1140/epjp/i2015-15194-1

[3] Y. Altitans, E Budak. Analytical Prediction of Srability Lobes in Milling[J]. Annals of CIRP Vol. 44/1/1995: 357-362.

DOI: 10.1016/s0007-8506(07)62342-7

[4] Li Zhongqun, Liu Qiang. Solution and analysis of chatter stability for end milling in the time-domain [J]. Chinese Journal of Aeronautics, 2008, 21: 169-178.

DOI: 10.1016/s1000-9361(08)60022-9

[5] Zhang Enyang, Song Rongzhi, et al.Flutter Analysis of System of All Movable Fin with Freeplay  Nonlinearity[J]. Journal  of  Ordnance  Equipment Engineering,2016(1):136-141.

[6] Sun Y, Zhang J, Zhang Z, et al. Bond strength of an Fe-Al-based coating as influenced by cutting parameters and the dynamic characteristics of a compound NC machine tool[J]. International Journal of Advanced Manufacturing Technology, 2015, 80(1-4):455-466.

DOI: 10.1007/s00170-015-7015-4

[7] Prasad MVRD, Sravya YY, et al. Study of the Influence of Process Parameters on Surface Roughness When Inconel 718 Is Dry Turned Using CBN Cutting Tool by Artificial Neural Network Approach[J]. International Journal of Materials Mechanics & Manufacturing, 2014, 2(4):335-338.

DOI: 10.7763/ijmmm.2014.v2.152

[8] Liu Bingbing. Research on Dimensional Accuracy of Large Axis Ratio Micro-axis Turning and Milling[D]. Beijing Institute of Technology, (2013).
