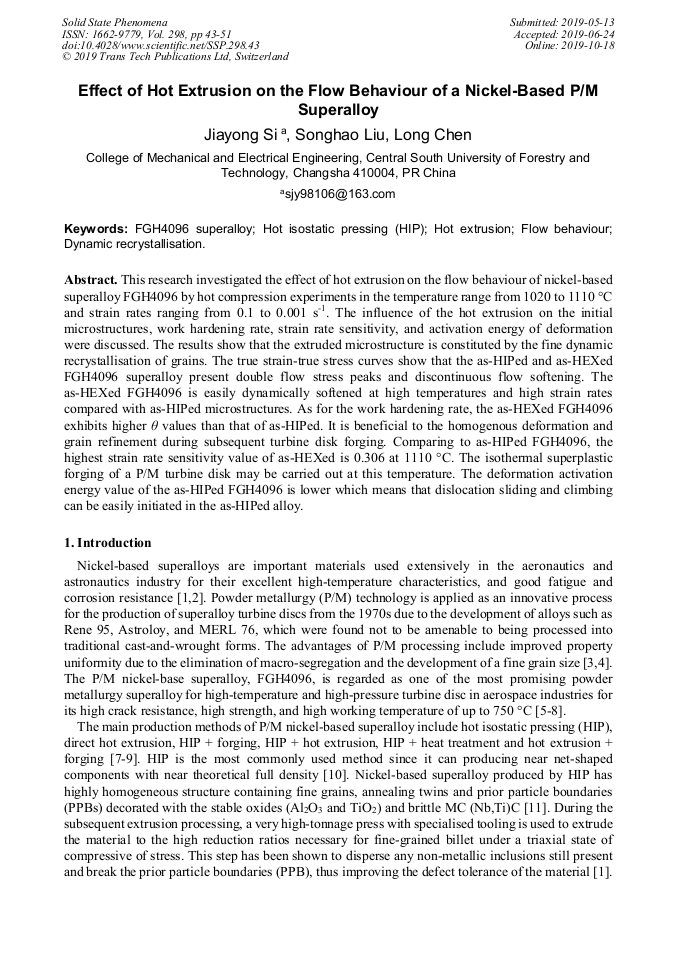

Effect of Hot Extrusion on the Flow Behaviour of a Nickel-Based P/M Superalloy

Abstract:

This research investigated the effect of hot extrusion on the flow behaviour of nickel-based superalloy FGH4096 by hot compression experiments in the temperature range from 1020 to 1110 °C and strain rates ranging from 0.1 to 0.001 s^-1. The influence of the hot extrusion on the initial microstructures, work hardening rate, strain rate sensitivity, and activation energy of deformation were discussed. The results show that the extruded microstructure is constituted by the fine dynamic recrystallisation of grains. The true strain-true stress curves show that the as-HIPed and as-HEXed FGH4096 superalloy present double flow stress peaks and discontinuous flow softening. The as-HEXed FGH4096 is easily dynamically softened at high temperatures and high strain rates compared with as-HIPed microstructures. As for the work hardening rate, the as-HEXed FGH4096 exhibits higher θ values than that of as-HIPed. It is beneficial to the homogenous deformation and grain refinement during subsequent turbine disk forging. Comparing to as-HIPed FGH4096, the highest strain rate sensitivity value of as-HEXed is 0.306 at 1110 °C. The isothermal superplastic forging of a P/M turbine disk may be carried out at this temperature. The deformation activation energy value of the as-HIPed FGH4096 is lower which means that dislocation sliding and climbing can be easily initiated in the as-HIPed alloy.

• Periodical: Solid State Phenomena (Volume 298)
• Pages: 43-51
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.298.43
• Online since: October 2019
• Authors: Jia Yong Si*, Song Hao Liu, Long Chen
• Keywords: Dynamic Recrystallisation, FGH4096 Superalloy, Flow Behavior, Hot Extrusion, Hot Isostatic Pressing (HIP)

References

[1] R.C. Reed, The Superalloys Fundamentals and Applications, England: Cambridge University Press, (2006).

[2] T.S. Chester, S.S. Norman, C.H. William, Superalloys II, NewYork: John Wiley & Sons Press, (1987).

[3] J.C. Borofka, J.K. Tien, R.D. Kissinger, Powder metallurgy and oxide dispersion processing of superalloys, in: J.K. Tien, T. Caulfield (Eds.), Superalloys, Supercomposites and Superceramics, San Diego: Academic Press, 1989, pp.237-284.

DOI: 10.1016/b978-0-12-690845-9.50014-2

[4] B.L. Ferguson, Aerospace applications, in ASM Handbook Volume 7: Powder Metallurgy, 6th Edn, Materials Park, OH: ASM International, 1997, pp.646-656.

[5] Y. Ning, Z. Yao, M.W. Fu, Recrystallization of the hot isostatic pressed nickel-base superalloy FGH4096: I. Microstructure and mechanism, Materials Science and Engineering A. 528(2011) 8065-8070.

DOI: 10.1016/j.msea.2011.07.053

[6] Y. Ning, M.W. Fu, W. Yao, Recrystallization of the hot isostatic pressed nickel-base superalloy FGH4096. II: Characterization and application, Materials Science and Engineering A. 539(2015) 101-106.

DOI: 10.1016/j.msea.2012.01.065

[7] M.J. Zhang, F.G. Li, Z. Yuan, Effect of heat treatment on the micro-indentation behavior of powder metallurgy nickel based superalloy FGH96, Materials and Design. 49(2013) 705-715.

DOI: 10.1016/j.matdes.2013.02.024

[8] B. Fang, Z. Ji, M. Liu, Study on constitutive relationships and processing maps for FGH96 alloy during two-pass hot deformation, Materials Science and Engineering A. 590(2014) 255-261.

DOI: 10.1016/j.msea.2013.10.034

[9] Y. Liu, Z. Yao, Y. Ning, Y. Nan, Effect of deformation temperature and strain rate on dynamic recrystallized grain size of a powder metallurgical nickel-based superalloy, Journal of Alloys and Compounds. 691(2017) 554-563.

DOI: 10.1016/j.jallcom.2016.08.216

[10] L. Zhang, H. Liu, X. He, Q.X. Rafi-ud-din, M. Qin, Z. Li, G. Zhang, Thermal evolution behavior of carbides and γ' precipitates in FGH96 superalloy powder, Mater Charact. 67(2012) 52-64.

DOI: 10.1016/j.matchar.2012.02.014

[11] Q. Bai, J. Lin, G. Tian, J. Zou, T.A. Dean, Review and analysis of powder prior boundary (ppb) formation in powder metallurgy processes for nickel-based super alloys, J Powder Metall Min. 127(2015).

DOI: 10.4172/2168-9806.1000127

[12] Y. Ning, Z. Yao, H. Guo, Investigation on hot deformation behavior of P/M Ni-base superalloy FGH96 by using processing maps, Materials Science and Engineering A.  527(2010) 6794-6799.

DOI: 10.1016/j.msea.2010.07.040

[13] Y. Ning, Z. Yao, H. Li, High temperature deformation behavior of hot isostatically pressed P/M FGH4096 superalloy, Materials Science and Engineering A. 527(2010) 961-966.

DOI: 10.1016/j.msea.2009.09.011

[14] S. Wang, S. Fang, Z. Shi, Direct powder forging of PM nickel-based superalloy: densification and recrystallisation, Int J Adv Manuf Technol. 88(2017) 2661-2670.

DOI: 10.1007/s00170-016-8966-9

[15] J.T. Liu, G.Q. Liu, B.F. Hu. Hot deformation behavior of FGH96 superalloys, Journal of University of Science and Technology Beijing, Mineral, Metallurgy, Material. 13(2006) 319-323.

DOI: 10.1016/s1005-8850(06)60066-2

[16] W. Xu, L. Zhang, S. Gu. Hot compressive deformation behavior and microstructure evolution of HIPed FGH96 superalloy, Trans. Nonferrous Met. Soc. China. 22(2012) 66-71.

DOI: 10.1016/s1003-6326(11)61141-2

[17] M.J. Zhang, F.G. Li, S.Y. Wang, Effect of powder preparation technology on the hot deformation behavior of HIPed P/M nickel-base superalloy FGH96, Materials Science and Engineering A. 528(2011) 4030-4039.

DOI: 10.1016/j.msea.2011.01.118

[18] G. He, F. Liu, J. Si, C. Yang, L. Jiang, Characterization of hot compression behavior of a new HIPed nickel-based P/M superalloy using processing maps, Materials and Design. 87(2015) 256-265.

DOI: 10.1016/j.matdes.2015.08.035

[19] C. Liu, F. Liu, L. Huang, Effect of hot extrusion and heat treatment on microstructure of nickel-base superalloy, Trans. Nonferrous Met. Soc. China. 24(2014) 2544-2553.

DOI: 10.1016/s1003-6326(14)63381-1

[20] W. Guo, J. Wu, F. Zhang, Microstructure, properties and heat treatment process of powder metallurgy Superalloy FGH95, Journal of Iron and Steel Research, International. 13(2006) 65-68.

DOI: 10.1016/s1006-706x(06)60097-6

[21] T. Sakai, J.J. Jonas, Dynamic recrystallization: Mechanical and microstructural considerations, Acta Metallurgica. 32(1984)189-209.

DOI: 10.1016/0001-6160(84)90049-x

[22] H.J. McQueen, Development of dynamic recrystallization theory, Materials Science and Engineering A. 387-389(2004) 203-208.

DOI: 10.1016/j.msea.2004.01.064

[23] A.A. Hameda, L. Blaz, Flow softening during hot compression of Cu-3.45 wt.% Ti alloy, Scripta Materialia. 37(1997)1987-1993.

DOI: 10.1016/s1359-6462(97)00391-6

[24] J.Y. Si, P.B. Han, X. Chang, Flow behavior of Ti-46.2Al-2.5V-1.0Cr-0.3Ni alloy in secondary hot deformation, Trans. Nonferrous Met. Soc. China. 16(2006) 2091-2095.

[25] A. Laasraoui, J.J. Jonas, Prediction of steel flow stresses at high temperatures and strain rates, Metallurgical Transactions A. 22A(1991) 1545-1557.

DOI: 10.1007/bf02667368

[26] K. Karhausen, R. Kopper, Model for integrated process and microstructure simulation in hot forming, Steel Reasearch. 63(1992) 247-256.

DOI: 10.1002/srin.199200509

[27] C. Bruni, A. Forcellese, F. Gabrielli, Hot workability and models for flow stress of NIMONIC 115 Ni-base superalloy, Journal of Materials Processing Technology. 125(2002) 242-247.

DOI: 10.1016/s0924-0136(02)00302-3

[28] Y.H. Liu, F.G. Li, H.B. Yu, Deformation behavior of hot isostatic pressing FGH96 Superalloy, Transactions of Tianjin University. 12(2006)281-285.

[29] R.P. Zhang, F.G. Li, X.N. Wang, Determining Processing Maps of FGH96 Superalloy, Journal of Northwestern Polytechnical University. 25(2007) 652-656.
