Wear Resistance and Characteristics of the Friction Surface of Metal Coatings with Nitride-Boride Alloying

Abstract:

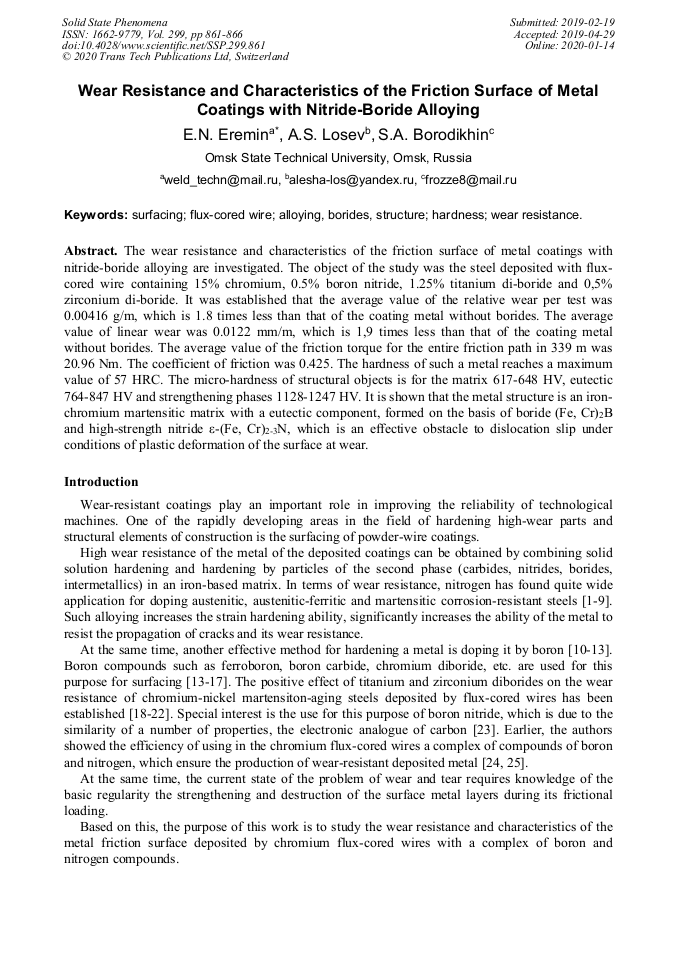

The wear resistance and characteristics of the friction surface of metal coatings with nitride-boride alloying are investigated. The object of the study was the steel deposited with flux-cored wire containing 15% chromium, 0.5% boron nitride, 1.25% titanium di-boride and 0,5% zirconium di-boride. It was established that the average value of the relative wear per test was 0.00416 g/m, which is 1.8 times less than that of the coating metal without borides. The average value of linear wear was 0.0122 mm/m, which is 1,9 times less than that of the coating metal without borides. The average value of the friction torque for the entire friction path in 339 m was 20.96 Nm. The coefficient of friction was 0.425. The hardness of such a metal reaches a maximum value of 57 HRC. The micro-hardness of structural objects is for the matrix 617-648 HV, eutectic 764-847 HV and strengthening phases 1128-1247 HV. It is shown that the metal structure is an iron-chromium martensitic matrix with a eutectic component, formed on the basis of boride (Fe, Cr)₂B and high-strength nitride ε-(Fe, Cr)_2-3N, which is an effective obstacle to dislocation slip under conditions of plastic deformation of the surface at wear.

• Periodical: Solid State Phenomena (Volume 299)
• Pages: 861-866
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.299.861
• Online since: January 2020
• Authors: Evgeniy N. Eremin*, Alexsander S. Losev, Sergey A. Borodikhin
• Keywords: Alloying, Borides, Flux-Cored Wire, Hardness, Structure, Surfacing, Wear Resistance

References

[1] M.O. Speidel, Metal Science and Heat Treatment, 47 (2005) 489-493.

[2] A.P. Shljamnev, Problems of ferrous metallurgy and materials science, 1 (2007) 53-60.

[3] M.V. Kostina, et al., Metal technology, 10 (2000) 2-12.

[4] J. W. Simmons, et al., Corrosion, 50 (1994) 491-501.

[5] V. G. Gavriljuk, ISIJ Inter, 36 (1996) 840-845.

[6] M. M. L. Saucedo, et al., Materials Science Forum, 561-565 (2007) 2275-2278.

[7] M.O. Speidel, Materialwissenschaft und Werkstofftechnik, 37 (2006) 875-880.

[8] Aniruddha A.Gadhikar, et al., Indian Foundry Journal, 56 (2010) 23-31.

[9] N. Nakamura, et al., Materials Science Forum, 318-320 (1999) 209-214.

[10] N. P. Ljakishev, Ju. L. Pliner, S. I. Lappo, Boron steels and alloys, Metallurgija, Moskow, (1986).

[11] L. Zhong, et al., Journal of Iron and Steel Research International, 16 (2009) 37-42.

[12] V. Raghavan, Journal of Phase Equlibria, 24 (2003) 459-460.

[13] I. I. Iskol'dskij, Surfacing boride hard alloys, Mashinostroenie, Moskow, (1965).

[14] I. N. Sheenko, V. D. Oreshkin, Ju. D. Repkin, Modern surfacing materials based on refractory compounds, Naukova Dumka, Kiev, (1970).

[15] G.V. Samsonov, Wear-resistant surfacing materials based on refractory compounds, Naukova Dumka, Kiev, (1977).

[16] I. N. Sheenko, et al., Welding production, 5 (1969) 27-28.

[17] A. A. Dan'kin, et al., Welding production, 2 (1993) 8-10.

[18] A. A. Artem'ev, et al., Proceedings of higher educational institutions. Powder Metallurgy and Functional Coatings, 2 (2011) 44-48.

[19] A. A. Artem'ev, et al., Metal Science and Heat Treatment, 53, 603-607 (2012).

[20] E. N. Eremin, Welding International, 27, 144-146 (2013).

[21] Ye. N. Yeremin, et al., Welding International, 28, 465-468(2014).

[22] K. Tanaka, et al., Journal of Phase Equilibria, 20, 207-214 (1999).

[23] A. V. Kurdjumov, A. N. Piljankevich, Phase transformations in carbon and boron nitride, Naukova Dumka, Kiev, (1979).

[24] E. N. Eremin, et al., Welding production, 7 (2018) 3-8.

[25] E. N. Eremin, et al., Oil and Gas Engineering (OGE-2017) AIP Conference Proceeding, 1876, 020071-1–020071-6 (2017).

[26] S. Tarasov, et al., Wear, 231 (1999) 228-234.

[27] L. G. Korshunov, et al., Physics of Metals and Metallography, 90 (2000) 548-558.

[28] V. G. Pinchuk, et al., Global Journal For Research Analysis, 4 (2015) 255-257.
