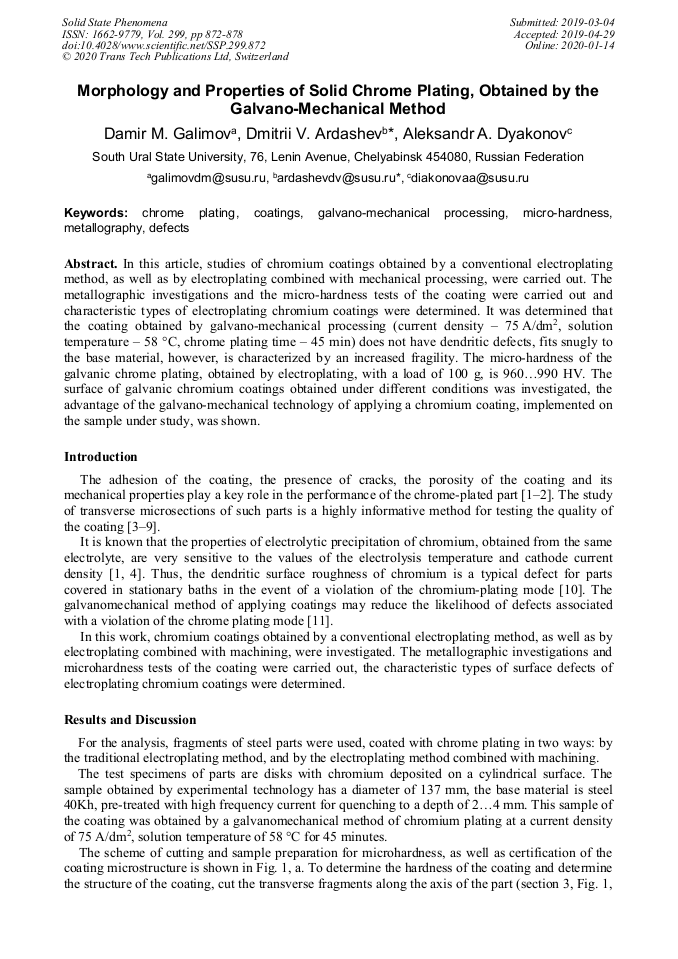

Morphology and Properties of Solid Chrome Plating, Obtained by the Galvano-Mechanical Method

Abstract:

In this article, studies of chromium coatings obtained by a conventional electroplating method, as well as by electroplating combined with mechanical processing, were carried out. The metallographic investigations and the micro-hardness tests of the coating were carried out and characteristic types of electroplating chromium coatings were determined. It was determined that the coating obtained by galvano-mechanical processing (current density – 75 A/dm², solution temperature – 58 °C, chrome plating time – 45 min) does not have dendritic defects, fits snugly to the base material, however, is characterized by an increased fragility. The micro-hardness of the galvanic chrome plating, obtained by electroplating, with a load of 100 g, is 960...990 HV. The surface of galvanic chromium coatings obtained under different conditions was investigated, the advantage of the galvano-mechanical technology of applying a chromium coating, implemented on the sample under study, was shown.

• Periodical: Solid State Phenomena (Volume 299)
• Pages: 872-878
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.299.872
• Online since: January 2020
• Authors: D.M. Galimov, Dmitry V. Ardashev*, Aleksandr A. Dyakonov
• Keywords: Chrome Plating, Coatings, Defects, Galvano-Mechanical Processing, Metallography, Micro-Hardness

References

[1] M.A. Shluger, Electroplated coatings in mechanical engineering, Mashinostroenie, Moskow, (1985).

[2] S. Davis, A. James, Electrochemical Dictionary, Mir, Moscow, (1979).

[3] M.A. Dasoyan, I.Ya. Palmskaya, Equipment for electrochemical coating workshops, Mechanical Engineering, Leningrad, (1979).

[4] N.P. Fedotiev, Applied Electrochemistry, Chemistry, Moscow, (1962).

[5] L.G. Borisov, Methods for the study of materials and processes: guidelines for independent work, St. Petersburg, (2016).

[6] State Standard 9.302 – 88, RU, Metallic and non-metallic coatings. Control methods, (1990).

[7] P.M. Vyacheslavov, N.M. Shmeleva. Methods for testing electrochemical coatings, Mechanical Engineering, Leningrad, (1977).

[8] K.I. Godovskaya, L.T. Tolstaya, Laboratory Workshop on Technical Analysis and Quality Control of Electrochemical Coatings, Mashinostroenie, Moscow, (1984).

[9] D.M. Galimov, D.V. Ardashev, A.A. Dyakonov, Methods for determining the quality of galvanic chromium coating, Solid state phenomena, 284 (2018) 1307-1312.

DOI: 10.4028/www.scientific.net/ssp.284.1307

[10] D.A. Zherebtsov, O.N. Gruba, K.R. Smolyakova, Effect of abrasive tools in galvanomechanical treatment on the roughness of the deposited chromium layer, Solid state phenomena, 284 (2018) 1178-1183.

DOI: 10.4028/www.scientific.net/ssp.284.1178

[11] K.E. Rumyantseva, Physical and technological properties of coatings: a manual, Ivanovo State Chemical Tehnological University, Ivanovo, (2007).

[12] Kh. K. Baskaev, A. I. Samokhotsky, Metal science and heat treatment of metals: a teaching aid for the thesis design: a training manual for technical schools, Mechanical Engineering, Moscow, (1966).

[13] A.D. Assonov, The technology of heat treatment of machine parts, Mashinostroenie, Moscow, (1969).

[14] V.M. Nikiforov, Metal technology and other structural materials, Higher School, Moscow, (1977).

[15] A.E. Leikin, B.I. Rodin, Materials science: textbook for students of engineering specialties of higher educational institutions, High School, Moscow, (1971).

[16] Yu.M. Lakhtin, V.P. Leontyeva, Materials Science, Mashinostroenie, Moscow, (1990).

[17] A.G. Kalmykov, Yu.I. Golovin, V.F. Terentyev and others, Methods for the determination of the hardness of metallic materials: a training manual, VSTU Publishing House, Voronezh, (2000).

[18] X.L. Li, X.H. Liu, H.B. Tian and others, Experimental research on hard and crack-free electrodeposited chromium coatings, J. of Advanced Materials Research, 1044-1045 (2014) 47-52.

DOI: 10.4028/www.scientific.net/amr.1044-1045.47

[19] Z. Zhu, S. Wang, N. Qu and others, Electrodeposition, assisted by abrasive polishing, of crack-free hard chromium with compressive stress, Philosophical Magazine Letters 96 (2016) 205-211.

DOI: 10.1080/09500839.2016.1190039

[20] I.S. Yasnikov, Yu.S. Nagornov, I.V. Gorbachev and others, Scanning electron microscopy as a method for studying microscopic objects of electrolytic origin, Fundamental research, 1-3 (2013) 758-764.

[21] M.M. Kryshtal, I.S. Yasnikov, V.I. Polunin, Scanning electron microscopy and X-raymicroanalysis in examples of practical application, Technosphere, Moscow, (2009).

[22] D. Brandon, U. Kaplan, Microstructure of materials. Research and control methods, Technosphere, Moscow, (2004).

[23] Yu.A. Bykov, S.D. Karpukhin, M.K. Boychenko and others, Raster electron microscopy and X-ray analysis. Apparatus, principle of operation, application, E-data, Moscow, (2003).

[24] A. Almotairi, A. Warkentin, Z. Farhat, Mechanical damage of hard chromium coatings on 416 stainless steel, Engineering Failure Analysis, 66 (2016) 130-140.

DOI: 10.1016/j.engfailanal.2016.04.011

[25] A. Liang, L. Ni, Q. Liu and others, Structure characterization and tribological properties of thick chromium coating electrodeposited from a Cr(III) electrolyte, Surface and Coatings Technology 218 (2013) 23-29.

DOI: 10.1016/j.surfcoat.2012.12.021

[26] M. Vidal, M. Ostra, N. Imaz and others, Analysis of SEM digital images to quantify crack network pattern area in chromium electrodeposits, Surface and Coatings Technology 285 (2016) 289-297.

DOI: 10.1016/j.surfcoat.2015.11.049

[27] B. Weiss, A. Lefebvre, O. Sinot and others, Effect of grinding on the sub-surface and surface of electrodeposited chromium and steel substrate, Surface and Coatings Technology 272 (2015) 165-175.

DOI: 10.1016/j.surfcoat.2015.04.009
