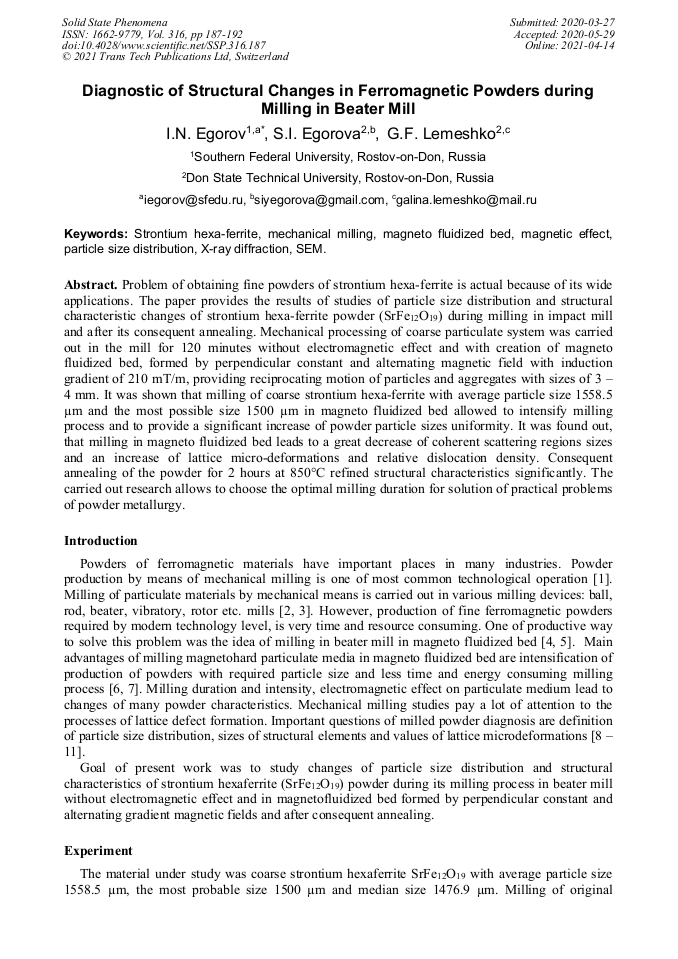

Diagnostic of Structural Changes in Ferromagnetic Powders during Milling in Beater Mill

Abstract:

Problem of obtaining fine powders of strontium hexa-ferrite is actual because of its wide applications. The paper provides the results of studies of particle size distribution and structural characteristic changes of strontium hexa-ferrite powder (SrFe₁₂O₁₉) during milling in impact mill and after its consequent annealing. Mechanical processing of coarse particulate system was carried out in the mill for 120 minutes without electromagnetic effect and with creation of magneto fluidized bed, formed by perpendicular constant and alternating magnetic field with induction gradient of 210 mT/m, providing reciprocating motion of particles and aggregates with sizes of 3 – 4 mm. It was shown that milling of coarse strontium hexa-ferrite with average particle size 1558.5 μm and the most possible size 1500 μm in magneto fluidized bed allowed to intensify milling process and to provide a significant increase of powder particle sizes uniformity. It was found out, that milling in magneto fluidized bed leads to a great decrease of coherent scattering regions sizes and an increase of lattice micro-deformations and relative dislocation density. Consequent annealing of the powder for 2 hours at 850°C refined structural characteristics significantly. The carried out research allows to choose the optimal milling duration for solution of practical problems of powder metallurgy.

• Periodical: Solid State Phenomena (Volume 316)
• Pages: 187-192
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.316.187
• Online since: April 2021
• Authors: Ivan N. Egorov*, Svetlana I. Egorova, G.F. Lemeshko
• Keywords: Magnetic Effect, Magneto Fluidized Bed, Mechanical Milling, Particle Size Distribution, Scanning Electron Microscopy, Strontium Hexa-Ferrite, X-Ray Diffraction

References

[1] W.A. Kaczmarek, B.W. Ninham, Surfactant-assisted ball milling of BaFe12O19 ferrite dispersion, Mat. Chem and Phys. 40 (1995) 21-29.

DOI: 10.1016/0254-0584(94)01450-u

[2] A. Goldman, Modern Ferrite Technology, second ed., Springer, Pittsburg, (2006).

[3] L.M. Letyuk, V.G. Kostyushin, A.V. Gonchar, Technology of ferrite materials in magnetoelectronics, MISIS, Moscow, (2005).

[4] I.N. Egorov, S.I. Egorova, Effect of Electromagnetic Action on Dispersed Composition on Milling Ferromagnetic Materials in a Hammer Mill, Rus. J. of Non-Ferr. Met., 55 (2014) 371-374.

DOI: 10.3103/s1067821214040063

[5] I.N. Egorov, S.I. Egorova, A.G. Kohanyuk, Empirical model of milling in beater mill in magnetofluidized bed, J. Izv. Vuzov, 6 (2014) 48-52 (in Russian).

[6] I.N. Egorov, N.Ya. Egorov, Technological processes intensification in devices with magneto-fluidized bed, MATEC Web of Conf. 132 (2017) 1-4.

DOI: 10.1051/matecconf/201713203001

[7] I.N. Egorov, N.Ya.Egorov, Energy consumption during milling in beater mill in magnetofluidized bed, MNIJ. 50 (2016) 44-47.

[8] F.A. Mohamed, Correlation between the minimum grain size obtainable by ball milling and lattice strain, Mat. Sci. And Eng.:A, 752 (2019) 15-17.

DOI: 10.1016/j.msea.2019.02.049

[9] V.N. Antsiferov, L.M. Letyuk, V.G. Andreev, Problems of powder materials science, Metallurgy, Moscow, 2005 (in Russian).

[10] A. Pragatheeswaran, R. Ravi, S.R. Bakshi, Microstructural and morphological changes during ball milling of copper-silver-graphite flake mixtures, Adv. Powder Tech., 30 (2019) 2759-2767.

DOI: 10.1016/j.apt.2019.08.023

[11] V.G. Andreev, I.I. Kaneva, S.V. Podgornaya, Study of influence of strontium hexaferrite powders milling duration on microstructure and properties of magnets based on them, Mat. of El. Tech., 2 (2010) 43-47.

[12] R.A. Young, The Rietveld Method, Oxford University Press, Oxford, (1993).

[13] PowderCell 2.3 homepage on http://www.ccp14.ac.uk.

[14] S. Vives, E. Gaffet, C. Meunier, X-ray diffraction line profile analysis of iron ball milled powders, Mat. Sci. And Eng.:A, 366 (2004) 229-238.

DOI: 10.1016/s0921-5093(03)00572-0

[15] 1. Lileev, A.S., Yagodkin, Yu. D., Lyubina, Yu. V. et al. Structure and magnetic properties of nanocrystalline alloys based on Nd2Fe14B obtained by various techniques., J. Magn. and Magn. Mater., 258 (2003) 586-589.

DOI: 10.1016/s0304-8853(02)01161-7

[16] J.M. Valverde, Fluidization of fine powders, Springer, Netherlands, (2013).

[17] Yu. M. Vernigorov, I.N. Egorov, S.I. Egorova, The application of a magnetovibrating layer to the milling of ferromagnetic materials, Euro PM2005 Proceedings, 1 (2005) 451-455.

[18] S.V. Ketov, Yu.D. Yagodkin, V.P. Menushenkov, Structure and magnetic properties of strontium ferrite anisotropic powder with nanocrystalline structure, J. Alloys and Compd., 510 (2011) 1065—1068.

DOI: 10.1016/j.jallcom.2010.09.184

[19] I.N. Egorov, S.I. Egorova, V.P. Kryzhanovsky, Particle size distribution and structural state analysis of mechanically milled strontium hexaferrite, Mat. Sci. Forum. 946 (2019) 293-297.

DOI: 10.4028/www.scientific.net/msf.946.293

[20] Yu. D. Yagodkin, S.V. Dobatkin, Application of electron microscopy and X-ray diffraction for definition of structural elements sizes in nanocrystalic materials, J. Mat. Diag. 73 (2007) 38-49.

[21] V. Ya. Bulanov, L.I. Kvarter, T.V. Dolgal, Metallic powders diagnostics, Nauka, Moscow, (1983).

[22] A. Patterson, The Scherrer Formula for X-Ray Particle Size Determination, Phys. Rev., 56 (1939) 978–982.

DOI: 10.1103/physrev.56.978
