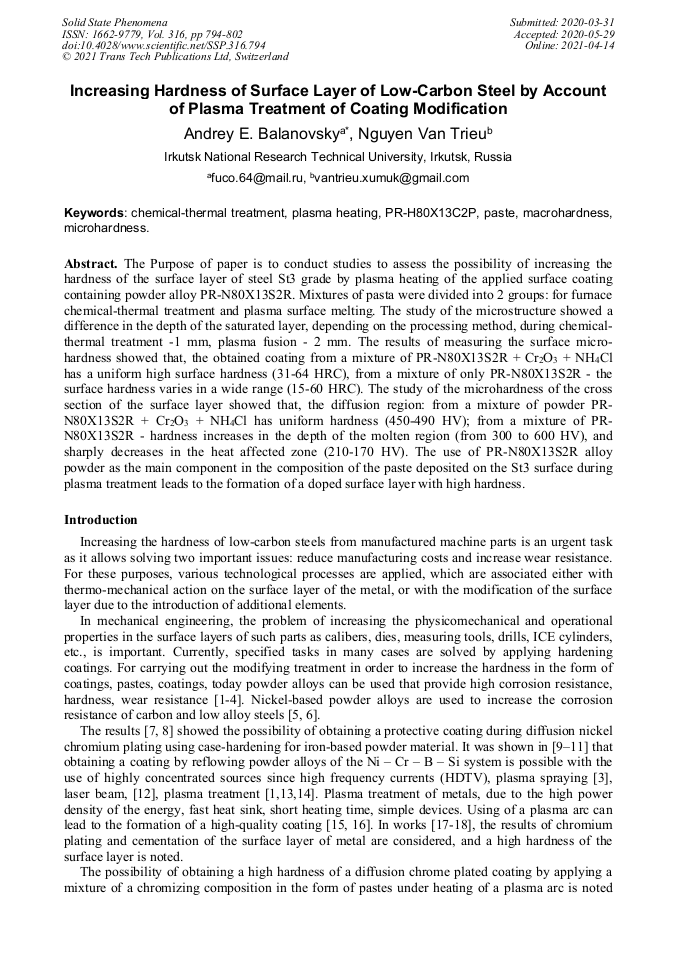

Increasing Hardness of Surface Layer of Low-Carbon Steel by Account of Plasma Treatment of Coating Modification

Abstract:

The Purpose of paper is to conduct studies to assess the possibility of increasing the hardness of the surface layer of steel St3 grade by plasma heating of the applied surface coating containing powder alloy PR-N80X13S2R. Mixtures of pasta were divided into 2 groups: for furnace chemical-thermal treatment and plasma surface melting. The study of the microstructure showed a difference in the depth of the saturated layer, depending on the processing method, during chemical-thermal treatment-1 mm, plasma fusion - 2 mm. The results of measuring the surface micro-hardness showed that, the obtained coating from a mixture of PR-N80X13S2R + Cr₂O₃ + NH₄Cl has a uniform high surface hardness (31-64 HRC), from a mixture of only PR-N80X13S2R - the surface hardness varies in a wide range (15-60 HRC). The study of the microhardness of the cross section of the surface layer showed that, the diffusion region: from a mixture of powder PR-N80X13S2R + Cr₂O₃ + NH₄Cl has uniform hardness (450-490 HV); from a mixture of PR-N80X13S2R - hardness increases in the depth of the molten region (from 300 to 600 HV), and sharply decreases in the heat affected zone (210-170 HV). The use of PR-N80X13S2R alloy powder as the main component in the composition of the paste deposited on the St3 surface during plasma treatment leads to the formation of a doped surface layer with high hardness.

• Periodical: Solid State Phenomena (Volume 316)
• Pages: 794-802
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.316.794
• Online since: April 2021
• Authors: Andrey E. Balanovsky*, Van Trieu Nguyen
• Keywords: Chemical-Thermal Treatment, Macrohardness, Microhardness, Paste, Plasma Heating, PR-Н80Х13С2Р

References

[1] Balanovsky A.E. Plasma surface hardening of metals. Irkutsk: Publishing house of ISTU, 2006. 180 p.

[2] Chudina OV Combined methods of surface hardening of steels using laser heating. Theory and technology. M .: MADI (GTU), 2003. 248 p.

[3] Liang-YuChen,Tian Xiang Xu, ShengLu, Ze-Xin Wang, Shujin Chen, Lai-Chang Zhang. Improved hardness and wear resistance of plasma sprayed nanostructured NiCrBSi coating via short-time heat treatment. // Surface and Coatings Technology. Volume 350, 25. 2018. Pp. 436 – 444.

DOI: 10.1016/j.surfcoat.2018.07.037

[4] Liang-Yu Chen, Haiyang Wang, Cuihua Zhao. Automatic remelting and enhanced mechanical performance of a plasma sprayed NiCrBSi coating. // Surface and Coatings Technology Volume 369, (2019).

DOI: 10.1016/j.surfcoat.2019.04.052

[5] Rachida Rachidi, Bachir El Kihel, Fabienne Delaunois. Microstructure and mechanical characterization of NiCrBSi alloy and NiCrBSi-WC composite coatings produced by flame spraying. // Materials Science and Engineering: B Volume 241, 2019. Pp. 13 – 21.

DOI: 10.1016/j.mseb.2019.02.002

[6] Pout D. Modification and alloying of the surface with laser, ion and electron beams. –M .: Engineering, 1987. 424 p.

[7] Popova N.V. Diffusion chromonickeling of iron-based powder materials using coatings and heating with high-frequency currents (HFC). // In the collection: New problems of technical sciences and ways to solve them of the International scientific and practical conference (November 10, 2016, Perm). - Ufa: AETERNA, 2016 .Pp. 146 – 147.

[8] Popova N.V., Salmin R.A., Chekaldin A.N. The structure and properties of chromium-nickel coatings on iron-carbon powder materials. // In the collection: Innovative technologies in modern science of the International scientific and practical conference (February 1, 2017, Ufa). In 3 hours, Part 3 / - Ufa: AETERNA, 2017 - Pp. 89 – 91.

[9] Popova N.V. The technology of diffusion saturation of chromium and nickel surfaces of powder materials based on iron. // In the collection: Implementation of the results of innovative developments: Problems and prospects of the International scientific and practical conference (November 18, 2016, Ekaterinburg). At 4 h. Part 3 / - Ufa: MTS OMEGA SAYNS, 2016 .pp.148-150.

[10] Jurandir Marcos Sá deSousa, Francisco Ratusznei, Milton Pereira, Richard de Medeiros Castro, Elvys Isaías Mercado Curi. Abrasion resistance of Ni-Cr-B-Si coating deposited by laser cladding process. // Tribology International. Volume 143, 2020. 106002.

DOI: 10.1016/j.triboint.2019.106002

[11] Litvinov A.P. The use of highly concentrated heat sources for the modification of deposited layers. // Bulletin of the Azov Sovereign Technical University. 2009 - pp.156-160.

[12] A.V. Makarov, N.N. Soboleva, I.Yu. Malygina, E.V. Kharanzhevskiy. Improving the properties of a rapidly crystallized NiCrBSi laser clad coating by high-temperature processing. // Journal of Crystal Growth 525 2019. 125200.

DOI: 10.1016/j.jcrysgro.2019.125200

[13] Ling Tang, Jia-jie Kang, Peng-fei He. Effects of spraying conditions on the microstructure and properties of NiCrBSi coatings prepared by internal rotating plasma spraying. // Surface & Coatings Technology. 2019. № 374. p.625–633.

DOI: 10.1016/j.surfcoat.2019.06.056

[14] Jiangwei Liu, Yan Wang, Hu Li. Numerical and experimental analysis of thermal and mechanical behavior of NiCrBSi coatings during the plasma spray process. // Journal of Materials Processing Tech.. № 249. 2017. Pp. 471 – 478.

DOI: 10.1016/j.jmatprotec.2017.06.025

[15] Grechneva M.V. A brief analysis of the results of work in the field of plasma surface hardening of steels and alloys. // Bulletin of ISTU. 21, № 5 2017 / Proceedings of ISTU Vol. 21, № 5. 2017. Pp. 10 – 23.

DOI: 10.21285/1814-3520-2017-5-10-23

[16] Balanovskii A. E., Grechneva M. V., Vu Van Huy, Zhuravlev D. A. New plasma carburizing method. //IOP Conf. Ser.: Earth Environ. Sci. 87 092003. (2017).

DOI: 10.1088/1755-1315/87/9/092003

[17] Balanovsky A.E., Huy V.V. Plasma surface cementation using graphite coating // Letters on materials. Vol. 7. № 2 (26). 2017 - Pp. 175 – 179.

[18] Balanovsky A.E., Wu V.G. Evaluation of the wear resistance of the steel surface after plasma cementation under abrasive wear // Friction and wear. 2018.Vol. 39. № 4. pp.391-399.

DOI: 10.3103/s1068366618040025

[19] Li C. L., Zhao H. Matsumura X. M. Corrosion properties of materials coated with Cr2O3/NiCr and with Cr2O3+NiCr functionally gradient materials. // Materials and Corrosion 51. 2000 – Pp. 502 – 510.

DOI: 10.1002/1521-4176(200007)51:7<502::aid-maco502>3.0.co;2-3

[20] D. Ahmadkhaniha, F. Mahboubi. Effects of plasma nitriding on properties of electroless Ni-B coating. // Surf. Eng. 28. 2012 - Pр.195 – 198.

DOI: 10.1179/1743294411y.0000000058

[21] Ali Ghasemi, Majid Pouranvari. Intermetallic phase formation during brazing of a nickel alloy using a Ni–Cr–Si–Fe–B quinary filler alloy. // Science and Technology of Welding and Joining. 2018. Pp. 1 – 10.

DOI: 10.1080/13621718.2018.1553280

[22] Yong-xin Zhou, Jie Zhang, Zhi-guo Xing, Hai-dou Wang, Zhen-lin Lv. Microstructure and properties of NiCrBSi coating by plasma cladding on gray cast iron. // Surface & Coatings Technology 361 (2019) Pp. 270 – 279.

DOI: 10.1016/j.surfcoat.2018.12.055

[23] Liang-Yu Chen,Tian xiang Xu, ShengLu, Ze-Xin Wang, Shujin Chen, Lai-Chang Zhang. Automatic remelting and enhanced mechanical performance of a plasma sprayed NiCrBSi coating. // Surface and Coatings Technology. Volume 369. 2019. Pp. 31 – 43.

DOI: 10.1016/j.surfcoat.2019.04.052
