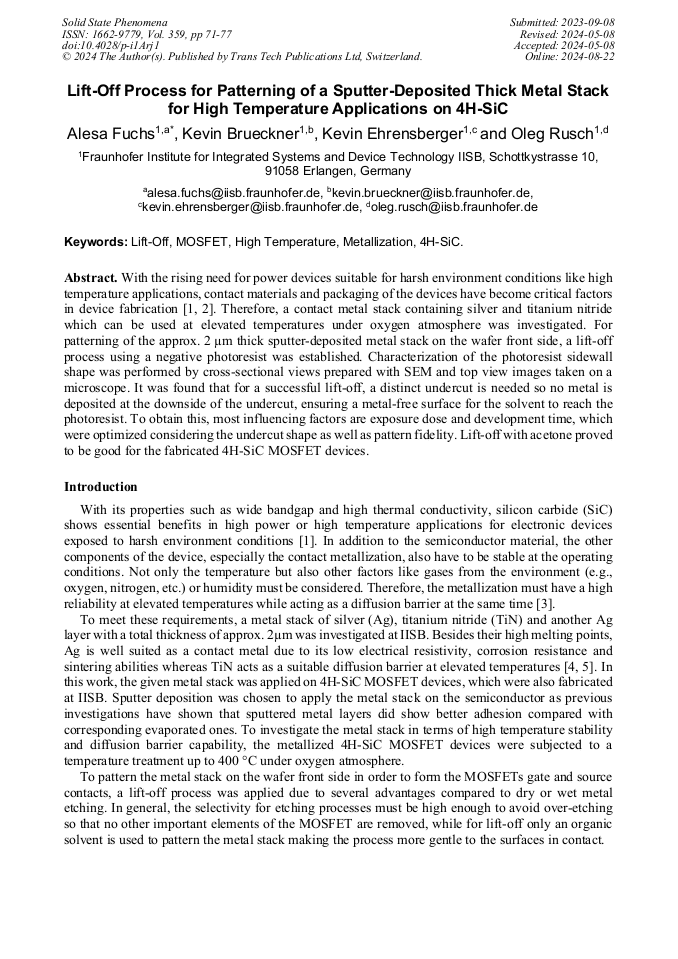

Lift-Off Process for Patterning of a Sputter-Deposited Thick Metal Stack for High Temperature Applications on 4H-SiC

Abstract:

With the rising need for power devices suitable for harsh environment conditions like high temperature applications, contact materials and packaging of the devices have become critical factors in device fabrication [1, 2]. Therefore, a contact metal stack containing silver and titanium nitride which can be used at elevated temperatures under oxygen atmosphere was investigated. For patterning of the approx. 2 µm thick sputter-deposited metal stack on the wafer front side, a lift-off process using a negative photoresist was established. Characterization of the photoresist sidewall shape was performed by cross-sectional views prepared with SEM and top view images taken on a microscope. It was found that for a successful lift-off, a distinct undercut is needed so no metal is deposited at the downside of the undercut, ensuring a metal-free surface for the solvent to reach the photoresist. To obtain this, most influencing factors are exposure dose and development time, which were optimized considering the undercut shape as well as pattern fidelity. Lift-off with acetone proved to be good for the fabricated 4H-SiC MOSFET devices.

• Periodical: Solid State Phenomena (Volume 359)
• Pages: 71-77
• DOI: https://doi.org/10.4028/p-i1Arj1
• Online since: August 2024
• Authors: Alesa Fuchs*, Kevin Brueckner, Kevin Ehrensberger, Oleg Rusch
• Keywords: 4H-SiC, High Temperature, Lift-Off, Metallization, MOSFET

References

[1] Z. Chen, Y. Yao, M. Danilovic, D. Boroyevich, in: 2012 15th International Power Electronics and Motion Control Conference (EPE/PEMC), IEEE, 2012 - 2012, DS1a.8-1-DS1a.8-9.

DOI: 10.1109/epepemc.2012.6397198

[2] B. Bayer, M. Groccia, H.L. Bach, C. Friedrich Bayer, A. Schletz, C. Lenz, S. Ziesche, in: 2020 IEEE 8th Electronics System-Integration Technology Conference (ESTC), IEEE, 2020 - 2020, p.1–5.

DOI: 10.1109/estc48849.2020.9229859

[3] D.J. Spry, D. Lukco, A Bondable Metallization Stack That Prevents Diffusion of Oxygen and Gold into Monolithically Integrated Circuits Operating Above 500°C, Journal of Elec Materi 41 (2012) 915–920.

DOI: 10.1007/s11664-011-1792-9

[4] T.-S. Choi, D.W. Hess, Chemical Etching and Patterning of Copper, Silver and Gold Films at Low Temperatures // Chemical Etching and Patterning of Copper, Silver, and Gold Films at Low Temperatures, ECS J. Solid State Sci. Technol. 4 (2015) N3084-N3093.

DOI: 10.1149/2.0111501jss

[5] I. Suni, M. Mäenpää, M.-A. Nicolet, M. Luomajärvi, Thermal Stability of Hafnium and Titanium Nitride Diffusion Barriers in Multilayer Contacts to Silicon, J. Electrochem. Soc. 130 (1983) 1215–1218.

DOI: 10.1149/1.2119920

[6] H. Ito, K. Hasegawa, T. Matsuki, S. Kusumoto, Development of Lift-Off Photoresist with unique Bottom Profile // Development of Lift-off Photoresists with Unique Bottom Profile, Transactions of The Japan Institute of Electronics Packaging 8 (2015) 62–67.

DOI: 10.5104/jiepeng.8.62

[7] Information on https://www.microchemicals.com/micro/tds_az_lnr-003-photoresist.pdf.

[8] G. Russ, Electrical Characteristics of Contacts Contaminated with Silver Sulfide Film, IEEE Trans. Parts, Mater, Packag. 6 (1970) 129–137.

DOI: 10.1109/tpmp.1970.1136268

[9] H.R. Philipp, E.A. Taft, Optical Constants of Silicon in the Region 1 to 10 ev, Phys. Rev. 120 (1960) 37–38.

DOI: 10.1103/physrev.120.37

[10] S. Zollner, J.G. Chen, E. Duda, T. Wetteroth, S.R. Wilson, J.N. Hilfiker, Dielectric functions of bulk 4H and 6H SiC and // Dielectric functions of bulk 4H and 6H SiC and spectroscopic ellipsometry studies of thin SiC films on Si, Journal of Applied Physics 85 (1999) 8353–8361.

DOI: 10.1063/1.370682
