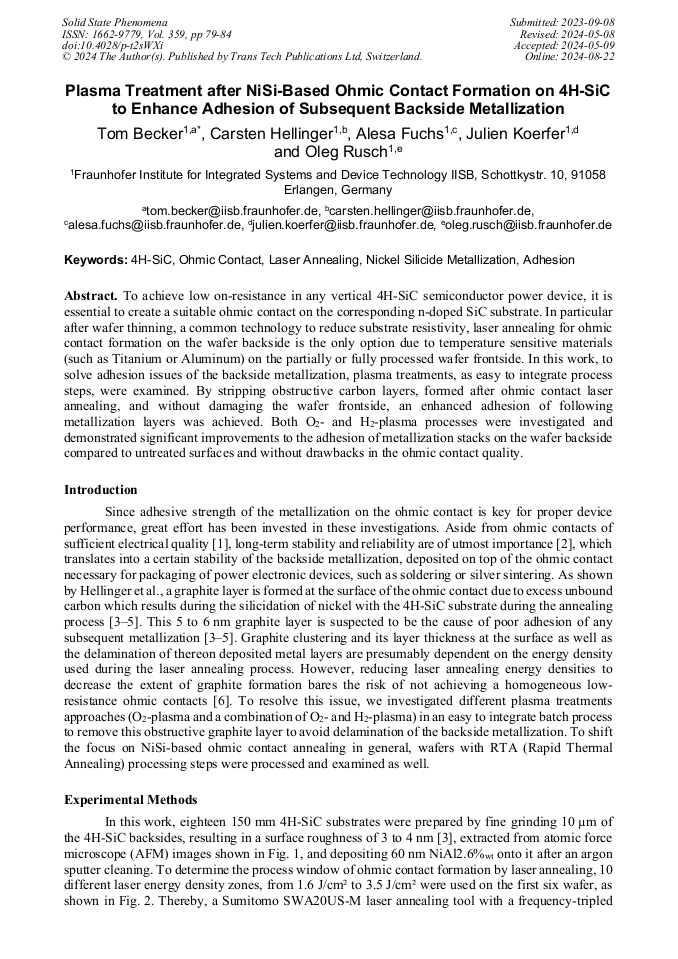

Plasma Treatment after NiSi-Based Ohmic Contact Formation on 4H-SiC to Enhance Adhesion of Subsequent Backside Metallization

Abstract:

To achieve low on-resistance in any vertical 4H-SiC semiconductor power device, it is essential to create a suitable ohmic contact on the corresponding n-doped SiC substrate. In particular after wafer thinning, a common technology to reduce substrate resistivity, laser annealing for ohmic contact formation on the wafer backside is the only option due to temperature sensitive materials (such as Titanium or Aluminum) on the partially or fully processed wafer frontside. In this work, to solve adhesion issues of the backside metallization, plasma treatments, as easy to integrate process steps, were examined. By stripping obstructive carbon layers, formed after ohmic contact laser annealing, and without damaging the wafer frontside, an enhanced adhesion of following metallization layers was achieved. Both O₂- and H₂-plasma processes were investigated and demonstrated significant improvements to the adhesion of metallization stacks on the wafer backside compared to untreated surfaces and without drawbacks in the ohmic contact quality.

• Periodical: Solid State Phenomena (Volume 359)
• Pages: 79-84
• DOI: https://doi.org/10.4028/p-t2sWXi
• Online since: August 2024
• Authors: Tom Becker*, Carsten Hellinger, Alesa Fuchs, Julien Koerfer, Oleg Rusch
• Keywords: 4H-SiC, Adhesion, Laser Annealing, Nickel Silicide Metallization, Ohmic Contact

References

[1] F. Roccaforte, F. La Via, V. Raineri, Ohmic Contacs to SiC, Int. J. Hi. Spe. Ele. Syst. 15 (2005) 781–820.

DOI: 10.1142/s0129156405003429

[2] T. Kimoto, J.A. Cooper, Fundamentals of silicon carbide technology: Growth, characterization, devices and applications, Wiley, Singapore, 2014.

[3] C. Hellinger, Empirisches Modell zur Bildung von nickelbasierten Ohmkontakten auf n-Typ 4H-SiC durch Laserbearbeitung. Doctoralthesis, 2023.

[4] C. Hellinger, et al., Empirical model of backside low-ohmic nickel contact formation on n-type 4H-SiC, submitted to Material Science Forum 2024 (2023).

[5] C. Hellinger, et al., Laser annealing induced formation of low-ohmic nickel contacts on n-type 4H-SiC by surface roughness dependent laser fluence optimization, submitted to Material Science Forum 2024 (2023).

[6] G. Li, M. Xu, D. Zou, Y. Cui, Y. Zhong, P. Cui, K.Y. Cheong et al., Fabrication of Ohmic Contact on N-Type SiC by Laser Annealed Process: A Review, Crystals 13 (2023) 1106.

DOI: 10.3390/cryst13071106

[7] A. May, et al., A 4H-SiC CMOS Technology enabling Sensor and Circuit Operation above 500 °C, submitted to IEEE Sensors 2023 (2023).
