Process Influences on Plastificate and Fiber Microstructure Formation: An LFT-D Compression Molding Parameter Study

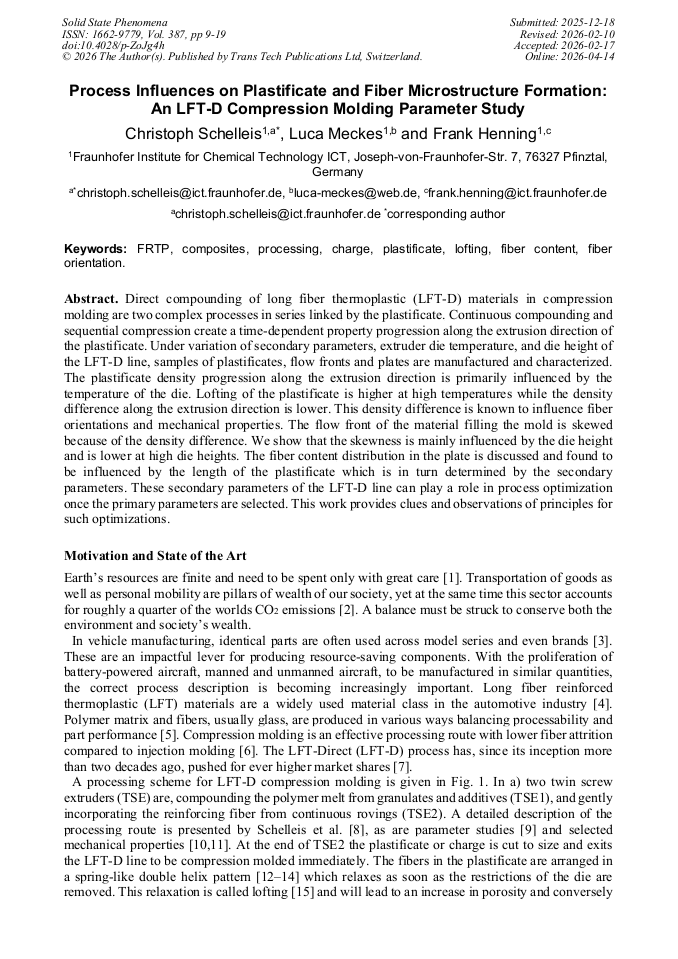

Article Preview

View Pdf By email

Abstract:

Direct compounding of long fiber thermoplastic (LFT-D) materials in compression molding are two complex processes in series linked by the plastificate. Continuous compounding and sequential compression create a time-dependent property progression along the extrusion direction of the plastificate. Under variation of secondary parameters, extruder die temperature, and die height of the LFT-D line, samples of plastificates, flow fronts and plates are manufactured and characterized. The plastificate density progression along the extrusion direction is primarily influenced by the temperature of the die. Lofting of the plastificate is higher at high temperatures while the density difference along the extrusion direction is lower. This density difference is known to influence fiber orientations and mechanical properties. The flow front of the material filling the mold is skewed because of the density difference. We show that the skewness is mainly influenced by the die height and is lower at high die heights. The fiber content distribution in the plate is discussed and found to be influenced by the length of the plastificate which is in turn determined by the secondary parameters. These secondary parameters of the LFT-D line can play a role in process optimization once the primary parameters are selected. This work provides clues and observations of principles for such optimizations.

You have full access to the following eBook

Composites Forming Processes

Info:

Periodical:

Solid State Phenomena (Volume 387)

Pages:

9-19

DOI:

https://doi.org/10.4028/p-ZoJg4h

Citation:

Cite this paper

Online since:

April 2026

Authors:

Christoph Schelleis*, Luca Meckes, Frank Henning

Keywords:

Charge, Composite, Fiber Content, Fiber Orientation, FRTP, Lofting, Plastificate, Processing

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

[1] M. Wackernagel, N.B. Schulz, D. Deumling, A.C. Linares, M. Jenkins, V. Kapos, C. Monfreda, J. Loh, N. Myers, R. Norgaard, J. Randers, Tracking the ecological overshoot of the human economy, Proc. Natl. Acad. Sci. U. S. A. 99 (2002) 9266–9271.

DOI: 10.1073/pnas.142033699

[2] F. Henning, E. Moeller, Handbuch Leichtbau: Methoden, Werkstoffe, Fertigung, second Edition, Hanser, München, Wien, 2020.

DOI: 10.3139/9783446459847.fm

[3] A. Kampker, H.H. Heimes, Elektromobilität: Grundlagen einer Fortschrittstechnologie, third Edition, Springer Vieweg, Berlin, Heidelberg, 2024.

DOI: 10.1007/978-3-662-65812-3

[4] M. Schemme, LFT – development status and perspectives, Reinforced Plastics 52 (2008) 32–39.

DOI: 10.1016/S0034-3617(08)70036-5

[5] F. Henning, H. Ernst, R. Brüssel, LFTs for automotive applications, Reinforced Plastics 49 (2005) 24–33.

DOI: 10.1016/s0034-3617(05)00546-1

[6] T.A. Osswald, G. Menges, Materials science of polymers for engineers, third Edition, Hanser, Munich, Germany, 2012.

[7] E. Witten, V. Mathes, The European Market for Fibre-Reinforced Plastics and Composites 2022: Market developments, trends, challenges and outlook, AVK Market Report (2023).

[8] C. Schelleis, B.M. Scheuring, W.V. Liebig, A.N. Hrymak, F. Henning, Approaching Polycarbonate as an LFT-D Material: Processing and Mechanical Properties, Polymers (Basel) 15 (2023) 2041–2065.

DOI: 10.3390/polym15092041

[9] C. Schelleis, A. Hrymak, F. Henning, Optimizing processing parameters for glass fiber reinforced polycarbonate LFT-D composites, in: Proceedings of the SAMPE Europe Conference, Madrid, Spain, 2023.

[10] C. Schelleis, F. Henning, A. Hrymak, Comprehensive material development of glass fiber reinforced polyamide 6 LFT-D, in: Proceedings of ITHEC, Bremen, Germany, 2024, p.94–97.

[11] C. Schelleis, B.M. Scheuring, A. Hrymak, F. Henning, Study on mechanical characteristics of glass fiber-reinforced polycarbonate LFT-D for codico structures, in: Proceedings of the 23rd ICCM, Belfast, UK, 2023.

DOI: 10.3390/polym15092041

[12] K. Brast, Verarbeitung von langfaserverstärkten Thermoplasten im direkten Plastifizier-/ Pressverfahren. Dissertation (in german), Aachen, Germany, 2001.

[13] L. Schreyer, J. Blarr, K. Höger, N. Meyer, L. Kärger, Generation of Initial Fiber Orientation States for Long Fiber Reinforced Thermoplastic Compression Molding Simulation, in: Proceedings of the 20th ECCM, Lausanne, Switzerland, 2022.

[14] C. Perez, T. Osswald, S. Goris, Study on the fiber properties of a LFT strand, in: Proceedings of the 13th Annual SPE ACCE, Novi, MI, USA, 2013, p.1115–1126.

[15] F. Truckenmüller, H.-G. Fritz, Injection molding of long fiber‐reinforced thermoplastics: A comparison of extruded and pultruded materials with direct addition of roving strands, Polymer Engineering & Science 31 (1991) 1316–1329.

DOI: 10.1002/pen.760311806

[16] J. Blarr, Development of Computational, Image Processing and Deep Learning Methods for the Microstructure Characterization of Carbon Fiber Reinforced Polyamide 6 Based on CT Images, Karlsruher Institut für Technologie (KIT), 2024.

[17] B.M. Scheuring, N. Christ, J. Blarr, W.V. Liebig, J. Hohe, J. Montesano, K.A. Weidenmann, Experimental and homogenized orientation-dependent properties of hybrid long fiber-reinforced thermoplastics, International Journal of Mechanical Sciences 280 (2024) 109470–109488.

DOI: 10.1016/j.ijmecsci.2024.109470

[18] F. Henning, Verfahrensentwicklung für lang- und endlosglasfaserverstärkte thermoplastische Sandwich-Bauteile mit geschlossenem Werkstoff-Kreislauf. Dissertation (in german), Fraunhofer-IRB-Verl., Stuttgart, Germany, 2001.

[19] U.N. Gandhi, S. Goris, T.A. Osswald, Y.-Y. Song, Discontinuous Fiber-Reinforced Composites: Fundamentals and applications, Hanser Publishers, Munich, Germany, 2020.

DOI: 10.3139/9781569906958.fm

[20] C. Schelleis, L. Meckes, F. Henning, Fiber migration in compression molded LFT-D materials: characterization proposal and first results, in: Material Forming: ESAFORM 2025, Paestum, Italy, Materials Research Forum LLC, 2025, p.468–477.

DOI: 10.21741/9781644903599-51

[21] S. Goris, T.A. Osswald, Process-induced fiber matrix separation in long fiber-reinforced thermoplastics, Composites Part A: Applied Science and Manufacturing 105 (2018) 321–333.

DOI: 10.1016/j.compositesa.2017.11.024

[22] T. Osswald, Understanding Polymer Processing: Processes and Governing Equations, Hanser, Munich, Germany, 2018.

[23] B.M. Scheuring, Effect of hybridization in CoDico-FRTPs: Orientation-dependent characterization and analytical modeling in various climatic conditions. Dissertation, Karlsruhe, Germany, 2024.

[24] F. Garesci, S. Fliegener, Young's modulus prediction of long fiber reinforced thermoplastics, Composites Science and Technology 85 (2013) 142–147.

DOI: 10.1016/j.compscitech.2013.06.009

[25] J. Blarr, T. Sabiston, C. Krauß, J.K. Bauer, W.V. Liebig, K. Inal, K.A. Weidenmann, Implementation and comparison of algebraic and machine learning based tensor interpolation methods applied to fiber orientation tensor fields obtained from CT images, Computational Materials Science 228 (2023) 112286.

DOI: 10.1016/j.commatsci.2023.112286

[26] C. Schelleis, B.M. Scheuring, L. Schreyer, W.V. Liebig, A. Hrymak, L. Kärger, K.A. Weidenmann, F. Henning, Process-induced skewness of flow fronts and fiber orientations in LFT-D compression molding considering processing, characterization, and simulation, Journal of Thermoplastic Composite Materials 38 (2025) 2922–2944.

DOI: 10.1177/08927057251344252

[27] C.S. Schelleis, Characterization of Process Influences on Microstructure and Mechanical Properties of Long Glass Fiber Reinforced Polyamide 6 Plates in Compounding and Compression Molding. Dissertation, Karlsruher Institut für Technologie (KIT), Karlsruhe, Germany, 2025.

[28] F. Folgar, C.L. Tucker, Orientation Behavior of Fibers in Concentrated Suspensions, Journal of Reinforced Plastics and Composites 3 (1984) 98–119.

DOI: 10.1177/073168448400300201

[29] S. Tröster, Materialentwicklung und -charakterisierung für thermoplastische Faserverbundwerkstoffe im Direktverfahren. Dissertation (in german), Fraunhofer-IRB-Verl., Stuttgart, Germany, 2004.

[30] S. Löwe, Charakterisierung des Plastifikates an der Schnittstelle zwischen Compounding und Fließpressen langfaserverstärkter thermoplastischer Formmassen. Bachelor Thesis (in german), Karlsruhe, Germany, 2022.

[31] L. Meckes, Charakterisierung des LFT-D Plastifikates: Methodenentwicklung und Ermittlung der Prozesszusammenhänge mit Fokus auf die Dichteeigenschaften. Master Thesis (in german), Fraunhofer Society, Karlsruhe, Germany, 2024.
