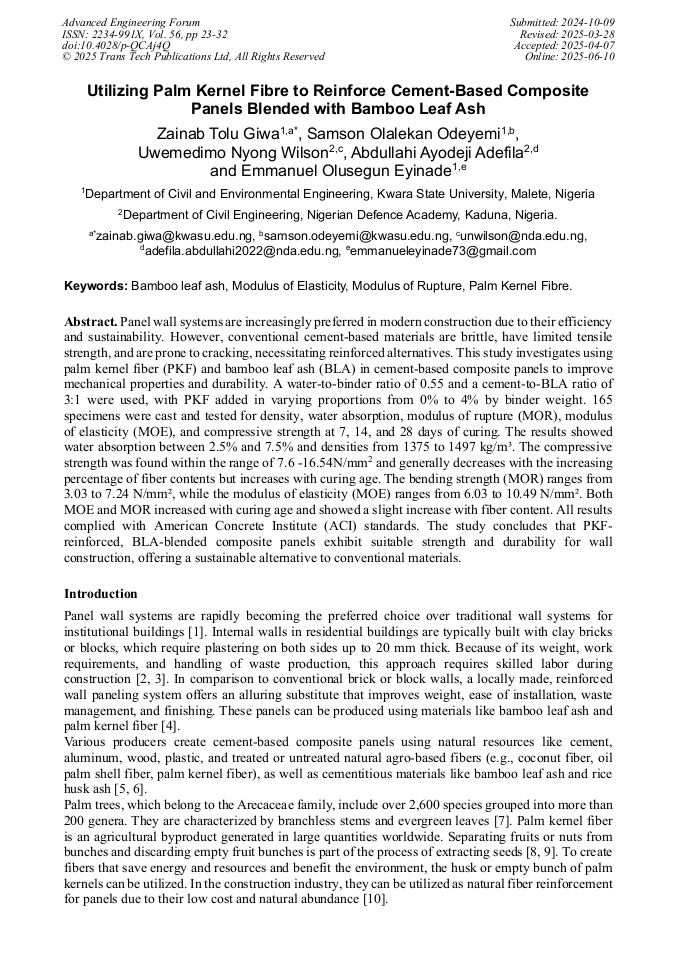

Utilizing Palm Kernel Fibre to Reinforce Cement-Based Composite Panels Blended with Bamboo Leaf Ash

Abstract:

Panel wall systems are increasingly preferred in modern construction due to their efficiency and sustainability. However, conventional cement-based materials are brittle, have limited tensile strength, and are prone to cracking, necessitating reinforced alternatives. This study investigates using palm kernel fiber (PKF) and bamboo leaf ash (BLA) in cement-based composite panels to improve mechanical properties and durability. A water-to-binder ratio of 0.55 and a cement-to-BLA ratio of 3:1 were used, with PKF added in varying proportions from 0% to 4% by binder weight. 165 specimens were cast and tested for density, water absorption, modulus of rupture (MOR), modulus of elasticity (MOE), and compressive strength at 7, 14, and 28 days of curing. The results showed water absorption between 2.5% and 7.5% and densities from 1375 to 1497 kg/m³. The compressive strength was found within the range of 7.6 -16.54N/mm² and generally decreases with the increasing percentage of fiber contents but increases with curing age. The bending strength (MOR) ranges from 3.03 to 7.24 N/mm², while the modulus of elasticity (MOE) ranges from 6.03 to 10.49 N/mm². Both MOE and MOR increased with curing age and showed a slight increase with fiber content. All results complied with American Concrete Institute (ACI) standards. The study concludes that PKF-reinforced, BLA-blended composite panels exhibit suitable strength and durability for wall construction, offering a sustainable alternative to conventional materials.

• Periodical: Advanced Engineering Forum (Volume 56)
• Pages: 23-32
• DOI: https://doi.org/10.4028/p-QCAj4Q
• Online since: June 2025
• Authors: Zainab Tolu Giwa*, Samson Olalekan Odeyemi, Uwemedimo Nyong Wilson, Abdullahi Ayodeji Adefila, Emmanuel Olusegun Eyinade
• Keywords: Bamboo Leaf Ash, Modulus of Elasticity, Modulus of Rupture, Palm Kernel Fibre

References

[1] Y. M. D. Adedeji, "Housing Economy: Use of Interlocking Masonry for Low-Cost Student Housing in Nigeria," Journal of Construction Project Management and Innovation, vol. 1, no. 1, (2011) p.46–62.

[2] S. O. Odeyemi, M. O. Adisa, A. P. Olaoye, O. D. Atoyebi, U. N. Wilson, and O. T. Odeyemi, "Effect of groundnut (Arachis hypogaea) shell ash on the properties of periwinkle shell, sawdust and cement-bonded particle boards," Innovative Infrastructure Solutions, vol. 8, no. 5, (2023).

DOI: 10.1007/s41062-023-01104-x

[3] O. D. Atoyebi, O. J. Aladegboye, and F. O. Fatoki, "Physico-Mechanical Properties of Particle Board made from Coconut Shell, Coconut Husk and Palm Kernel Shell," IOP Conf Ser Mater Sci Eng, vol. 1107, no. 1, (2021), pp.1-9.

DOI: 10.1088/1757-899x/1107/1/012131

[4] A. O. Familusi, K. A. Mujedu, B. E. Adewumi, and D. W. Dauda, "Application of Bamboo and Coconut Fibres as Reinforcements in Concrete: A Typical Way of Converting Environmental Waste to Wealth," vol. 3, no. 16, (2018) p.111–116. [Online]. Available: www.repcomseet.com

[5] A. Bono, S. M. Anisuzzaman, N. M. Ismail, and R. Haziami, "Performance of particleboard with palm kernel cake as filler," in Developments in Sustainable Chemical and Bioprocess Technology, Springer US, (2013) p.337–345.

DOI: 10.1007/978-1-4614-6208-8_40

[6] Munish and S. Mehta, "Experimental investigation of Bamboo Leaf Ash and Rice Husk Ash as partial replacement cement in concrete," in IOP Conference Series: Earth and Environmental Science, Institute of Physics, (2024).

DOI: 10.1088/1755-1315/1327/1/012007

[7] B. F. Yousif, "Effect of oil palm fibres volume fraction on mechanical properties of polyester composites," Int J Mod Phys B, vol. 24, no. 23, (2010) p.4459–4470.

DOI: 10.1142/S0217979210056633

[8] E. Baffour-Awuah, S. A. Akinlabi, T. C. Jen, S. Hassan, I. P. Okokpujie, and F. Ishola, "Characteristics of Palm Kernel Shell and Palm Kernel Shell-Polymer Composites: A Review," IOP Conf Ser Mater Sci Eng, vol. 1107, no. 1, (2021).

DOI: 10.1088/1757-899x/1107/1/012090

[9] S. O. Odeyemi, M. A. Adisa, and O. D. Atoyebi, "Properties of Coconut and Palm Kernel Fibres-Reinforced Concrete: A Review, (2024), pp.57-64. [Online]. Available: https://www.researchgate.net/publication/382511948

[10] O. Obiukwu, I. Opara, and H. Udeani, "Study on the Mechanical Properties of Palm Kernel Fibre Reinforced Epoxy and Poly-Vinyl Alcohol (PVA) Composite Material," International Journal of Engineering and Technologies, vol. 7, (2016), p.68–77.

DOI: 10.18052/www.scipress.com/ijet.7.68

[11] S. Babatunde, O. Olanrewaju, J. Abass, and K. O. Olusola, "Effect of Open Air Burnt Bamboo Leaf Ash Blended Cement Concrete," IOSR Journal of Mechanical and Civil Engineering (IOSR-JMCE) e-ISSN, vol. 18, no. 5, (2022), p.49–57.

[12] V. N. Dwivedi, N. P. Singh, S. S. Das, and N. B. Singh, "A new pozzolanic material for cement industry: Bamboo leaf ash," (2006). [Online]. Available: http://www.academicjournals.org/IJPS

[13] A. A. Umoh and U. M. Jonah, "Use of coconut fiber as reinforcement in bamboo leaf ash blended cement- based composite panels," Jordan Journal of Civil Engineering, vol. 9, no. 4, (2015), p.435–444.

DOI: 10.14525/jjce.9.4.3116

[14] S. O. Odeyemi et al., "Mechanical properties and microstructure of High-Performance Concrete with bamboo leaf ash as an additive," Clean Eng Technol, vol. 6, (2022), pp.1-6.

DOI: 10.1016/j.clet.2021.100352

[15] K. Amambey, C. K. Kankam, V. K. Akortia, E. C. Mansal, J. K. Quarm Junior, and S. Asiamah, "Article no.JMSRR.109782 Original Research Article Amambey et al," (2023). [Online]. Available: https://www.sdiarticle5.com/review-history/109782

[16] B. F. Akinbile and W. A. Jayeola, "Pozzolan Reactivity, Mineralogy and Morphology of Bamboo Leaf Ash (Bla) and Palm Fruit Fibre Ash (PFFA) Blended Concrete," ANNALS of Faculty Engineering Hunedoara – International Journal of Engineering, (2023), p.67–76.

[17] O. Onikeku, S. M. Shitote, J. Mwero, and Adeola. A. Adedeji, "Evaluation of Characteristics of Concrete Mixed with Bamboo Leaf Ash," The Open Construction & Building Technology Journal, vol. 13, no. 1, (2019), p.67–80.

DOI: 10.2174/1874836801913010067

[18] K. Amambey, C. K. Kankam, V. K. Akortia, E. C. Mansal, J. K. Quarm Junior, and S. Asiamah, "Article no.JMSRR.109782 Original Research Article Amambey et al," 2023. [Online]. Available: https://www.researchgate.net/publication/377107683

[19] NIS 444-1, Standard for Ordinary Portland Cement, (2003).

[20] BS EN 12390-7, "BSI,  - Testing hardened concrete – Part 7: Density of hardened concrete, British Standards Institution, London, UK, British Standards Institution, (2019).

[21] ASTM C642-13, "Standard Test Method for Density, Absorption, and Voids in Hardened Concrete. ASTM International, West Conshohocken, PA.," (2013).

[22] "BS EN12390-4, British Standard Testing Hardened Concrete (Part 4) - Compression strength: Specification of test machines, UK, (2009).

[23] BS EN 12390–5, "Testing hardened concrete—Part 5: flexural strength of test specimens. BSI Standard Publication," (2019).

[24] BS EN 12390–13, Testing hardened concrete—Part 13: determination of secant modulus of elasticity in compression, (2013).

DOI: 10.3403/30259410

[25] IS 14276, "Indian standard cement bonded particle boards specification, Bureau of Indian Standards (BIS) division, New delhi," (1995).

[26] ISO 8335, "Cement bonded particle board: Board of portland or equivalent cement reinforced with fibrous wood particles, International Organization for Standardization, Stockham.," (1987).

[27] S. O. Odeyemi, R. Abdulwahab, A. G. Adeniyi, and O. D. Atoyebi, "Physical and mechanical properties of cement-bonded particle board produced from African balsam tree (Populous Balsamifera) and periwinkle shell residues," Results in Engineering, vol. 6, (2020), pp.1-12.

DOI: 10.1016/j.rineng.2020.100126

[28] NIS87: "Nigeria Industrial Standard: Standard for Sandcrete Blocks. Standard Organization of Nigeria. Lagos, Nigeria" (2007).
