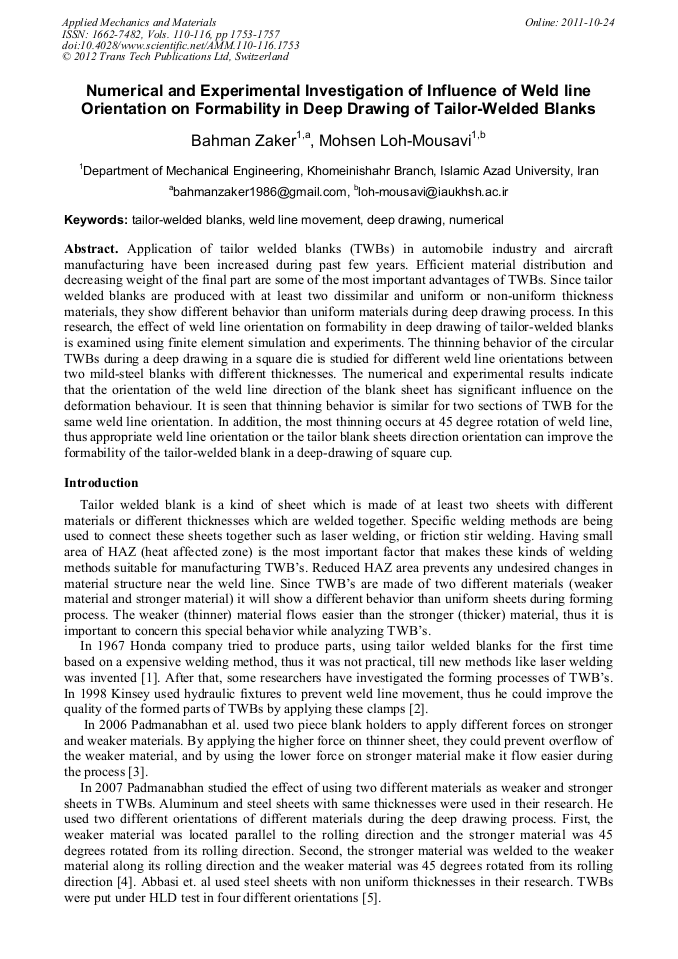

Numerical and Experimental Investigation of Influence of Weld Line Orientation on Formability in Deep Drawing of Tailor-Welded Blanks

Abstract:

Application of tailor welded blanks (TWBs) in automobile industry and aircraft manufacturing have been increased during past few years. Efficient material distribution and decreasing weight of the final part are some of the most important advantages of TWBs. Since tailor welded blanks are produced with at least two dissimilar and uniform or non-uniform thickness materials, they show different behavior than uniform materials during deep drawing process. In this research, the effect of weld line orientation on formability in deep drawing of tailor-welded blanks is examined using finite element simulation and experiments. The thinning behavior of the circular TWBs during a deep drawing in a square die is studied for different weld line orientations between two mild-steel blanks with different thicknesses. The numerical and experimental results indicate that the orientation of the weld line direction of the blank sheet has significant influence on the deformation behaviour. It is seen that thinning behavior is similar for two sections of TWB for the same weld line orientation. In addition, the most thinning occurs at 45 degree rotation of weld line, thus appropriate weld line orientation or the tailor blank sheets direction orientation can improve the formability of the tailor-welded blank in a deep-drawing of square cup.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 1753-1757
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.1753
• Online since: October 2011
• Authors: Bahman Zaker, Mohsen Loh Mousavi
• Keywords: Deep Drawing, Numerical, Tailor Welded Blanks, Weld Line Movement

References

[1] B. Rooks: Tailor-welded blanks bring multiple benefits to car design. Assembly Automation, Vol. 21(4) (2001), pp.323-328.

DOI: 10.1108/eum0000000006014

[2] Brad. Kinsey: A novel forming technology for tailor-welded blanks. Journal of Materials processing technology, Vol. 99 (2000), pp.145-153.

DOI: 10.1016/s0924-0136(99)00412-4

[3] R. Padmanabehan: Deep drawing of aluminum-steel tailor welded blanks. Materials & Design, Vol. 29(2008), pp.154-160.

DOI: 10.1016/j.matdes.2006.11.007

[4] R. Padmanabehan: Effect of anisotropy on the deep-drawing of mild steel and dual-phase steel tailor welded blanks. Journal of Materials processing Technology, Vol. 184(2007), pp.288-293.

DOI: 10.1016/j.jmatprotec.2006.11.051

[5] M. Abbasi: Investigation into Formability of Tailor Welded Blank Consisted of IF steel Sheets with Different Thicknesses-Experimental and simulation. Steel research int, Vol. 81(2010), No. 9.
