The Effects of Annealing Treatment Temperatures on Mechanical Performance of Aluminum-Coated Magnesium Composite plates

Jin Wei Wang; Xianquan Jiang; Jie Li

doi:10.4028/www.scientific.net/AMM.320.345

Paper Titles

The Study of Co-Doped NbC / Cr₃C₂ on the Application of Ultrafine WC-10%Co Cemented Carbides
p.320

Synchrotron-Radiation X-Ray Topography of the Rapid Grown KDP Crystals
p.325

The Annealing Effect on Optical Properties of Silver Copper Alloy Films
p.329

Development on Preparation of Silicon Steel Strip by Near-Net Shape Technology
p.336

The Effects of Annealing Treatment Temperatures on Mechanical Performance of Aluminum-Coated Magnesium Composite plates
p.345

Preparation and Properties of La-TZM Alloy Plates
p.350

Thermoelectric Power of Carbon Fiber Reinforced Cement Composites Enhanced by Ca₃Co₄O₉
p.354

Study on EPDM/Boron Mud Composites
p.358

Alumina Nano-Wires and Nano-Belts Fabricated by an Effective Chemical Etching of PAA Template
p.363

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 320The Effects of Annealing Treatment Temperatures on...

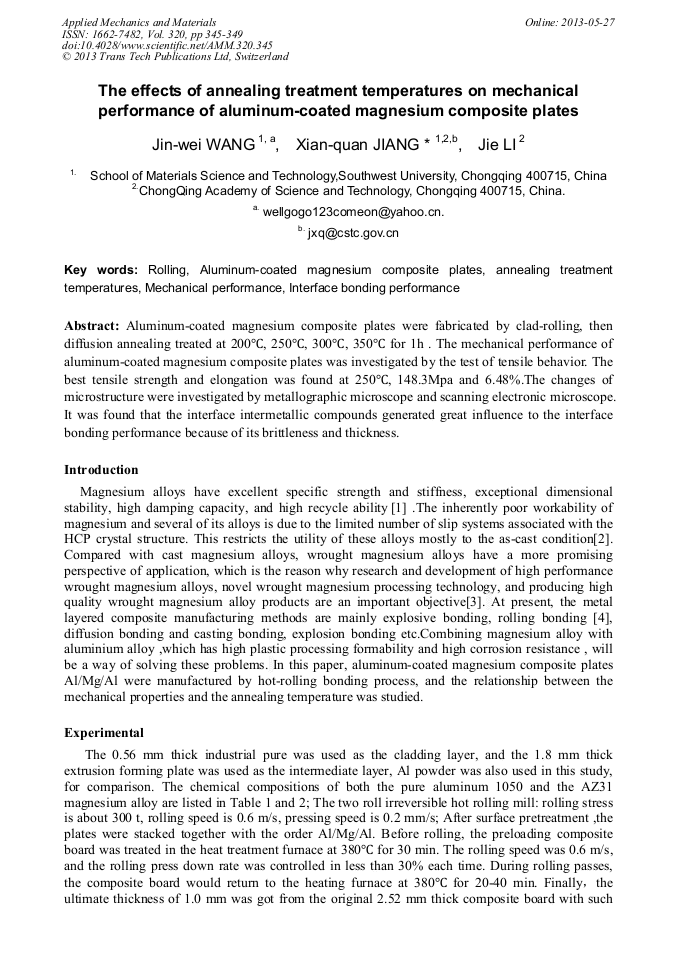

The Effects of Annealing Treatment Temperatures on Mechanical Performance of Aluminum-Coated Magnesium Composite plates

Abstract:

Aluminum-coated magnesiumcomposite plates were fabricated by clad-rolling, then diffusion annealingtreated at 200°C, 250°C, 300°C, 350°C for 1h . The mechanicalperformance of aluminum-coated magnesium composite plates was investigated bythe test of tensile behavior. The best tensile strength and elongation wasfound at 250°C, 148.3Mpa and 6.48%.The changesof microstructure were investigated by metallographic microscope and scanningelectronic microscope. It was found that theinterface intermetallic compounds generated great influence to the interface bondingperformance because of its brittleness andthickness.

You might also be interested in these eBooks

China Functional Materials Technology and Industry Forum

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 320)

Pages:

345-349

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.320.345

Citation:

Cite this paper

Online since:

May 2013

Authors:

Jin Wei Wang, Xianquan Jiang, Jie Li

Keywords:

Rolling , Aluminum-Coated Magnesium Composite Plates, Annealing Treatment Temperatures, Interface Bonding Performance, Mechanical Performance

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] LEE S, Y. H. Chen and J. Y. Wang.: Journal of Material Processing Technology, Vol.124(2002) p.19−24.

Google Scholar

[2] S. ANBU SELVAN, S. RAMANATHAN: Trans. Nonferrous Met. Soc. China Vol.21(2011),p.257−264.

Google Scholar

[3] Z. Yang, J.P.Li, J.X. Zhang, G.W. Lorimer and J.Robson: Acta Metall. Sin (Engl. Lett.) Vol.21(2008) No.5, pp.313-328.

Google Scholar

[4] M.C. Chen H.C. Hsieh and Weite Wu:Journal of Alloys and Compounds, Vol. 416 (2006),p.169–172.

Google Scholar

[5] M.C. Chen H.C. Hsieh and Weite Wu:Metals and Materials International, Vol. 13(2007) No. 3, pp.201-205.

Google Scholar

[6] Y.K. Hao J.Y. Xiao: High Performance Composite Materials (Chemical Industry Press, China 2004). (In Chinese)

Google Scholar

[7] B.Q.Hu,J.C. Niu: Advanced Composite Materials (National Defence Industry Press, China 2006). (In Chinese)

Google Scholar

[8] P.Zhao, F.Z. Xie and Z.G. Sun: Material Science Basic Course (Harbin Industrial University Press, China 2003). (In Chinese)

Google Scholar

[9] Z.Y. Liu:Study on clad-rolling of aluminum-coated magnesium composite plate and its properties of interface (MS.,Southwest University, China 2009). (In Chinese)

Google Scholar

[10] G.L.Xu,G.Q. Chen and W.L. Zhou: Material engineering, Vol.2(2011),p.69. (In Chinese)

Google Scholar

[11] Y. B.Zhang Q.J. Wang: Material Development and Application, Vol. 24(2009) No.6,P.72. (In Chinese)

Google Scholar
