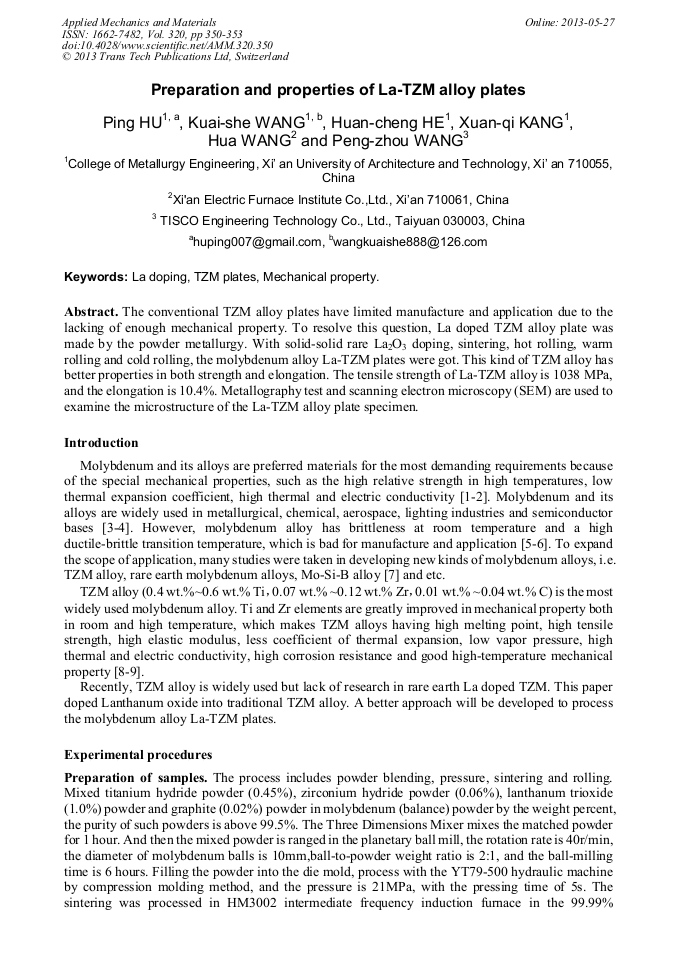

Preparation and Properties of La-TZM Alloy Plates

Abstract:

The conventional TZM alloy plates have limited manufacture and application due to the lacking of enough mechanical property. To resolve this question, La doped TZM alloy plate was made by the powder metallurgy. With solid-solid rare La₂O₃ doping, sintering, hot rolling, warm rolling and cold rolling, the molybdenum alloy La-TZM plates were got. This kind of TZM alloy has better properties in both strength and elongation. The tensile strength of La-TZM alloy is 1038 MPa, and the elongation is 10.4%. Metallography test and scanning electron microscopy (SEM) are used to examine the microstructure of the La-TZM alloy plate specimen.

• Periodical: Applied Mechanics and Materials (Volume 320)
• Pages: 350-353
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.320.350
• Online since: May 2013
• Authors: Ping Hu, Kuai She Wang, Huan Cheng He, Xuan Qi Kang, Hua Wang, Peng Zhou Wang
• Keywords: La Doping, Mechanical Property, TZM Plates

References

[1] Hiroaki Kurishita, Yuji Kitsunai, Tamaki Shibayama, Hideo Kayano and Yutaka Hiraoka: Journal of Nuclear Materials, Vol. 223-227 (1996), pp.557-564.

DOI: 10.1016/s0022-3115(96)00333-9

[2] E. Ahmadi, M. Malekzadeh and S.K. Sadrnezhaad: Journal of Refractory Metal and Hard Materials, Vol. 29 (2011), pp.141-145.

[3] S.P. Chakraborty, S. Banerjee, Kulwant Singh, I.G. Sharma, A.K. Grover and A.K. Suri: Journal of Materials Processing Technology, Vol. 207 (2008), pp.240-247.

[4] I.G. Sharma, S.P. Chakraborty and A.K. Suri: Journal of Alloys and Compounds, Vol. 393 (2005), pp.122-127

[5] H.J Shi, L.S Niu, C. Korn and G. Pluvinage: Journal of Nuclear Materials, Vol. 278 (2000), pp.328-333

[6] B.V. Cockeram : Materials Science and Engineering, Vol. 418 (2006), pp.120-136.

[7] Pascal Jéhanno, Martin Heilmaier, Holger Saage, Hartmut Heyse, Mike Böning, Heinrich Kestler and Joachim H. Schneibel: Scripta Materialia, Vol.55 (2006) , pp.525-528.

DOI: 10.1016/j.scriptamat.2006.05.033

[8] T. Mrotzek, A. Hoffmann and U. Martin:Refractory Metals & Hard Metals, Vol.24 (2006), pp.298-305.

DOI: 10.1016/j.ijrmhm.2005.10.003

[9] R. Kopp : Metal Powder Report, Vol.57 (2002) , p.30.

[10] L. Wang, J. Sun, G. Liu, Y. J. Sun and G.J. Zhang: International Journal of Refractory Metals and Hard Materials, Vol.29 (2011) , p.522–527.

[11] G.J. Zhang, X.H. Lin, R.H. Wang, G. Liu and J. Sun: International Journal of Refractory Metals and Hard Materials, Vol.29 (2011) , p.608–613.

[12] G. Filacchioni, E. Casagrande, U. De Angelis, G. De Santis and D. Ferrara : Journal of Nuclear Materials, Vol.307–311 (2002), p.705–709.

DOI: 10.1016/s0022-3115(02)01191-1
