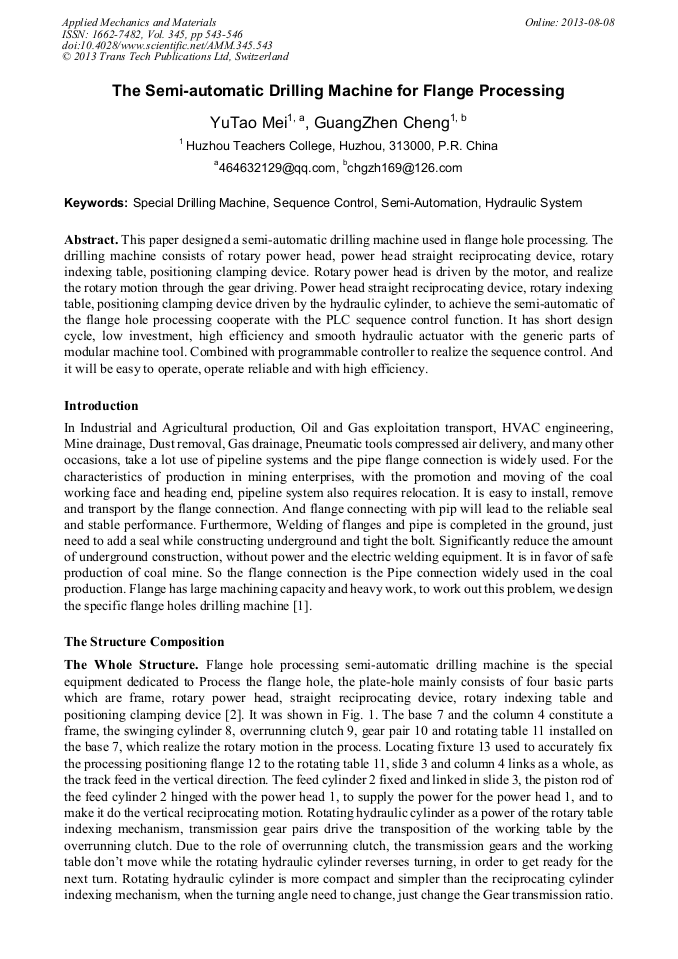

The Semi-Automatic Drilling Machine for Flange Processing

Abstract:

This paper designed a semi-automatic drilling machine used in flange hole processing. The drilling machine consists of rotary power head, power head straight reciprocating device, rotary indexing table, positioning clamping device. Rotary power head is driven by the motor, and realize the rotary motion through the gear driving. Power head straight reciprocating device, rotary indexing table, positioning clamping device driven by the hydraulic cylinder, to achieve the semi-automatic of the flange hole processing cooperate with the PLC sequence control function. It has short design cycle, low investment, high efficiency and smooth hydraulic actuator with the generic parts of modular machine tool. Combined with programmable controller to realize the sequence control. And it will be easy to operate, operate reliable and with high efficiency.
