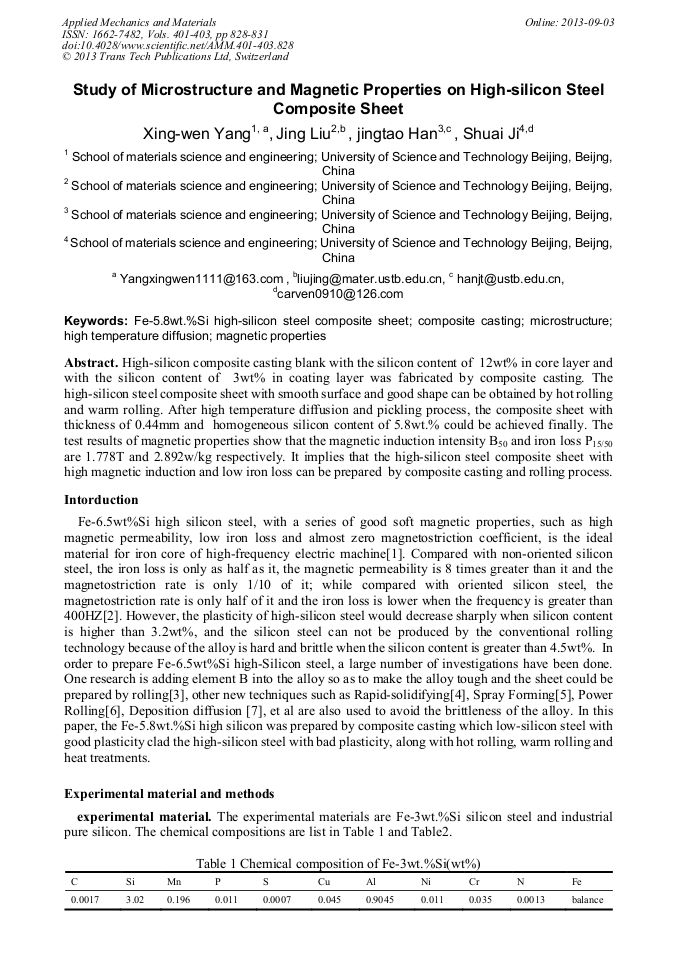

Study of Microstructure and Magnetic Properties on High-Silicon Steel Composite Sheet

Abstract:

High-silicon composite casting blank with the silicon content of 12wt% in core layer and with the silicon content of 3wt% in coating layer was fabricated by composite casting. The high-silicon steel composite sheet with smooth surface and good shape can be obtained by hot rolling and warm rolling. After high temperature diffusion and pickling process, the composite sheet with thickness of 0.44mm and homogeneous silicon content of 5.8wt.% could be achieved finally. The test results of magnetic properties show that the magnetic induction intensity B₅₀ and iron loss P_15/50 are 1.778T and 2.892w/kg respectively. It implies that the high-silicon steel composite sheet with high magnetic induction and low iron loss can be prepared by composite casting and rolling process.

• Periodical: Applied Mechanics and Materials (Volumes 401-403)
• Pages: 828-831
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.401-403.828
• Online since: September 2013
• Authors: Xing Wen Yang, Jing Liu, Jing Tao Han, Shuai Ji
• Keywords: Composite Casting, Fe-5.8wt.%Si High-Silicon Steel Composite Sheet, High Temperature Diffusion, Magnetic Property, Microstructure

References

[1] Thant P P Phway，Anthony J Moses. Magnetostriction trend of non-oriented 6. 5%Si-Fe[J]. J Magn Magn Mater，2008, 320(20)：e611.

DOI: 10.1016/j.jmmm.2008.04.074

[2] Takada Y et al. Commercial scale production of Fe-6. 5wt. % Si sheet and its magnetic properties [J]. Appl. Phys, 1988, 64(10): 53.

[3] Liu Yan，Liang Yongfeng, Ye Feng, ea tl. Mechanical and Magnetic Properties of Cold rolled 0. 02C-6. 56Si High Silicon Steel Sheet[J]. Special steel, 2007. 28(3): 28.

[4] Liu Haiming, Peng Changpin, Li Yuguo. Rapidly solidified Fe-6. 5%Si Ribbon[J]. Iron and steel. 1993. 28(7): 56.

[5] Baricco M, Mastrandrea E, Antonione C, et al. Grain growth and texture in rapidly solidified Fe (Si) 6. 5wt% ribbons [J]. Mater Sci Eng A, 1997, 226-228: 1025.

DOI: 10.1016/s0921-5093(97)80101-3

[6] Bolfarini C, et al. Magnetic pro-perties of spray-formed Fe-6. 5%Si and Fe-6. 5%Si-1. 0%Al after rolling and heat treat-ment[J]. J Magn Magn Mater, 2008, 320(20): e653.

DOI: 10.1016/j.jmmm.2008.04.104

[7] Yuan W J, Li J G, Shen Q, et al. A study on magnetic properties of high Si steel obtained through power rolling processing[J]. J Magn Magn Mater, 2008, 320(1-2): 76.

DOI: 10.1016/j.jmmm.2007.05.008

[8] Jiang Shuihe, Mao Weimin, Yang Ping, Ye Feng. Microstructure and Magnetic Properties Evolution in Cold Rolled Fe-6. 5%Si Sheet during Annealing. [J]Proceedings of the Twelfth Chinese electrical steel conference in 2012. 82.
