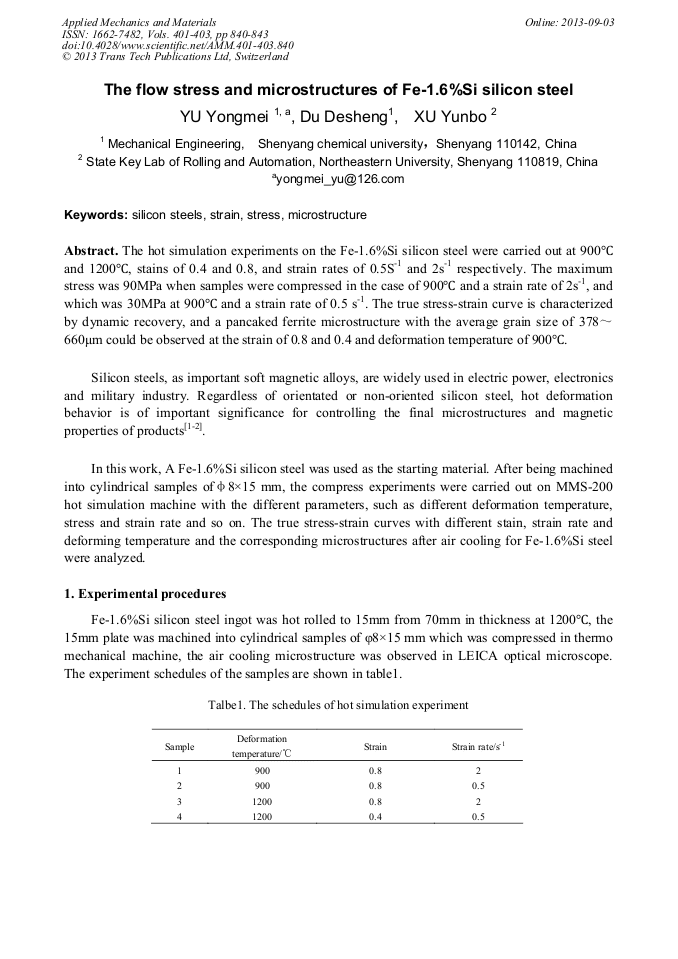

The Flow Stress and Microstructures of Fe-1.6%Si Silicon Steel

Abstract:

The hot simulation experiments on the Fe-1.6%Si silicon steel were carried out at 900°C and 1200°C, stains of 0.4 and 0.8, and strain rates of 0.5S^-1 and 2s^-1 respectively. The maximum stress was 90MPa when samples were compressed in the case of 900°C and a strain rate of 2s^-1, and which was 30MPa at 900°C and a strain rate of 0.5 s^-1. The true stress-strain curve is characterized by dynamic recovery, and a pancaked ferrite microstructure with the average grain size of 378~660μm could be observed at the strain of 0.8 and 0.4 and deformation temperature of 900°C.

• Periodical: Applied Mechanics and Materials (Volumes 401-403)
• Pages: 840-843
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.401-403.840
• Online since: September 2013
• Authors: Yong Mei Yu, De Sheng Du, Yun Bo Xu
• Keywords: Microstructure, Silicon Steels, Strain, Stress

References

[1] Yoshiyuki Ushigamia, Masato Mizokamia, Masahiro Fujikuraa. Recent development of low-loss grain-oriented silicon steel[J]. Journal of Magnetism and Magnetic Materials, 2003, 254–255: 307–314.

DOI: 10.1016/s0304-8853(02)00933-2

[2] Y. Yoshitomi, N. Takahashi ect. Ultrathick glassless high-permeability grain-oriented silicon steel sheets with high workability[J]. Journal of Magnetism and Magnetic Materials, 1996, 160: 123-124.

DOI: 10.1016/0304-8853(96)00133-3

[3] S. akta,G.J. richardson and C.M. sellars, Hot Deformation and Recrystallization of 3% Silicon Steel Part1: Microstructure, Flow Stress and Recrystallization Characteristics[J], ISIJ International, 2005, 45(11): 1666-1675.

DOI: 10.2355/isijinternational.45.1666

[4] B. kowalski, C. M. sellars and M. pietrzyk. Development of a Computer Code for the Interpretation of Resultsof Hot Plane Strain Compression Tests[J]. ISIJ International, 2000, 40(12): 1230–1236.

DOI: 10.2355/isijinternational.40.1230
