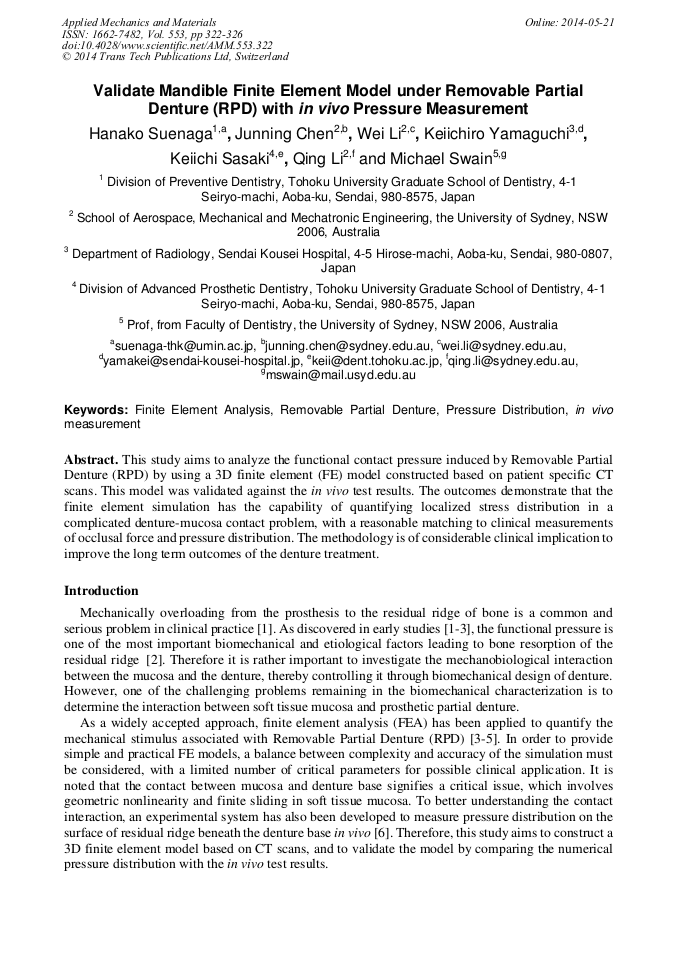

Validate Mandible Finite Element Model under Removable Partial Denture (RPD) with In Vivo Pressure Measurement

Abstract:

This study aims to analyze the functional contact pressure induced by Removable Partial Denture (RPD) by using a 3D finite element (FE) model constructed based on patient specific CT scans. This model was validated against the in vivo test results. The outcomes demonstrate that the finite element simulation has the capability of quantifying localized stress distribution in a complicated denture-mucosa contact problem, with a reasonable matching to clinical measurements of occlusal force and pressure distribution. The methodology is of considerable clinical implication to improve the long term outcomes of the denture treatment.

• Periodical: Applied Mechanics and Materials (Volume 553)
• Pages: 322-326
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.553.322
• Online since: May 2014
• Authors: Hanako Suenaga*, Jun Ning Chen, Wei Li, Keiichiro Yamaguchi, Keiichi Sasaki, Qing Li, Michael V. Swain
• Keywords: Finite Element Analysis (FEA), In Vivo Measurement, Pressure Distribution, Removable Partial Denture

References

[1] Carlsson, G.E., Responses of jawbone to pressure. Gerodontology, 2004. 21(2): pp.65-70.

DOI: 10.1111/j.1741-2358.2004.00005.x

[2] Ahmad, R., et al., Three dimensional quantification of mandibular bone remodeling using standard tessellation language registration based superimposition. Clin Oral Implants Res, 2013. 24(11): pp.1273-1279.

DOI: 10.1111/j.1600-0501.2012.02566.x

[3] Kanbara, R., et al., Three-dimensional finite element stress analysis: the technique and methodology of non-linear property simulation and soft tissue loading behavior for different partial denture designs. Dent Mater J, 2012. 31(2): pp.297-308.

DOI: 10.4012/dmj.2011-165

[4] Wang, H.Y., et al., Effects of rigid and nonrigid extracoronal attachments on supporting tissues in extension base partial removable dental prostheses: a nonlinear finite element study. J Prosthet Dent, 2011. 105(5): pp.338-46.

DOI: 10.1016/s0022-3913(11)60066-8

[5] Verri, F.R., et al., Evaluation of bone insertion level of support teeth in class I mandibular removable partial denture associated with an osseointegrated implant: a study using finite element analysis. Implant Dent, 2011. 20(3): pp.192-201.

DOI: 10.1097/id.0b013e3182166927

[6] Kubo, K., et al., Development of in vivo measuring system of the pressure distribution under the denture base of removable partial denture. J Prosthodont Res, 2009. 53(1): pp.15-21.

DOI: 10.1016/j.jpor.2008.08.006

[7] Isaksson, H., C.C. van Donkelaar, and K. Ito, Sensitivity of tissue differentiation and bone healing predictions to tissue properties. Journal of Biomechanics, 2009. 42(5): pp.555-564.

DOI: 10.1016/j.jbiomech.2009.01.001

[8] Carr, M.E. and S.L. Carr, Fibrin Structure and Concentration Alter Clot Elastic-Modulus but Do Not Alter Platelet-Mediated Force Development. Blood Coagulation & Fibrinolysis, 1995. 6(1): pp.79-86.

DOI: 10.1097/00001721-199502000-00013

[9] Lin, D., et al., Dental implant induced bone remodeling and associated algorithms. Journal of the Mechanical Behavior of Biomedical Materials, 2009. 2(5): pp.410-432.

DOI: 10.1016/j.jmbbm.2008.11.007

[10] Field, C., et al., Prediction of mandibular bone remodelling induced by fixed partial dentures. Journal of Biomechanics, 2010. 43(9): pp.1771-1779.

DOI: 10.1016/j.jbiomech.2010.02.016

[11] Saito, M., et al., Stress distribution of abutments and base displacement with precision attachment- and telescopic crown-retained removable partial dentures. J Oral Rehabil, 2003. 30(5): pp.482-7.

DOI: 10.1046/j.1365-2842.2003.01092.x

[12] Kawasaki, T., et al., Relationship between the stress distribution and the shape of the alveolar residual ridge-three-dimensional behaviour of a lower complete denture. J Oral Rehabil, 2001. 28(10): pp.950-7.

DOI: 10.1046/j.1365-2842.2001.00771.x

[13] Mizuuchi, W., et al., The effects of loading locations and direct retainers on the movements of the abutment tooth and denture base of removable partial dentures. J Med Dent Sci, 2002. 49(1): pp.11-8.
